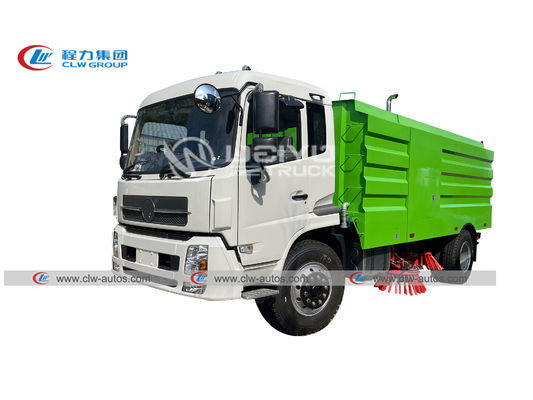

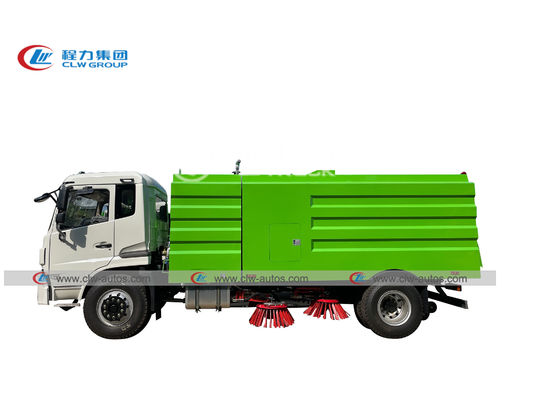

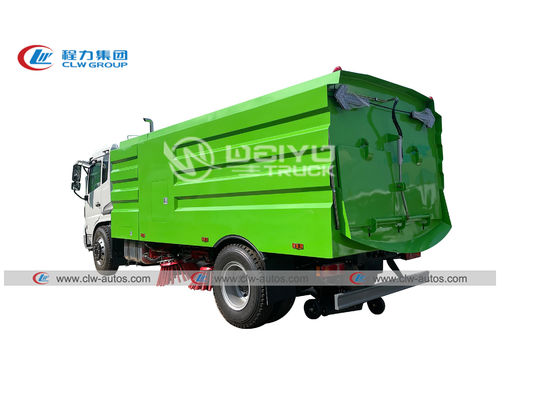

Dongfeng 4X2 8cbm 8m3 Road Sweeper Truck Street Sweeper Street Cleaner Machine For Sale
Product advantages:
1 All function contained in 1 control panel in cabin.
2 It is equipped with hydraulic controlled brush with automatic retreating system in order to avoid collosion.

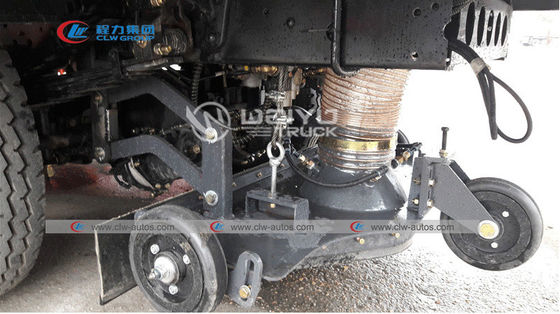

3 It Install floating suction pan to adjust different road height.
4 The garbage bin is made of stainless steel with a filter plate inside.

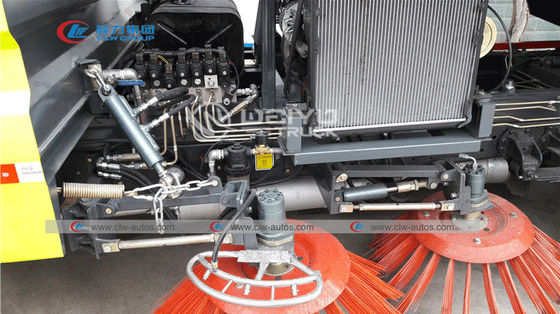

5 The cleaning structure is center 4 brush and rear suction cup.
6 It can be equipped with pre-shooting, post-sprinkling, spraying, self-cleaning reel according to customer's requirements.
Exporting countries:
1. Asia: Nepal, Pakistan, India, Indonesia, Bangladesh
2. South America: Anguilla, Bahamas, Grenada, Guyana, Jamaica, Saint Lucia, Surinam, Trinidad and Tobago
3. Africa: Kenya, Lesotho, Botswana, Mauritius, Seychelles, Mozambique, Namibia
4. South Africa: Uganda, Zambia, Swaziland, Tanzania, Zimbabwe, Somaliland etc.
Road sweeper is a new type of sweeping equipment that integrates road sweeping, garbage recycling and transportation.
It can be widely used for road cleaning of main highways, municipal and airport pavements, urban residential areas, parks and other roads.
| Technical Parameters |
Condition |
New condition/Right hand drive/4x2 |
| Overall Dimension(mm) |
7100×2200×2750 |
| Gross Vehicle Weight(Kg) |
8080 |
| Loading Weight(Kg) |
2180 |
| Curb weight(kg) |
5900 |
| Chassis |
Brand |
Dongfeng |
| Wheelbase(mm) |
3950 mm |
| Axle Load(kg) |
2700/7200 kg |
| Brakes |
Air brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity(pcs) |
6pcs with one spare tire |
| Specifications |
7.50R16 |
| Gear box |
Manual type, 8 Forwards & 1 Reverse |
| Cab |
One and half row seat. With air conditioner. |
| Engine |
Horsepower(HP) |
170 HP |
| Cylinder quantity(pcs) |
4 pcs |
| Upper |
| Tank |
Garbage tank |
Tank material |
Stainless steel |
| Tank volume(cbm) |
5.0 cbm |
| Water tank |
Tank material |
Stainless steel |
| Tank volume(cbm) |
2.5 cbm |
| Auxiliary engine |
Model |
JMC |
| Power(kw) |
87hp |
| Fuel type |
Diesel |
| Sweeping System |
Type |
Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down. |
| Working area(m) |
2.7-3.0 m |
| Cleaning capacity |
40000m2/h |
| Remarks |
1, Rear LED pilot lamp
2, Self unloading box body
3, Rear vacuum cleaner
4, The tank color is optional |
Road sweeper is modified with Dongfeng (wheelbase 3950mm) Euro2 emission standard.
It is equipped with auxiliary engine, fan, clean water tank, garbage can, left and right vertical sweeping, rear suction cup, sweeping disc dust reduction system, hydraulic system, special device electronic control system and sub-frame
It also can add front flushing and rear spraying.
Road sweeper can not only clean the garbage, but also dedust and purify the air medium on the road through the spray dust reducing function while cleaning, which not only ensures the beauty of the road, maintains the sanitation of the environment, and maintains the road surface.
1. Road sweeper is a single sweeper for left and right vertical sweeping, and the front sweeper has automatic avoidance function, which reduce the number of sweeping brushes and the consumption of sweeping brushes in order to reduce using cost.
2. Water spraying device is installed on the brush to spray dust.
3. The left and right vertical sweeps are controlled separately, which can realize different operation modes such as rear sweep and full sweep.
Road sweeper automatically drives the fan, reducing the impact on the engine when the fan starts and stops. It has the advantages of high wear resistance, long service life, low noise, low fuel consumption and cost saving.

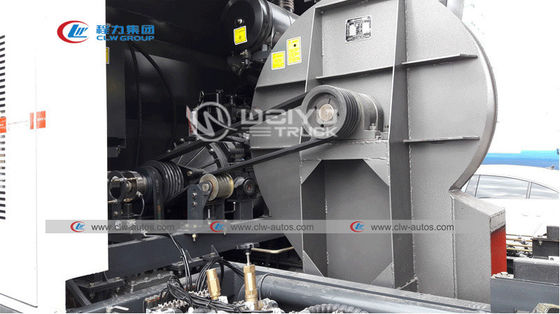

Adopting high-power wear-resistant and maintenance-free centrifugal fan, no noise, high efficiency, large air volume and long service life.
