| Tank Body |
| Effective Volume |
40000+(3%~5%) |
| Material |
Internal Tank |
Shell 5mm steel Q345B ; End 6mm steel Q345B |
| Insulation Interlayer |
Inflaming 150mm thick Rock wool compressed to 100mm around the internal tank |
| Outer Shell |
Covered with stainless steel sheeting. Fastened by stainless steel full circular clamp rings with rubber seal |
| Shell finish |
Internal tank sandblasted to SA 2.5 and painted epoxy zinc phosphate primer (anti-corrosion), then covered by insulation fastened by clapping. Logo design as per customer's requirement |
| Heating Pipeline |
1 set U shape heating pipe by seamless steel inside the tank body, connected to burner |
| Sub-beam |
Standard features of a full length "T" shape sub-frame welded to tank bottom |
| Hydrostatic test |
Pressure Testing - hydrostatic 150kpa each compartment |
| Tank Fittings |

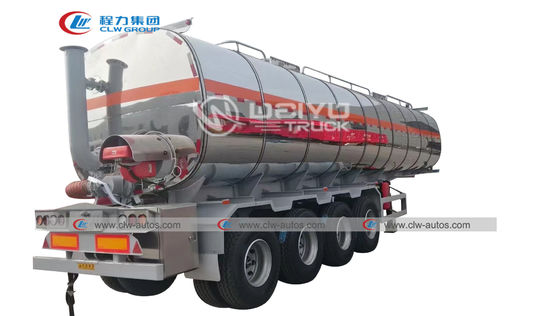

| Burner |
Italian RIELLO with a special fuel tank |
| Manhole cover |
2-off Φ500 easy-open type manhole cover |
| Breather Valve (safety valve) |
2-off aluminum breather valves |
| Discharge valve |
1-off 4'' outlet with 4'' cam-in groove adaptor at rear of tank |
| Temperature Gauge |
2-off measurement range 0ºC~300ºC |
| Interlock system |
1-off, the brake is locked when master switch is pulled |
| Hose and hose carrier box |
1 nos (LHS) and 1 nos (RHS) hose carrier to fit 4" x 6 meter hose close type complete brackets to be installed at discharge side.
Hose with coupling at one end. |
| Running Gear |
| Main Beam |
Submerged-arc welding "I" beam mounted to the tank body |
| Kingpin / plate |
12mm thick high tensile steel skid plate bolts directly to the double web reinforced under frame at front completed with bolted kingpin.
c/w 3.5" kingpin |
| Landing gear |
JOST landing leg. Lifting capacity 28 ton, static capacity 72 ton. |
| Axle |
FUWA 4 axles * 13 tons capacity |
| Suspension |
Mechanical Reinforced Multi Leaf Spring. Suspension frame Mild steel fabricated for heavy duty usage |
| Brake system |
Two line air-brake systems comprising of emergency relay valve, 30/30 spring brake chamber on one axle, air reservoir and contact type couplings. With 4S/2M ABS |
| Tires |
17pcs 315/80R22.5 tubeless tires, TRIANGLE brand, include 1 spare |
| Rims |
17pcs 9.00*22.5 steel tubeless rims, include 2 spare rim |
| Others |
| Walkway |
Anti-skid walkway fitted with carbon steel grating |
| Ladder |
Detachable steel fabricated with steps not more than 300mm, mounted at the front of tank. Clearance between ladder and tanker end not less than 100mm |
| Handrail |
Aluminum manual operated collapsible handrail fixed on the top of tank, 800mm height |
| Tool box |
1 off lockable tool box to be position at passenger side of tanker |
| Side guard |
Side Guard be provided made of steel material on both side of the tanker with guard clearance of 450- 550mm |
| Mudguard |
Whole piece of 2.0 mm minimum steel plates type c/w mud flaps, suppressor and clips |
| Rear bumper |
Steel bumper to accommodate light assembly and number plates to cover full width of the tank. Maximum ground clearance shall be 450mm-550mm and 150mm from near most of tank |
| Extra Fuel Carrier |
1000Liters extra fuel tank attached under tank position |
| Fire extinguisher holder |
2-off x8KGS dry powder fire extinguisher |
| Anti-Static System |
1-off earthing strip to be installed at the rear of tanker.
1-off grounding bonding reel (copper / brass clamp). |
| Light & Wiring |
Standard front, side and rear. Comply with the road regulations and oil industry standard. 24 volt system, 7 wires ISO socket. Red/brake, white/reverse and amber/direction indicator, LED tail lamp
8pcs side marker lamp |
| Reflective tapes & sticker |
Standard or as per customers requirements |
| Reverse alarm |
24V audible reverse beeper |
