30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker

Büyük resim : 30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5096CEG

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 birim/ay

İletişim

Detaylı ürün tanımı

Römork Tankı Kapasitesi:	40m3-61.9m3	Korozyon ödeneği:	1.0mm
Tasarım Sıcaklığı:	-19~50 Derece	Tank malzemesi:	Q345r, Q370r veya SA516gr70 vb.
Aks markası:	BPW, Fuwa, York vb.	Azar ağırlığı:	15650kg
Hidrolik test basıncı:	2.1MPa	Doldurma Faktörü:	420-590kg/M3
Yorulmak:	12R22.5	Isıl İşlem:	Tüm Tank
Hava Sızdırmazlık Testi:	Evet	hidrolik test:	Evet
Yaşam süresi:	20 yıl	Renk ve logo:	Özelleştirilmiş
Garanti:	1 yıl	Malzeme:	Çelik, Q370R, Q345, Q345R,Q370R vb.
Tip:	Yarı Römork, yağ depolu yarı römork, Tam Römork
Vurgulamak:	30ton LP Gas Truck , Q345r LP Gas Truck , BLACKMER Pump Propane Delivery Tanker

30ton LP Gas Trailer With Gas Dispenser BLACKER Pump Propane Delivery Tanker

Product Description:
1. 12990x2500x3990mm overall dimensions
2. 25tonns tank volume with Q345 carbon steel tank material
3. 1.61 design pressure and 2.22 Hydraulic Test pressure
4. JOST outrigger, 3*13T BPW axles
5. lpg accessories: Manhole, Safety Valve, Level Gauge, Emergency Cut-off Valves, Ball Valve,Liquid Gauge,Thermometer, Pressure Gauge

Application range:
-- We can offer lpg bridger truck tanker trailers from 40cbm to 60cbm and from 20tons to 30tons.
-- Manufacturing standards: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
-- Optional accessories: ROCHESTER level gauge, volume and mass flow meter(LC or Neptune brand), sun shelter, lpg pump, lpg dispenser machine, filling hose,
-- Quick in and flange type liquid or vapour phase
-- FUWA, L1, YORK, BPW axles

Product Specification

Item			Parameter
Tank	Volume		59.5 CBM
	GVW		40650KG
	Overall dimensions (mm)		1299025003990
	Curb weight(kg)		15650
	Approach Angle/Angle of departure		-/20 (°)
	Wheel base		7230+1310+1310(mm)
	Tire		12R22.5 12PR
	Axle Number		3
	Type of vessel		The third kind
	Design pressure		1.61MPa
	Design temperature		-19~50ºC
	Filling medium		Liquid petroleum gas (propane)
	Corrosion allowance		1.0mm
	volume		59.5 CBM
	Thermal treatment		The entirety
	Filling factor		420-590kg/CBM
	Material of the tank		Q345R
	Hydraulic test pressure		2.1 MPa
	Cylinder thickness		12mm
	Head thickness		14mm
	Service time		20 years
Liquid level indicator	Type		Float ball level gauge
	Normal pressure		2.5MPa
	Scope of testing		50-2300mm
	Precision		2.5
Safety valve	Model		A42F-2.5-80
	Version		Built-in
	Normal pressure		2.5 M Pa
	Normal diameter		DN80
	Opening pressure		1.68~1.76M Pa
	Re-seating pressure		>=0.8 times of the opening pressure
Loading and unloading system	Normal diameter	Feed pip	DN80
		Drain pip	DN80
		Admission port	DN80
		Sewage outfall port	DN80
		Vent nozzle port	DN80
Standard	GB150 <pressure vessel>TSG R0004-2009 or ASME
Specification	Designed Pressure: 1.77Mpa Filling Ratio: 0.42-0.59 kg/L Working Temperature:-50ºC Corrosion Allowance: 1mm
Standard configuration	13TBPW axle, ABS system, Single out the liquid, Double toolkit, thermometer, pressure gage, JOST king pin, JOST leg, Emergeny cut-off valves, Safety valve, 12 tubeless tire and one spare tire, fire extinguisher, anti-static tape, plastic mudfender.

Reference Photos

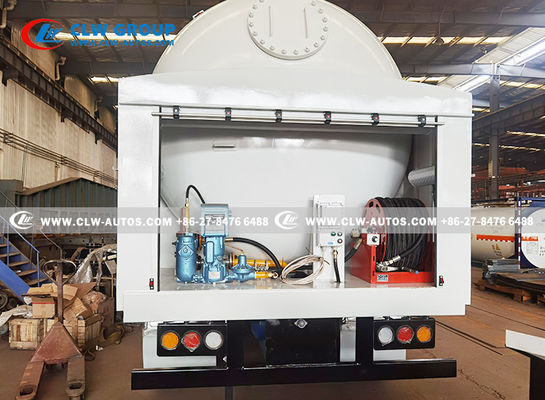

30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker 0

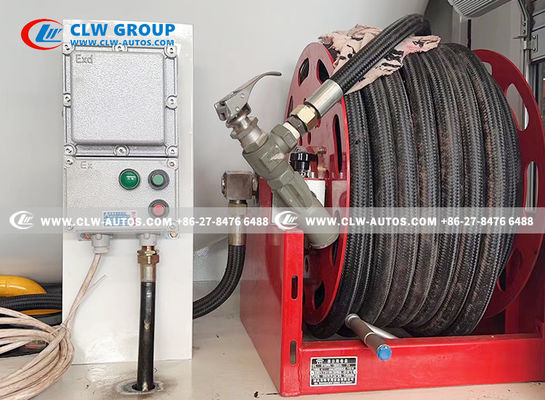

30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker 2

Main Structure Diagram

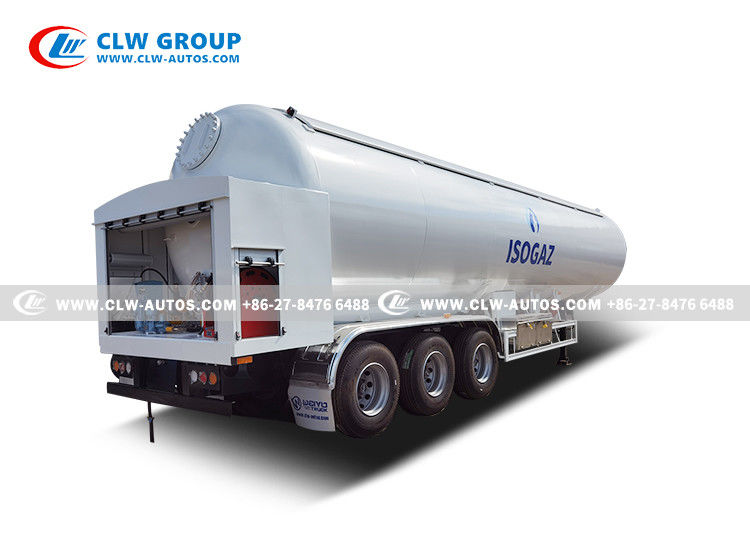

30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker 3

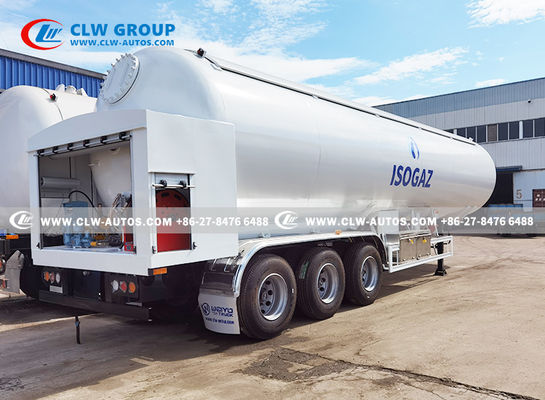

30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker 4

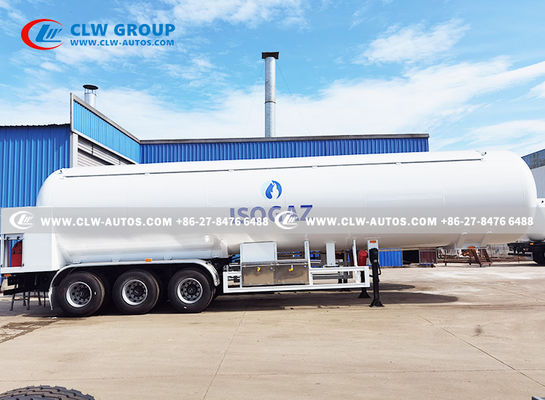

30ton LP Gas Truck With Gas Dispenser BLACKMER Pump Propane Delivery Tanker 5

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
