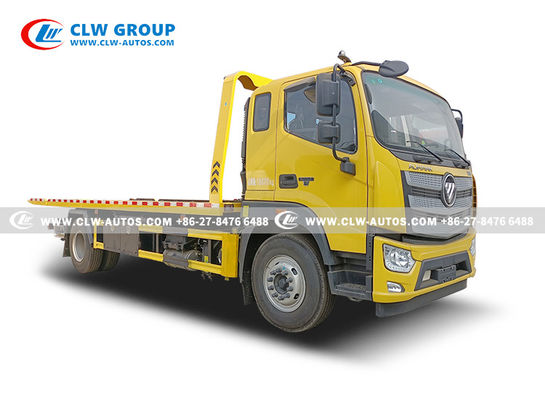

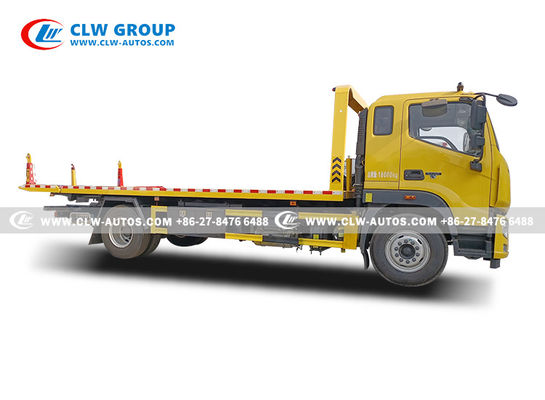

Foton Aumark 6tons Flatbed Towing Tuck For AWD Vehicle Road Side Emergency Assistance
Flatbed Wrecker Towing Truck is mainly used for road fault vehicle, urban peccancy vehicles and rescue, etc and widely used in transporting cars, vans, Suvs, mini vans
Wrecker truck (also called rollback tow truck, towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker,
rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles that are broken down.
Based on the towing way ,, wreckers are usually designed into three types. One is slidebed tow truck with wheel-lift function;
the second one is integrated towing truck , the last type is rotators wrecker truck
Competitive Advantage:
1. Our flatbed wrecker truck is over-built to ensure durability and long-life; this will protect your investment and keep you on the
2. Road longer and hauling more vehicles faster.
3. Owners and fleet operators alike will quickly discover that this light duty carrier is the best value that's available on the market today!
4. Our trucks can be customized by your requirements and we'll build your carrier the way you want it.
1. Road wrecker truck is equipped with lifting and towing device on the basis of special truck chassis.
2. Road wrecker truck has the capacity of lifting, towing, transportation and hoisting.
3. The trucks are easy to control, safe, reliable and have nice appearance.
4. The wrecker truck are widely used on roads, airports, ports and in auto repairing industry or high way Company, which can clean accident vehicles immediately.
5. Towing capacity: 6tons, 6t, 6mt, 6tonnes
Specification for FOTON AUMARK 4x2 6T Road Wrecker Flatbed Tow Truck
| General Technical Parameters |
| Overall Dimension |
8800x2500x2375(mm) |
| Gross Vehicle Weight |
18000kg |
| Curb Weight |
12000kg |
| Chassis Specification |
| Chassis Parameters |
Chassis Brand |
FOTON |
| Cabin |
Single, Left Hand Driving |
| Engine |
Model |
4 Cylinders |
| Power |
170HP |
| Emission Standard |
EURO3 |
| Displacement |
3760ml |
| Fuel Type |
Diesel |
| Gearbox |
6 Forward & 1 Reverse Gear |
| Front and Rear Axle Load |
2.5T/8T |
| Wheel Base |
4700(mm) |
| Brake System |
Air brake |
| Steering Gear |
Power Assistant |
| Tire |
9R22.5, 6 Pieces with 1 Spare Tire |
| Maximum Speed |
90 (km/h) |
| Superstructure |
| Flatbed |
Dimensions |
6800x2550 (mm) |
| Max. Loading Weight |
6000(kg) |
| Operating Stroke |
2700 (mm) |
| Min. Angle of Slope |
8(°) |
| Platform Height from the Ground |
1070(mm) |
| Winch |
Quantity |
1pc |
| Winch Rating Pulling Capacity |
6000 (kg) |
| Length of Steel Cable |
25 (m) |
| Hoisting Organ |
Rating Under-Pulling Capacity |
6000 (kg) |
| Remarks |
1. Equiped with One Set of Auxiliary Wheels
2. Bandages 4pcs
3. Yellow Warning Lamp 1pc
4. Double Side Hydraulic Operation
5. Can Tow 2 Cars |
Detailed pictures
1) Flatbed weighing capacity 6tons, widely used in transporting cars, vans, SUVs, mini vans.
2) Hydraulic control flatbed extend and rollback.
3) Rear carriage arm towing capacity 6 ton, hydraulic control lifting.
6) Rear tail lights LED, both sides electronic lights.
7) 2pcs auxiliary wheels
8) 4pcs bunding belt
Truck Diagram
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.
After Sales Service
Email & Phone call tracking for each truck on timely manners.
Shipment
Land transportation or Ship by bulk cargo ship, container, roro ship
