Sinotruk Howo Municipal Waste Collection 14 CBM 10 Tons Garbage Compactor Truck
Product Description
1.The garbage compactor truck usually called compactor garbage truck, compression garbage truck, refuse compector truck,waste compactor truck,rear loader garbage truck,etc.
2.The garbage compactor truck is an ideal compactor for large clean up operations. It is simple to operate and highly effective with excellent compaction ratio. It is ideally suited to municipal applications where large amounts of mixed industrial and domestic waste is to be collected.
3.Our garbage compactor truck is consisted of four main parts, sealed garbage compartment, hydraulic system, operating system and lifting cylinder.fully sealed It can compact and dump the garbage automatically. Sewage will flow in the compartment completely to avoid re-pollute during transportation.
Technical Specification of Sinotruk Howo 14 CBM 10 Tons Garbage Compactor Truck
| Specification of Truck Chassis |
| Driving Model |
4 X 2 |
| Cab |
- Howo HW76 type cabin with one sleeper(NO sleeper is optional),
- Left Hand Driving,
- with air conditioner
|
| Wheel Base |
4600mm |
| Loading Weight |
7570 kg |
| Curb Weight |
10300 kg |
| Axle Loading (front/rear) |
7000/16,000 kg |
| External Dimensions (L x W x H) |
9180×2500×3300mm |
| Overhang (front/rear) |
1400/2510mm |
| Wheel track (front/rear) |
1876 /1820mm |
| Approach/Departure angle |
17°/ 24° |
| Max. driving speed |
95 km/h |
|
Engine
|
Model |
SINOTRUK Engine WD615.87 |
| Type |
6-cylinders in a line,Water cooled,turbocharged,after cooled , cold start. |
| Horse Power |
290Hp |
| Max output power |
213kW |
| Emission standard |
Euro II |
| Displacement |
9726ml |
| Rated Speed |
2200rpm |
| Min. Fuel consumption at full load |
193≤ g/kw.h |
| Gearbox |
Manual type,HW13710,10 forward gears & 2 reverse |
| Clutch |
Reinforced diaphragm clutch |
| Tire |
295/80R22.5, 6 pieces with 1 spare tire. |
| Garbage Truck Body(6m3) |
| Tanker body material |
Quality high tensile Q345 carbon steel |
| Shape |
rectangular box, arc-shaped rear |
| Thickness |
Side 5mm, Bottom 5mm |
| Garbage Container Size |
14 CBM |
| Filling hopper volume |
1 CBM |
| Left sewage box size |
180 L |
| Sewage box of filling hopper |
300 L |
| Working rotation speed |
1400 r/min |
| Compaction ratio |
0.7-0.85T/m³ |
| Compacting cycle time |
≤35 s |
| Loading cycle time |
≤15 s |
| Unloading cycle time |
≤55 s |
| Oil pump displacement |
63 ml/r |
| Hydraulic oil box size |
120 L |
| System pressure |
16 Mpa |
| PTO operation method |
Pneumatic |
| Operation and Control |
Both Automatic(Electrical) and Manual (hydraulic) |
Feature of our garbage compactor truck
--Easy Full Automatic Operation: computer control system for loading and unloading operations.
--One Person Operation: Reducing sanitation working, greatly improves the working environment.
--Double Operation System: computer control system and manual operation greatly improves the vehicle usage rate.
--Capacity: option for 3-20m3 garbage truck.
--Steering wheel: both left and right hand drive,meet the needs of different countries
--Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5 garbage truck
--Truck chassis: option for japanese and chinese brand,such as dongfeng,faw,foton,howo,jac,jmc,forland...

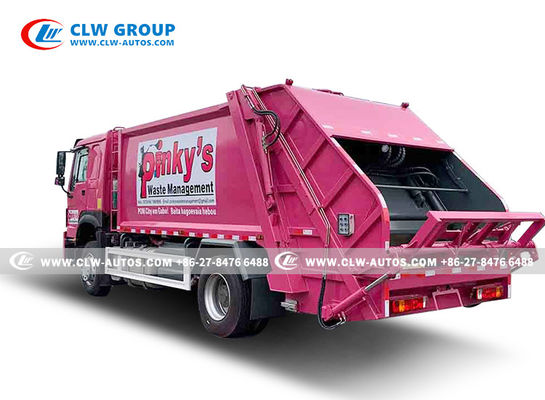

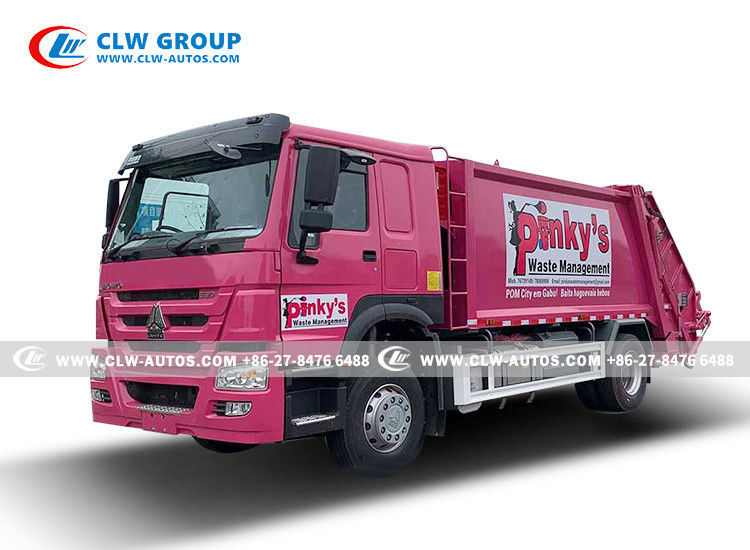

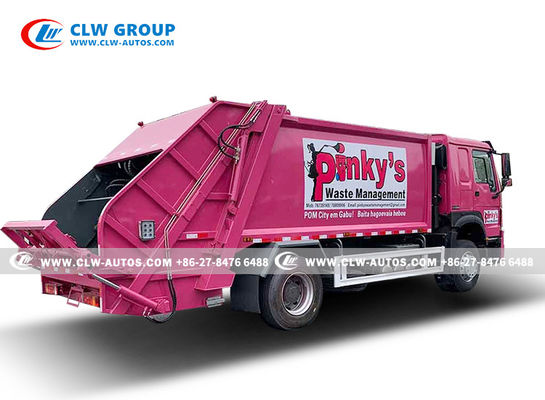

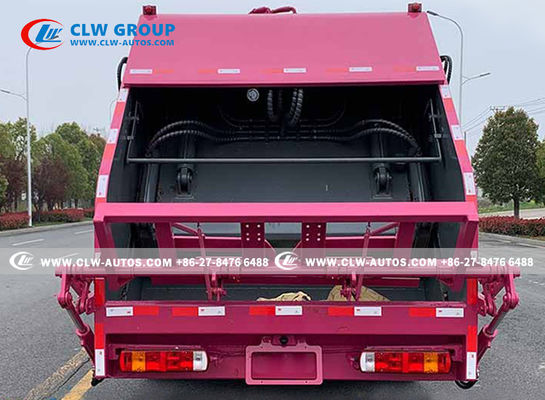

More picture of howo 10 tons garbage truck
Related Garbage Truck Size
8m3 garbage compression truck
Homan 12cbm compression garbage truck
Our advantage
- Certificate: ASME, ISO, BV, SGS, CCC etc.
- More than 30 independents workshops for different types of trucks
- 1000 sets of equipment, 25 assemble lines.
- 300 senior engineers and technicians and about 8000 staffs
- 800kinds of trucks and semi-trailers with various functions
- 20 years wholesale experience
- Turnover 250 million and Export 20million annually
- More than 100,000 trucks and semi-trailers annually.
- Truck Sold to 90 countries
- Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK,FOTON,FAW,BEIBEN,ETC
- We can handle production of bulk order water trucks of tender and government purchase in required time
Service
1.English User Manual
2.English Operation Video to teach new users step by step
3.Online video training whenever needed
4.Spare parts at factory price whenever needed
5.One year warranty for engine, gear box and axle
