Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance

Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance
Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance

Büyük resim :  Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: CCC,ISO,
Model numarası: clwfdsgdrh

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi: 20-30 gün
Ödeme koşulları: L/C, T/T, D/P, D/A, Western Union,, MoneyGram
Yetenek temini: Aylık 500Birim
Detaylı ürün tanımı

Overview
The Isuzu GIGA 4x2 recovery tow truck is engineered with a 5,550mm wheelbase, offering outstanding road stability and smooth handling. This optimized wheelbase design provides excellent maneuverability in narrow streets and challenging terrain—ideal for professional roadside assistance and vehicle recovery tasks.
Powered by the durable and fuel-efficient Isuzu 6HK1 diesel engine, the truck delivers up to 240 HP for strong towing capability. When combined with the reliable 8-speed manual transmission, operators experience responsive acceleration, consistent power output, and superior performance in heavy-duty working environments.



Key Features

Winch Functional Advantages

· Efficient Towing & Pulling: Capable of pulling disabled or damaged vehicles onto the flatbed or moving them to a safe position.

· Accurate Vehicle Positioning: Enables precise maneuvering in tight recovery zones, improving loading alignment and operational safety.

· Enhanced Stability & Self-Recovery: Provides an anchor point for the tow truck on slippery or uneven surfaces, ensuring secure operation.

· Accident Site Support: Helps separate collided vehicles and assists in partially uprighting overturned units for faster clearance.

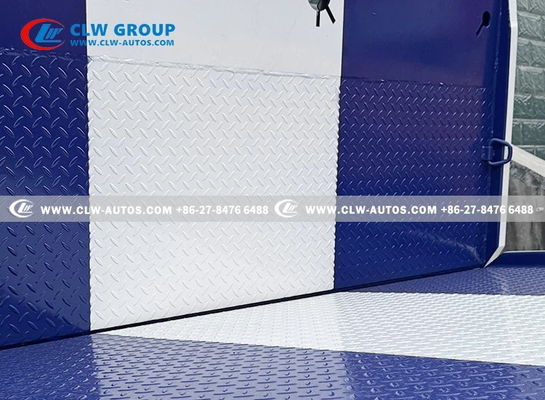

Anti-Slip Recovery Deck Features

· Slip-Resistant & Durable: Textured platform surface increases tire grip and enhances long-term wear resistance during vehicle loading.

· High Structural Strength: Reinforced patterns improve anti-deformation performance under heavy loads.

· Good Drainage & Anti-Corrosion: Efficient water drainage design reduces moisture buildup and minimizes the risk of rust.

· Better Tire Protection: Improves vehicle stability and reduces abnormal tire wear throughout the towing process.





Products Parameters



Chassis Specification

Chassis Model QL118
Driving Model 4x2
Cab
  • ISUZU FVR Cabin, with one sleeper
  • Left Hand Drive
  • With Air Conditioner
  • With Pneumatic Seat
  • Electric doors and Windows
Dimension 10000 x 2500 x 3000 mm
Wheelbase 5550 mm
Gross vehicle Weight 18000 kg
Front Axle Loading Capacity 6300 kg
Rear Axle Loading Capacity 13000 kg
Axle Number 2
Engine

ISUZU diesel engine

6 cylinders in a line,

Water cooled, turbocharged, after cooled, cold start.

Model: 6HK1-TCG61
Horse power: 240 HP
Displacement: 7790 ml
Emission standard: Euro 6
Transmission Model: FAST Manual Type
8 Forward & 1 Reverse
Tire 295/80R22.5
6 Pcs with one spare tire
Fuel Tank Capacity 200L
Brakes Air brake, With ABS
Upper Body Specifications
Flatbed Platform Size: 7000 x 2500 mm
Thickness : 6mm checked plate
Loading Capacity: 15 Ton
Frame: 16 mm Thick manganese plate
Winch 10 Ton
Rear Lifting Arm 10 Ton
Box Plate Material: Aluminum Alloy
Hydraulic Back Platform 2400 x 2500 mm

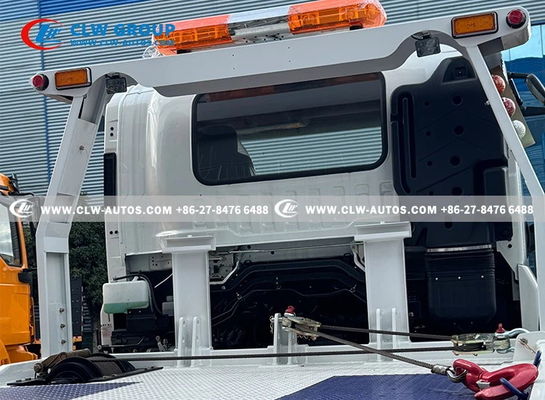

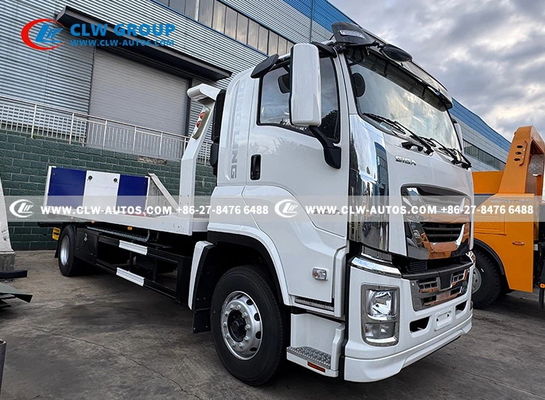

Relate photo

Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance 0

Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance 1

Isuzu GIGA 4x2 Recovery Tow Truck Maneuverability in Narrow Streets and Challenging Terrain for Roadside Assistance 2
