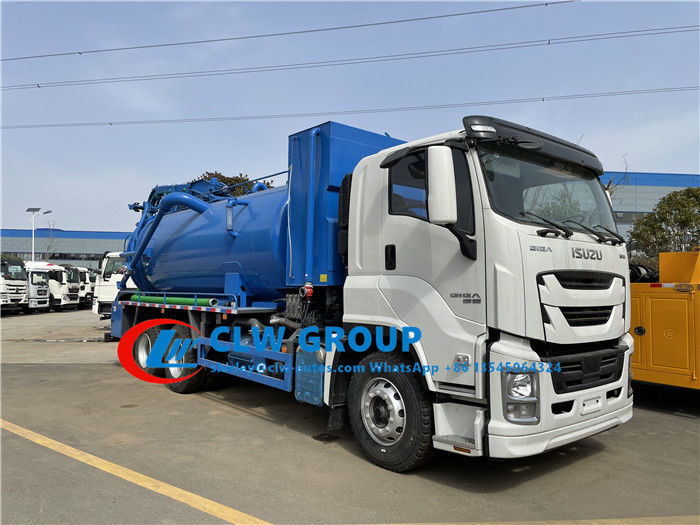

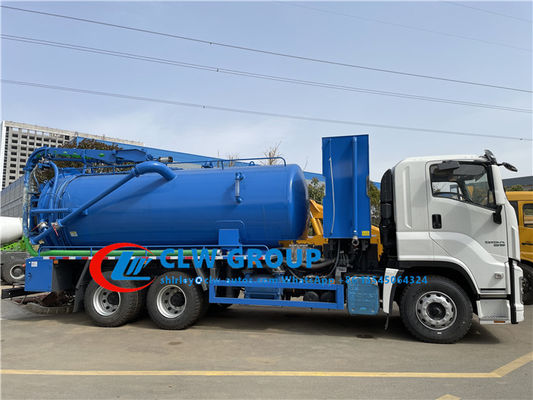

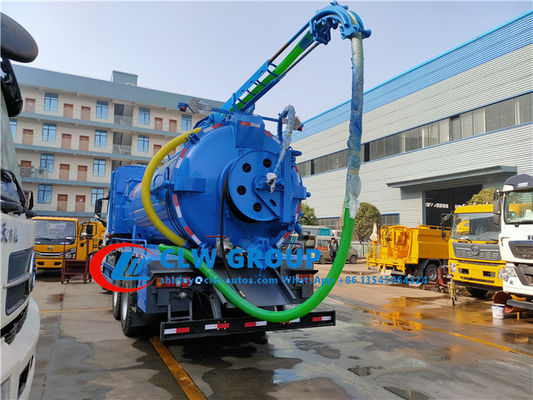

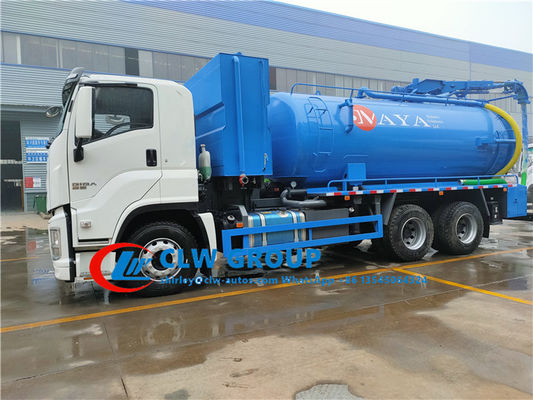

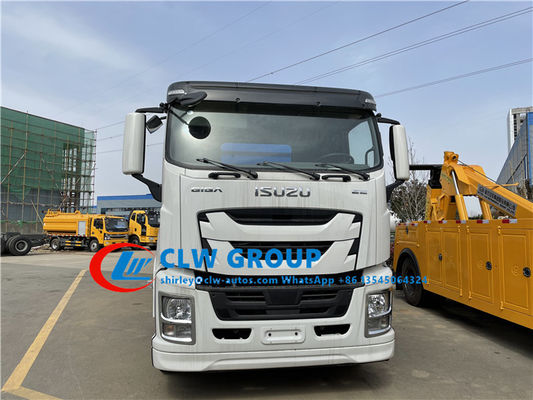

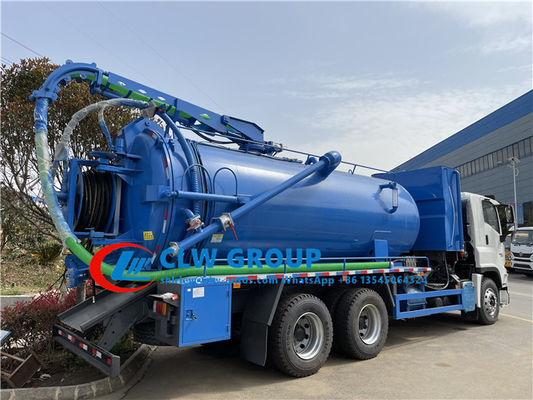

ISUZU GIGA 18 Ton Combined Vacuum Sewer Jetting Truck

Above ISUZU GIGA vacuum sewer truck is customized to produce 16,000 -20000Litres Combined Vacuum Jetting Tank.The tank & sewer vacuum truck could be hydraulic lifted and the rear door & tank could be hydraulic opened for completely tipping sewage and solid stuff.

Isuzu sewer jetter trucks are mainly used for sewage cleaning and suction. The main special devices are vacuum pumps and tanks. The overall dimensions of the tank body are (straight section length×diameter) (mm): 5400×2150, in which the front section of the tank body is a clean water tank (the straight section length is 2400mm); the rear section is a sewage tank (the straight section length is 3000mm). The two tanks are independent and cannot be fully loaded at the same time. The clean water tank is used for the cleaning function, and the sewage tank is used for the dirt suction function. The effective volume of the clean water tank is 7.5 cubic meters, the medium: water, the density: 1000 kg/m3; the effective volume of the sewage tank is 9.3 cubic meters, the medium: liquid sewage, the density: 800 kg/m3.​

Isuzu GIGA 6X4 vacuum sewer jetter truck comes with Isuzu chassis, wheelbase: 4565+1370mm, vehicle size: 9850*2500*3850mm, clean water tank 4 m3, 304 stainless steel, 3mm thick, each on the left and right is protected against water ingress. With measuring tube, Pinfu 420 flow high-pressure pump, sewage tank 15 m3, 6mm thickness, 4 baffles, baffle sealing ribs, Haosei 204 water ring pump, the tail 220 of the pneumatic blowdown, the tail 100 of the blowdown There is a sewage pipe on the left and right sides of the tank body, with guardrails on the top of the tank, 10 meters suction pipe with hydraulic boom installed, with remote control, platform under the tank, built-in roof, rear cover can be opened, 4 locks, tail The reel is enlarged. Accessories: 200m high pressure pipe, 10 combined nozzles.
