HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa Ürünlervakumlu emme kamyonu

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck
Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck

Büyük resim :  Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: BV, SGS, CCC
Model numarası: CLW0581HJ

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 birim/ay
Detaylı ürün tanımı
Şasi markası: Dongfeng, Foton, Sinotruk HOWO, Isuzu vb. Sürücü modeli: Sağdan Direksiyonlu ve Soldan Direksiyonlu
Motor gücü: 180hp Dingil açıklığı: 4500 mm
Yorulmak: 6 Lastik ve Bir Yedek Tank kapasitesi: 10 metreküp 10m3 10 metreküp 10000 litre 10t 12t
Tank malzemesi: 6mm karbon çeliği Vakum pompası: Çin markası, İtalya markası veya diğer ithal marka
Kanalizasyon emme borusu: 8m Emme süresi: <5dk
Etkili Emme: >8m Logo ve Desen: Müşterinin isteği olarak
Garanti: 1 yıl
Vurgulamak:

12cbm Sewage Suction Truck

,

10cbm Sewage Suction Truck

,

Dongfeng 4X2 Sewage Sucking Truck

Hot Sale Dongfeng 4X2 6-Wheel 8 10 12cbm Sewage Suction Truck




Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with
DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.


Reference Photos

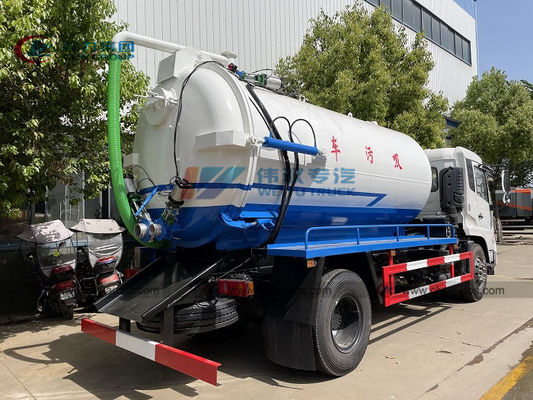

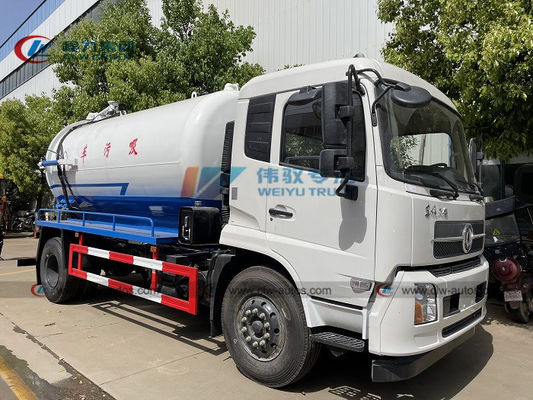

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck 0
Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck 1
Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck 2

Product Specification

Cabin Driving type 4x2, single row
Vehicle Main DimensionsOverall dimensions (L x W x H)mm7500*2300*2850
Wheel base (mm)4500
Wheel track (front/rear) (mm)1960/1860
Approach/Departure angle(°)28/32
Weight in KGSTare Weight5340
payload6025
Front axles loading capacity2700
Rear axles loading capacity5000
Max. driving speed(km/h)95
Engine BrandCummins
Horse Power(HP)180HP
Emission standardEuro V
Gearbox6 forwards & 1 reverse
Steering Left hand drive
Tire9.00R20, 6 tires with one spare
Sewage Tank
Tank volume11000Liters
Tank material 6mm carbon steel Q235
Tank size4900x1600mm
Vacuum Pump Chinese Vacuum Pump or Italy Vacuum Pump
Sewage suction pipe 8M
Main PerformanceSuction time ≤ 5min,
effective suction range ≥ 8m
Other equipment Oil-gas separator, water-gas separator, four-way valve, anti-flow valve, washing device, pressure gauge, ball valve
Painting Customized painting color and logo as required.

Main Structure

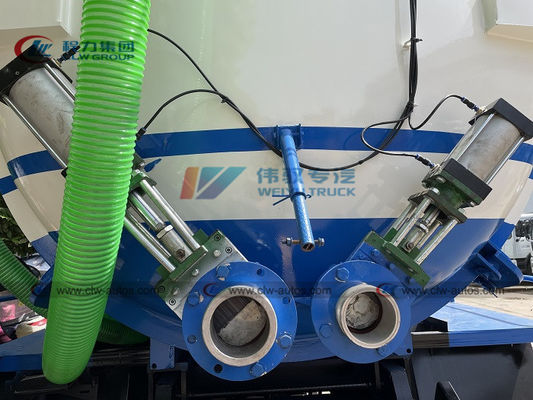

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck 3
Working Scene

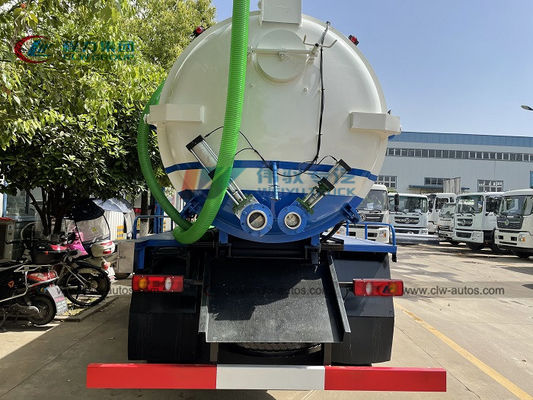

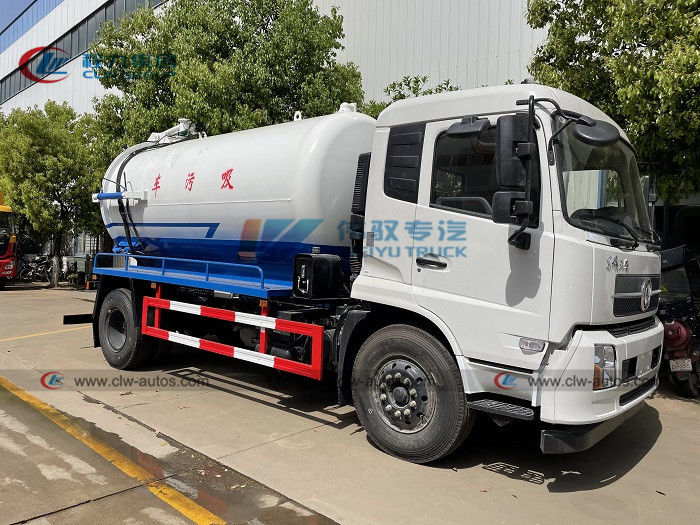

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck 4
Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck 5

Sales Service
1) Pre-sales Service: Communicate with customers, analyze their needs.
2) Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3) After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.


FAQ


Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
