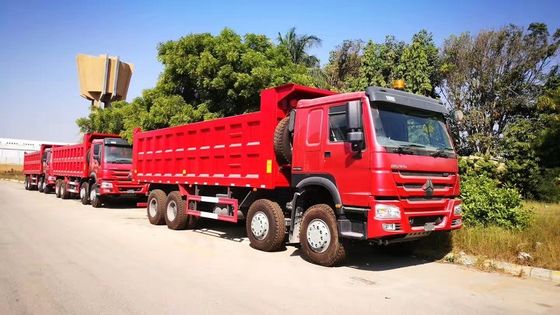

Howo 40 Ton Construction Heavy Duty Dump Truck 8X4 371hp Front Tipping

Büyük resim : Howo 40 Ton Construction Heavy Duty Dump Truck 8X4 371hp Front Tipping

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	BV,SGS,CCC
Model numarası:	CLW3310

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Hesapta depozito alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

marka:	Sinotruk Howo,CAMC,shacman,foton,kuzey-benz,JAC,ISUZU	Yükleme kapasitesi:	30t,30ton,30ton,40t,40ton,40tin,35t,35ton,35ton
Kaldırma türü:	Ön Devrilme, Orta Devrilme	Yağ silindiri markası:	Hyva veya Çin Markası
Damper kalınlığı:	yan 6mm, alt 8mm veya yan 8mm alt 10mm	Damper malzemesi:	Q345/B
Renk:	Beyaz, kırmızı, sarı istek olarak	MOTOR:	266hp,290hp,336hp,371hp
Vurgulamak:	heavy duty tipper trucks , heavy equipment dump truck

Howo 40ton Construction Tipper Truck 8X4 371hp RHD front tipping tipper

Product Description

1) Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...

2) Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

3) high tensile steel for dumper materia,4mm,6mm,8mm or 10mm

4) Used in construction site for transportation of mineral,stone,sand and so on.

Specifications of Sinotruk Howo 8X4 40ton construction tipper truck

Cabin		HOWO HW70 Cab,LHD or RHD,70° hydraulically tillable to the front
Vehicle Main Dimensions	(L x W x H)mm			10445×2496×3500
	Wheel base (mm)			1800+4200+1350
	Wheel track (front/rear) (mm)			1500/2095
	Approach/Departure angle(°)			19/22
Weight in KGS	Tare Weight				15500
	Loading Capacity				30000kg~50000kg
	Front axles loading capacity				HF9 2x9000
	Rear axles loading capacity				HC16 2x16000
Max. driving speed(km/h)							85
Engine			Brand					Sinotruk
			Model					WD615.47
			Type					4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
			Horse Power(HP)					371HP
			Emission standard					Euro Ⅱ
Gearbox			HW19710, 10 forwards & 2 reverse
Clutch			Reinforced diaphragm clutch, diameter 430mm
Steering Gear			ZF 8118,power steering, hydraulic steering with power assistance
Fuel tank (L)			300
Tire			12.00R20 , 12 pieces with one spare
Brakes			Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Electrical system			Battery			2X12V/165Ah
			Alternator			28V-1500kw
			Starter			7.5Kw/24V

Our Service

Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment

FAQ

Q1: What kinds of construction tipper truck I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied construction tipper truck to any overseas companies?

A: Yes,we offered construction tipper truck to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
