HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
Ana sayfa ÜrünlerAğır Hizmet Tipi Damperli Kamyon

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar
Ben sohbet şimdi

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Büyük resim :  Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck

Ürün ayrıntıları:

Menşe yeri: Suizhou, Çin
Marka adı: CLW
Sertifika: BV, SGS, CCC
Model numarası: CLW0571BP

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1 Adet
Fiyat: negotiable
Ambalaj bilgileri: Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi: 30-35 gün
Ödeme koşulları: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini: 500 Birim/Ay
Detaylı ürün tanımı
marka: Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU vb. gibi Çinli ünlü markalar. Yükleme kapasitesi: 30 ton, 40 ton, 50 ton
Kaldırma türü: Ön Devrilme, Orta Devrilme Yağ silindiri markası: Uluslararası marka HYVA veya Çin markası
Damper malzemesi: Yüksek kaliteli Q345B Damper kalınlığı: Alt 10mm, Yan 8mm veya Müşteri İsteğine Göre
Renk: Beyaz, Kırmızı, Sarı, Yeşil veya Müşterinin İsteğine Göre Logo ve Resim: müşterinin isteklerine göre
Teslim süresi: 30-35 iş günü Garanti: 1 yıl
Vurgulamak:

40T Tipper Dumper Truck

,

Sinotruk Howo 6x4 Tipper Dumper Truck

,

Howo 6x4 Heavy Duty Dump Truck

Brand New Sinotruk HOWO 40tons 6X4 Dump Truck Tipper Dumper Truck







Product Description

1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm, 6mm, 8mm,10mm or as per customer's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, garbage and etc.

Product Specification

Cabin HOWO 76 Standard Cab
With one sleeper, 70° hydraulically tillable to the front as attached photo for ref.
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 0
Vehicle Main Dimensions (L x W x H) mm 8860*2496*3450
Wheel base (mm) 3825+1350
Wheel track (front/rear) (mm) 1500/1525
Approach/Departure angle(°) 19/24
Weight in KGS Tare Weight 12390kg
Loading Capacity 40000kg
Front axles loading capacity HR9 1x9000kg
Rear axles loading capacity HC16 2x16000kg
Max. driving speed(km/h) 85
Engine Brand Sinotruk Howo
Model WD615.47
Type 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
Horse Power(HP) 290HP
Emission standard Euro 2
Gearbox HW19710, 10 forwards & 2 reverse
Clutch Reinforced diaphragm clutch, diameter 430mm
Steering Gear ZF 8118, power steering, hydraulic steering with power assistance
Fuel tank (L) 300
Tire 12R22.5 tubeless tire,10 pieces with one spare
Brakes Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake

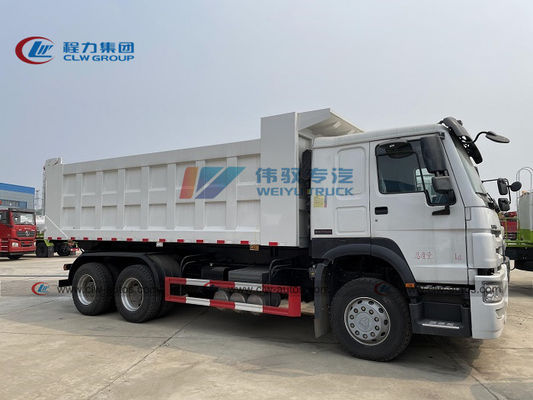

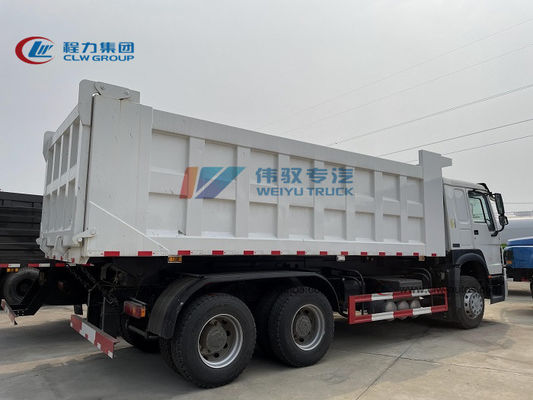

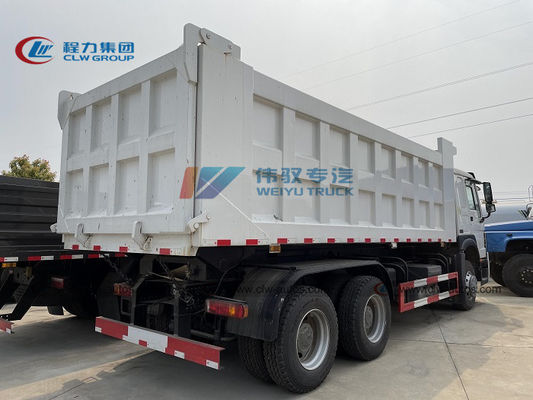

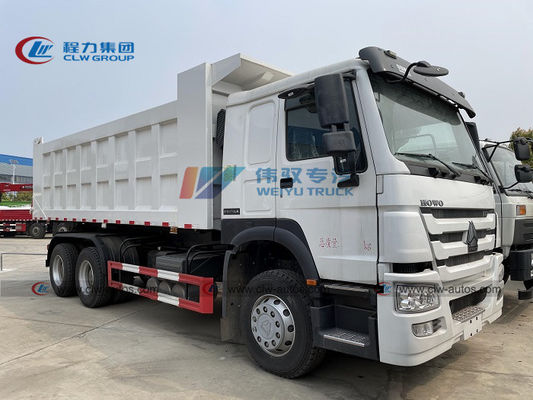

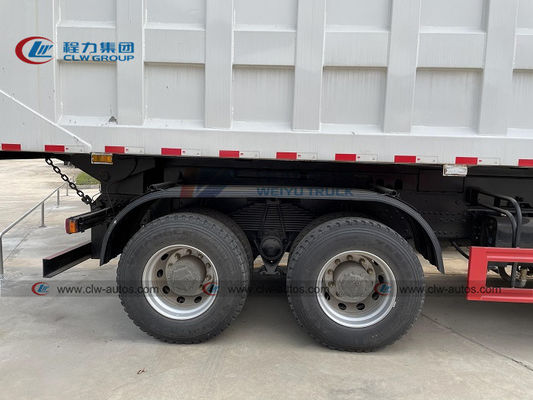

Reference Photos
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 1

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 2

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 3

Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 4



Other Related Dump Trucks
Sinotruk Howo 6x4 40T Heavy Duty Tipper Dumper Truck 5




After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea for more details+86 155 2791 1810.



FAQ


Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
