SINOTRUK HOWO 6x4 371HP 20T 30T Refurbished Dump Tipper Truck

Büyük resim : SINOTRUK HOWO 6x4 371HP 20T 30T Refurbished Dump Tipper Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	BV, SGS, CCC
Model numarası:	CLW5704

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	USD17200 - 22530
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

marka:	Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU vb. gibi Çinli ünlü markalar.	Yükleme kapasitesi:	20 ton, 25 ton, 30 ton
Kaldırma türü:	Ön Devrilme, Orta Devrilme	Yağ silindiri markası:	Uluslararası marka HYVA veya Çin markası
Damper malzemesi:	Yüksek kaliteli Q345B	Damper kalınlığı:	Alt 8mm, Yan 6mm veya Müşteri İsteğine Göre
Renk:	Beyaz, Kırmızı, Sarı, Yeşil veya Müşterinin İsteğine Göre	Garanti:	1 yıl
Vurgulamak:	Refurbished Dump Tipper Truck , SINOTRUK HOWO 6x4 Dump Tipper Truck , 30T Refurbished Truck

USED SINOTRUK HOWO 6x4 371hp 20tons 30tons heavy duty mining stone sand refurbished Dump Tipper Truck used Dump Truck for Construction Mining Transportation

Product Description
1) Dump truck brand: SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, FOTON, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.

Product Specification

Vehicle Main Dimensions	Overall dimensions (L x W x H)(mm)	9534×2496×3370
	Wheel base (mm)	3225+1350
	Wheel track (front/rear) (mm)	2020/1800
	Approach/Departure angle(°)	19/24
Weight in KGS	Tare Weight	12460
	payload	28000
	Front axles loading capacity	1x9000
	Rear axles loading capacity	2x16000
Max. driving speed(km/h)		85
Engine	Brand	Sinotruk
	Model	WD615.47
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	371hp
	Emission standard	Euro II
Gearbox	HW15710, 10 Forwards gear & 1 reverse gear
Clutch	Reinforced diaphragm clutch, diameter 430mm
Steering Gear	ZF 8098,power steering, hydraulic steering with power assistance
Fuel tank (L)	400
Tire	12R22.5 tubeless tyre, Triangle Brand, 10+1 pcs
Brakes	Service brake: dual circuit compressed air brake Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Tipper body size	540023001500 mm, side is 6 mm, front and bottom 8 mm
Hydraulic system	Middle tipping

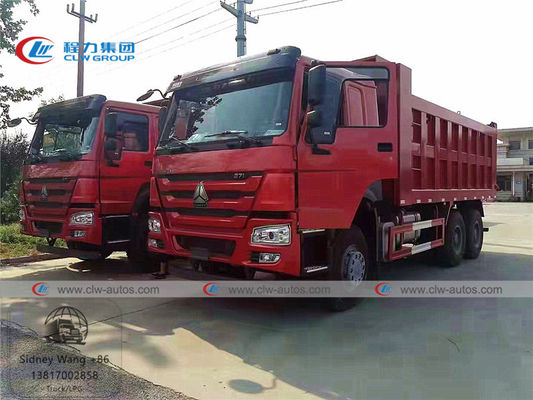

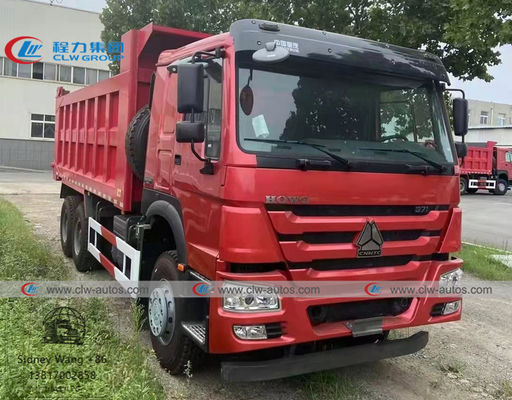

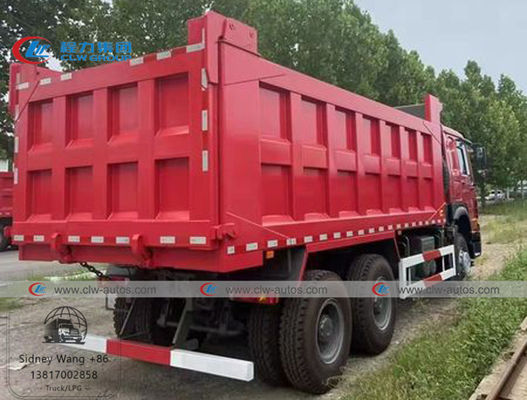

Product Show

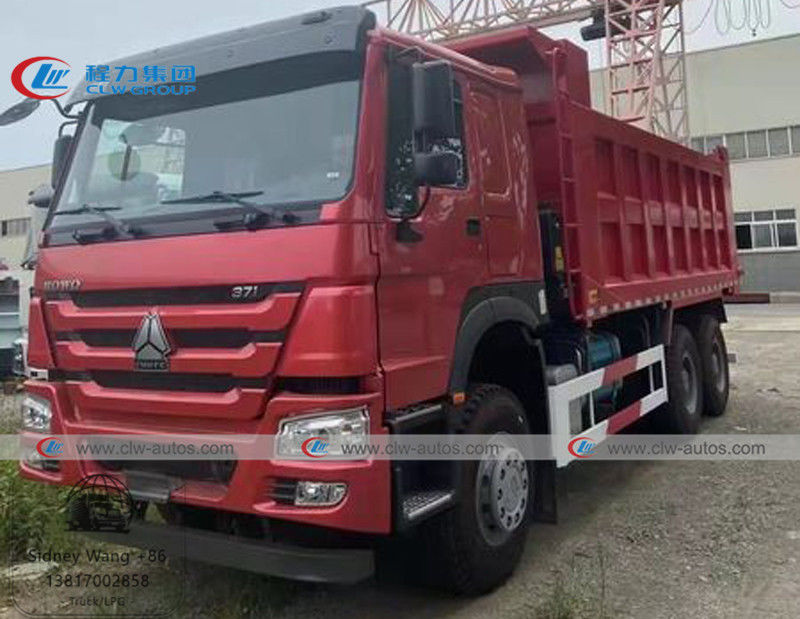

SINOTRUK HOWO 6x4 371HP 20T 30T Refurbished Dump Tipper Truck 0

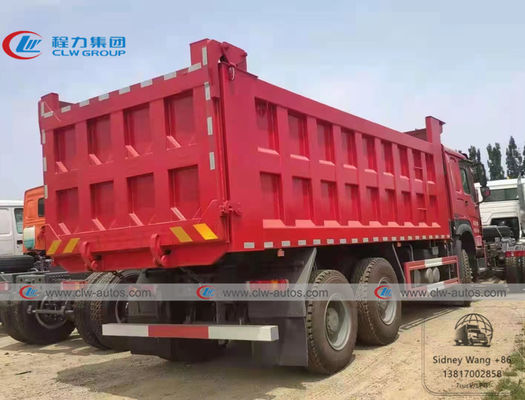

SINOTRUK HOWO 6x4 371HP 20T 30T Refurbished Dump Tipper Truck 2
Related products

Factory overview

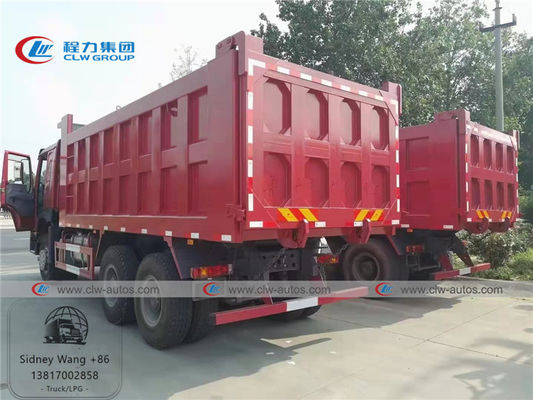

SINOTRUK HOWO 6x4 371HP 20T 30T Refurbished Dump Tipper Truck 5

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

FAQ
Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the

installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the

products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
