FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck

Büyük resim : FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	BV, SGS, CCC
Model numarası:	CLW5940

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	USD32200 - 42530
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu gemi, Ro-Ro
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

marka:	Sinotruk Howo, CAMC, Shacman, Foton, North-benz, JAC, ISUZU vb. gibi Çinli ünlü markalar.	Yükleme kapasitesi:	20 ton, 25 ton, 30 ton
Kaldırma türü:	Ön Devrilme, Orta Devrilme	Yağ silindiri markası:	Uluslararası marka HYVA veya Çin markası
Damper malzemesi:	Yüksek kaliteli Q345B	Damper kalınlığı:	Alt 8mm, Yan 6mm veya Müşteri İsteğine Göre
Renk:	Beyaz, Kırmızı, Sarı, Yeşil veya Müşterinin İsteğine Göre	Garanti:	1 yıl
Vurgulamak:	350HP Dump Tipper Truck , FOTON AUMAN Dump Tipper Truck , 20T Dump Tipper Truck

FOTON AUMAN 6X4 type 350hp 20tons 30tons Heavy duty mining stone sand dirt dump tipper truck dump truck for construction site mining tansportation
Product Description
1) Dump truck brand: FOTON, SINOTRUK HOWO, CAMC, SHACMAN, JAC, NORTH-BENZ, ISUZU, etc.
2) Tipping Model: Front-tipping, Middle-tipping.
3) Hydraulic oil cylinder brand: International brand HYVA or Chinese famous brand.
4) High tensile steel for dumper materia: 4mm,6mm,8mm, 10mm or as per client's request.
5) Used in Construction or Mineral site for Transportation of mineral, stone, sand, and etc.
Product Specification

Chassis
Brand and Model	FOTON AUMAN
Drive type	6X4
Wheel base(mm)	3825+1350
Overall dimension(mm)	8472X2495X3400
Curb weight(Kg)	12110
Load capacity(Kg)	30000
Cabin	Flat roof,one and half rows,luxury configuration,2 passengers allowable,with single bunker,A/C
Engine	Model	ISGe4-350
	Max.output (kw/HP)	257/350
	Max.torque (N•m)	1800@1000RPM
	Displacement (ml)	10500
	Emission standard	Euro IV
	Description	In-line, 6 cylinders,water cooled,4 strokes,turbo charged,inter-cooled,electric control,high pressure ,common rail diesel engine
Gear box	Manual,12 forward ＆ 2 reverse gears
Driving axle	Load capacity 18000Kg
Front axle	Steering axle,load capacity 7000Kg
Quantity of leaf spring	11/14
Inner trimming
Standard configuration	Air suspension seat
	Seat heater
	Lumbar support to the driver
	Adjustable steering wheel
Electrical system
Standard configuration	CAN bus intellectual electronic control system
	New battery box
	Start/stop device under the vehicle
Safety
Standard configuration	Three points safety belt
	Automatic clearance adjustment arm,tachometer
Service brake	Dual circuit compressed air brake
Parking brake	Spring energy, compressed air operating on rear wheels
ABS	Provided
Comfortable accessories
Cab four points full floating suspension	Front and rear coil spring
Standard configuration	Cab anti-rolling stabilizing device
	Hand accelerator
Electric window	Provided
Tipper body
Standard configuration	Big tool box
	Reinforced rim (with HQ mark)
	Three in one lock (Ignition switch, door and fuel tank)
Type specification	11.00R20 18PR
Number of tyres	10+1
Max.vehicle speed(km/h)	81
Box dimension(mm)	5600X2300X1200

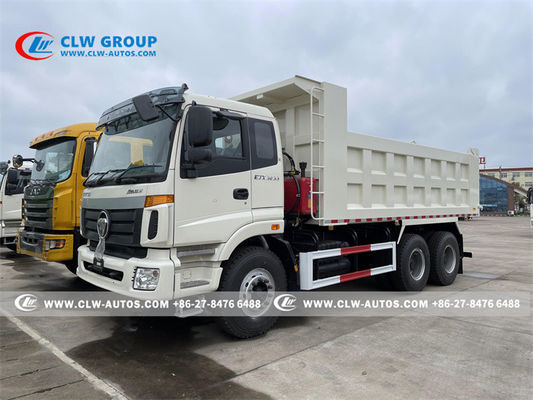

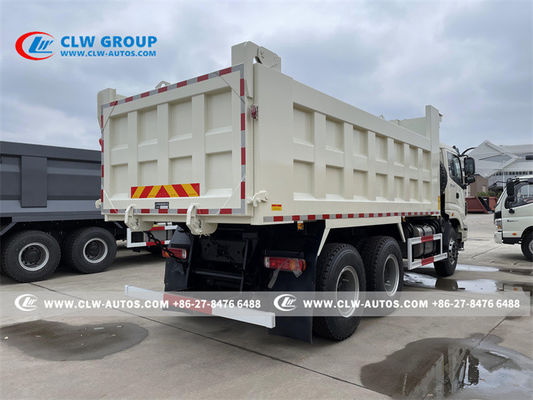

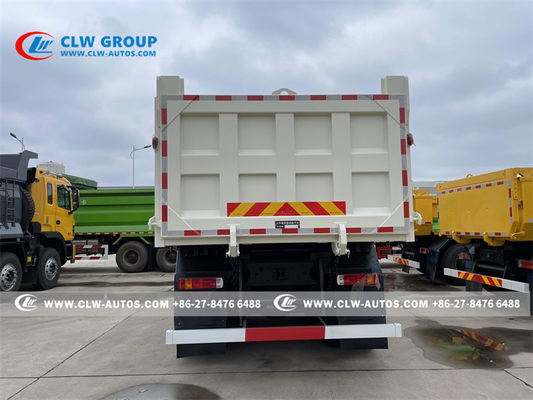

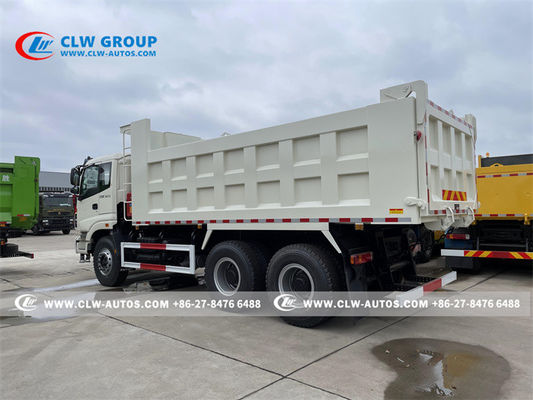

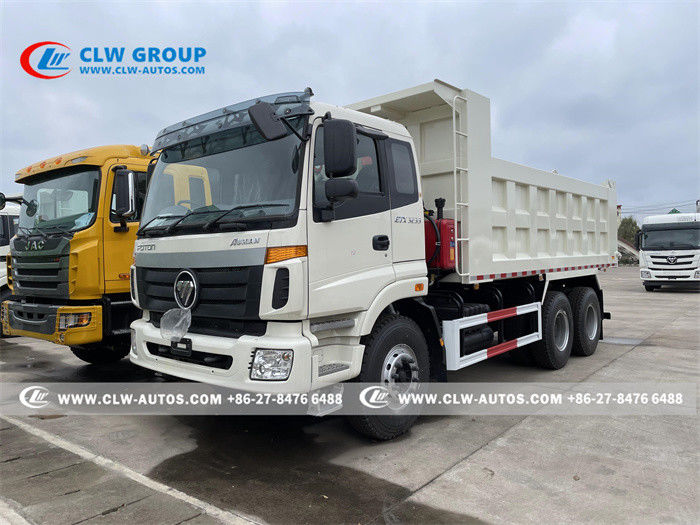

Product Show

FOTON AUMAN 6x4 350HP 20T 30T Dump Tipper Truck 0

Related products

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

FAQ
Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer manual, video guidance and our engineers will go to customer's country to assist the
installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the
products arriving at destination safely.

Spare Parts

1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service

Email & Phone call tracking for each truck on timely manners.

Shipment

Land transportation or Ship by bulk cargo ship, container, roro ship
