Dongfeng 6 X 4 Heavy Duty Dump Truck 10 Wheels Tipper Truck For Construction Material Transportation

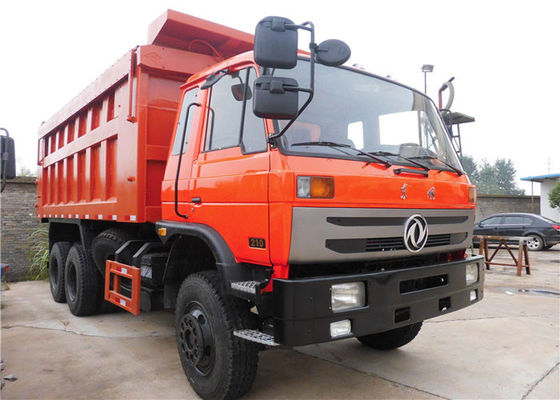

Büyük resim : Dongfeng 6 X 4 Heavy Duty Dump Truck 10 Wheels Tipper Truck For Construction Material Transportation

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	BV,SGS,CCC
Model numarası:	CLW3250DF

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak, Mumlu, Toplu Gemi, Ro-Ro
Teslim süresi:	Hesapta depozito alındıktan 30 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

marka:	Çin ünlü markası Shacman	Yükleme kapasitesi:	20ton 25ton 30ton
Kaldırma türü:	Ön Devrilme, Orta Devrilme	Yağ silindiri markası:	Uluslararası marka HYVA veya Çin markası
Damper kalınlığı:	yan 6mm, alt 8mm veya müşterinin isteğine göre	Damper malzemesi:	Yüksek kaliteli Q345B
Renk:	Beyaz, Kırmızı, Sarı veya özelleştirilmiş	MOTOR:	210 HP
Vurgulamak:	10 wheel dump truck , heavy equipment dump truck

Dongfeng dump truck 30tons 6x4 heavy duty dump truck 10 wheels tipper truck for construction material transportation

Product Description

1) Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...

2) Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand

3) High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.

4) Used in construction site for transportation of mineral,stone,sand and so on.

Condition	New condition/Left hand drive/6x4
Chassis	Brand		Dongfeng
	Model		EQ
	Curb weight(kg)		11905
	Axle loading(Front/Rear)(kg)		7000/18000
	Axle quantity(pcs)		3
	Wheelbase(mm)		3800+1350
	Dimensions(mm)		8250×2490×3000
	Wheel track (front/rear) (mm)		1940/1860/1860
	Front/Rear overhang(mm)		1250/1650
	Approach/Departure angle(°)		32/35
	Max. driving speed(km/h)		90
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	10pcs with one spare tire
		Specifications	10.00-20
Transmission	Manual type, 8 Forwards and 2 reverse
Cab	It can accommodate three people. With Air conditioner
Engine	Brand		Dongfeng Cummins
	Fuel type		Diesel
	Displacement(ml)		8300 ml
	Power(kw)		191 kw
	Horsepower(HP)		260 kw
	Cylinder number		6
	Emission standard		Euro 3
Upper	Size(mm)		5000×2300×1000 mm
	Max. Loading weight(kg)		15 tons
	Button Thickness(mm)		4.0 mm/6.0mm/8.0mm/10.0mm
	Side plate Thickness(mm)		3.0 mm/4.0mm/6.0mm
	Material		Q235 Carbon steel
	Tipping type		Double cylinder middle Tipping
	Oil cylinder		China local brand
	Oil cylinder size(mm)		110 mm
Remarks	1. Color is optional

Products Show

Sales Service

①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.

FAQ

Q1: What kinds of dump trucks I can order from your company?

A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.

Q2:: Have you supplied dump trucks to any overseas companies?

A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.

Q3 What about warranty?

A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?

A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
