Dongfeng 18cbm 18000Liters Road Cleaning Sewage Fecal Vacuum Suction Truck with Hydraulic Lifting System
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Product Specification
| Vehicle Description |
| Overall dimensions |
9800*2500*3700mm |
| GVW |
25000kg |
| Mass in working order |
12800kg |
| Chassis brand |
DONGFENG |
| Traction type |
6*4 |
| Tanker Description |
| Tanker |
Capacity |
18000L |
| Material |
6mm thickness, high quality carbon steel |
| Structure |
Welding, vacuum tank, Cylindrical |
| Pump |
Type |
Double vacuum pump |
| Flux |
68(L/S) |
| Rating speed |
800~1000(r/min) |
| Shaft power |
5(kw) |
| Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
| Manufacture |
Hangzhou WEILONG Pump Co., Ltd. |
| Pipe |
Suction and discharge pipe |
| Special function |
Suction time ≤ 5mins,
effective suction range ≥ 8,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45 |
| Standard configuration |
Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically. |
| Optional configuration |
Tanker material: stainless steel.
Vacuum pump : Italy or Spain vacuum pumps.
Anti-rust coating inside tank |
| Chassis Description |
| Chassis model |
Dongfeng Tianlong |
| Cab |
Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock. |
| Traction type |
LHD |
| Drive type |
6x4 |
| Wheelbase |
4350+1300mm |
| Tire specification |
11.00R20 |
| Tire quantity |
10+1 units |
| Engine |
Engine model |
C260 33 |
| Emission level |
Euro 2 |
| Displacement/output |
8300ml/191kw |
| Horse power |
260hp |
| Gear box |
Model |
9JS119T-B |
| Number of gears |
9 forward gears& 1 reverse, synchronized |
| Brake system |
Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake |
| Axle |
Front |
7T- Elliot type, I beam section |
| Rear |
10T*2-Single reduction, ratio 5.143 |
| Suspension |
Front |
8/8- Leaf spring with shock absorber |
| Rear |
9/9-Leaf spring |
| Fuel tanker |
Type |
Steel fuel tank, with lockable cap |
| Capacity |
350L |

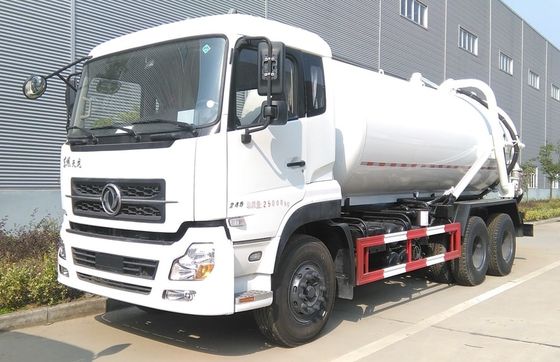

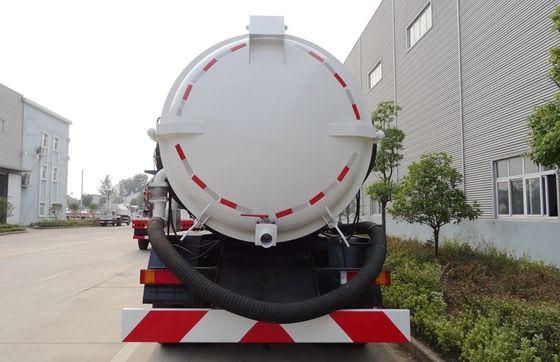

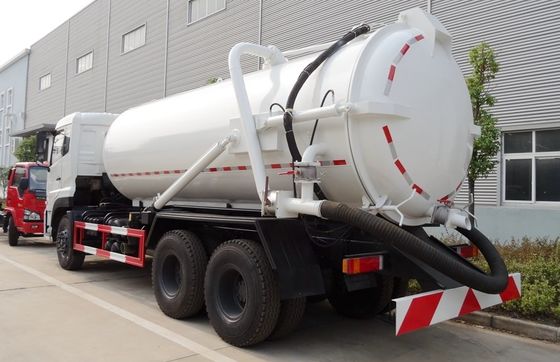

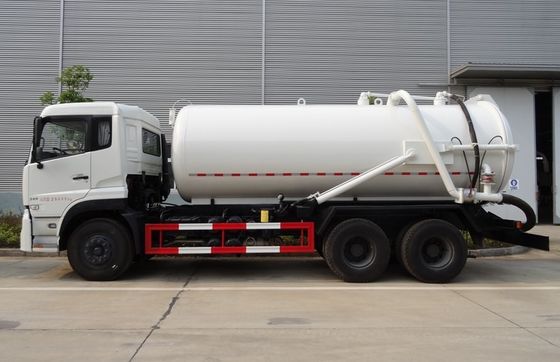

Reference Photos
Main Structure
Working Scene
Delivery and Shipment
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
