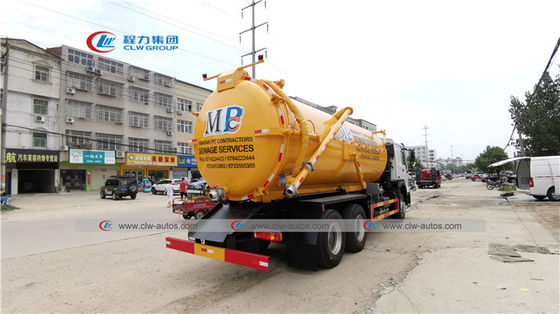

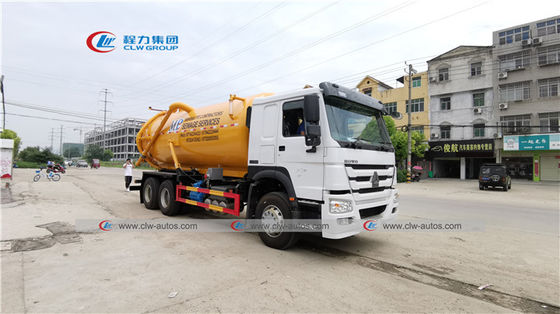

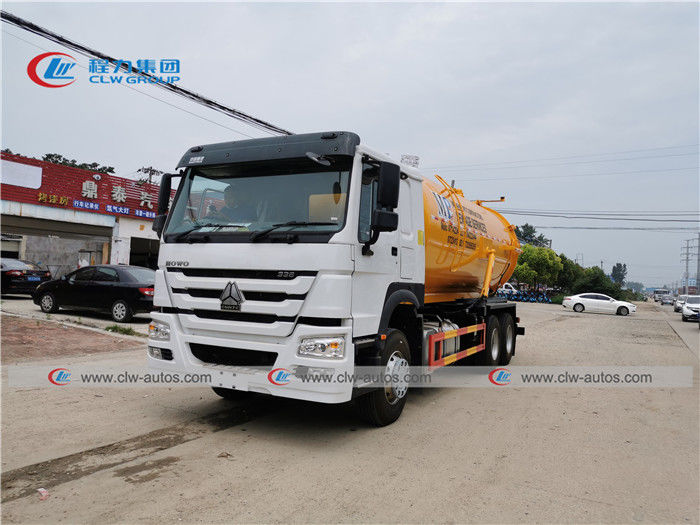

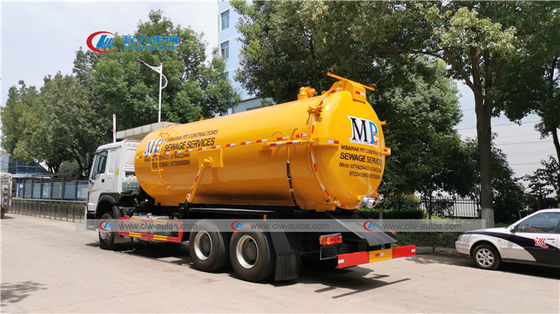

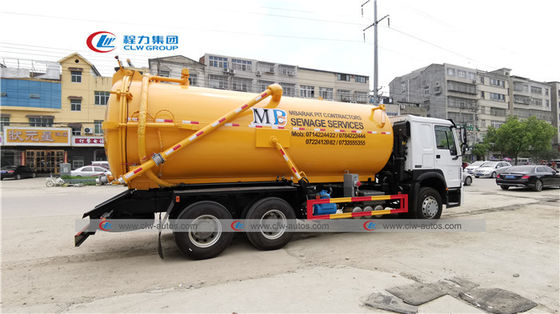

SINOTRUCK HOWO 15000 Liters Italy Vacuum Pump Sewer dredging Sewage Suction Tank Truck
SINOTRUCK HOWO 15000Liters Italy Vacuum Pump Sewer dredging Sewage Suction Tank Truck
Product Description
1. Chassis:HOWO,ISUZU,DONGFENG,JAC,JMC,SHACMAN,FOTON
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
| Complete Vehicle Parameter |
| Vehicle |
HOWO vacuum sewage truck |
| Overall dimension (mm) |
9000×2500×3300 |
| Sewage tank (m3) |
16 |
| Gross vehicle weight (kg) |
Appro×25000 |
| Curb weight (kg) |
Appro×10000 |
| Payload (kg) |
Appro×15000 |
| Wheel base (mm) |
4325+1350 |
| Max speed (km/h) |
90 |
| Chassis Parameter |
| Cabin |
Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive,with Air Conditioner |
| Drive form |
6×4 |
| Engine |
Brand: SINOTRUCK |
| Model: WD615.69,336HP |
| Type: diesel, turbocharged, 6 cylinder. |
| Displacement: 9726ml |
| Emission standard: Euro 2 |
| Transmission |
10 forward,2 reverse, manual operated |
| Tire model |
12R22.5 |
| No.of tires |
10 pcs, with 1pc spare tire |
| Superstructure Parameter |
| Characteristic |
1. Sewage tank volume 16000 liter. |
| 2. Sewage tank material is carbon steel,thickness 5mm. |
| 3. Sewage suction pipe 1pcs, length 7m. |
| 4. Hydraulic lifting sewage tank,rear cover can open. |
| 5. Equipped with PTO. |
| 6. Equipped with vacuum pump. |
| 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
| Performance |
(1) Vertical suction ≥ 7m. |
| (2) Pumping speed : 45L/s. |
| (3) Intake and exhaust diameter: 50mm. |
| (4) Full tank pumping time ≤ 5min. |
| (5) Sewage tank emptying time ≤ 4min. |
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
