ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

Büyük resim : ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5044WYXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	12820 usd/unit~32850 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	ISUZU,Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW Septik Tank Temizleme Kamyonu	Sürüş Modeli:	LHD,RHD Septik Tank Temizleme Kamyonu
MOTOR:	Dizel motorlu Septik Tank Temizleme Kamyonu	Malzeme:	Q235 karbon çelik Septik Tank Temizleme Kamyonu
Tanker boyutu:	2cbm 3cbm 4cbm Septik Tank Temizleme Kamyonu	Yükleme kapasitesi:	2ton 3ton 4ton 5ton Fosseptik Temizleme Kamyonu
Tanker kalınlığı:	5mm veya 6mm Fosseptik Temizleme Aracı	Vakum pompası:	Çin pompası,BP,Jurop,Mono Kaiser Septik Tank Temizleme Kamyonu
Emiş Derinliği:	7 metre Fosseptik Temizleme Kamyonu	Emme mesafesi:	50~100 metre Fosseptik Temizleme Kamyonu
Orta:	kanalizasyon/çamur/septik emme Septik Tank Temizleme Kamyonu
Vurgulamak:	4m3 Sewage Tank Sewer Vacuum Truck , 2000L Water Tank Sewer Vacuum Truck , ISUZU sewer cleaning truck

ISUZU 2000Liter Water 4m3 Sewage Tank Vacuum Sewer Jetting Septic Tank Cleaning Truck

Description--Septic Tank Cleaning Truck(also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Septic Tank Cleaning Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Structure of septic tank cleaning truck:
The sewage cleaning truck is mainly composed of chassis + tank body + sandwich power take-off + high pressure pump + high pressure tee + hose reel + high pressure pipe + nozzle + hydraulic system + vacuum pump + vacuum system + hydraulic lifting mechanism.

High-pressure part: The high-pressure pump is mainly driven by a full-power power take-off to produce high-pressure jet water and various blockages in the pipeline are flushed through the pressure of the reflected water of the high-pressure nozzle to achieve the purpose of dredging and cleaning the pipeline.

Dirt sucking part: The vacuum pump is driven by the side-mounted power take-off to extract the air in the tank to form a vacuum inside the tank and suck the dirt into the tank through atmospheric pressure!

Feature

--Vacuum septic suction truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Japanese ISUZU truck chassis;

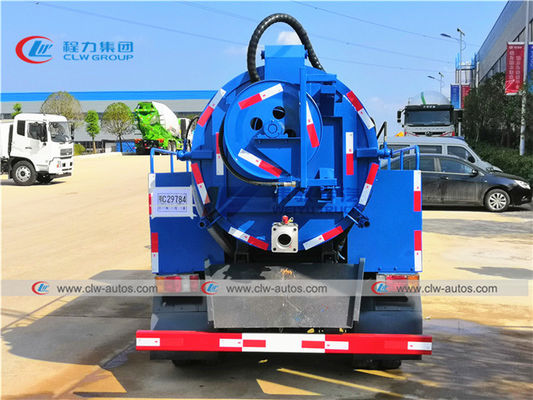

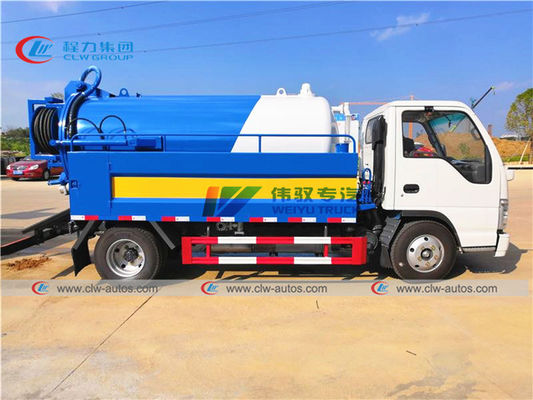

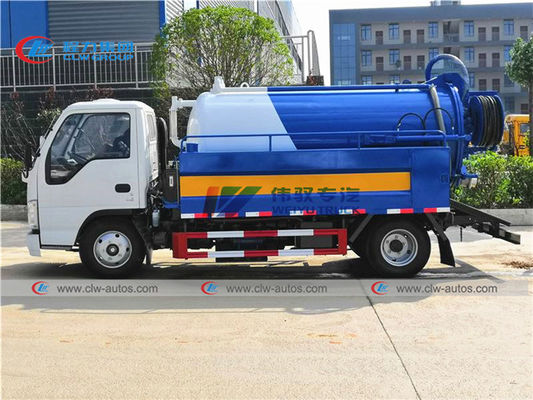

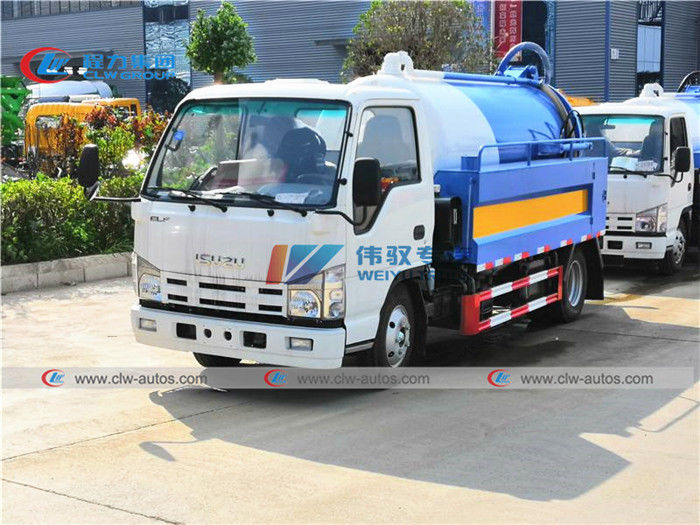

Reference picture

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck 0

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck 3

Specification

Chassis parameters
Cabin	ISUZU 100P cabin/Left hand drive/4x2
	Loading weight(kg)		3800kg
	Wheelbase(mm)		3360 mm
	Dimensions(mm)		590019002400mm
	Front/Rear Axle loading(kg)		2000/4000 kg
	Wheel track (front/rear) (mm)		1770/1586 mm
	Front/Rear overhang(mm)		1210/1490 mm
	Approach/Departure angle(°)		24/12 °
	Max. driving speed(km/h)		100 km/h
	Clutch		Reinforced diaphragm clutch
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	7.00R16
Gear box	Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse
Engine	Brand		ISUZU engine
	Model		4KH1CN5LS
	Fuel type		Diesel
	Displacement(ml)		2999ml
	Power(kw)		72 kw
	Horsepower(HP)		98 HP
	Max. Torque(N.m)		220
	Emission standard		Euro V
Sewage Suction Tanker
1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm. 2)Equipped with 60m high pressure tube,diameter 19mm. 3) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 4) Equipped with looking sludge window,self flow exit, and 1pcs sludge suction tube length 7m. 5) High pressure pump: Brand : Italy HPP Model : ESL122/130 Pressure : 16Mpa Flow : 130L/min 6)Vacuum water pump Model : SK-6 Type : water circulation pump Vertical suction: 9m Flow : 1.5m3/min

Related product

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck 4

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck 5

ISUZU 2000L Water 4m3 Sewage Tank Sewer Vacuum Truck 6

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
