RHD FAW J5K 10000 Liters Septic Tanker Truck

Tüm ürünler

LPG Gaz Tankeri Kamyonu (109)

LPG Gaz Depolama Tankı (155)

yakıt dağıtım kamyonu (153)

Çöp sıkıştırıcı kamyonu (172)

Atık kaldırma kamyonları (93)

Yol süpürge kamyonu (66)

vakumlu emme kamyonu (145)

Su Tankeri Kamyonu (102)

Soğutmalı Kasalı Kamyon (91)

LED Billboard Kamyonu (36)

Çöpe çekme aracı (78)

Havalandırma kamyonu (40)

kamyon monte teleskopik vinç (82)

İtfaiye Aracı (67)

Hazır Beton Mikser Kamyonları (24)

Ağır Hizmet Tipi Damperli Kamyon (28)

Tanker Kamyonlar ve Römorklar (174)

Çekici Kamyon (21)

En iyi ürünleri

ISUZU FTR High Pressure Vacuum Fecal Suction Truck 12000 Liters

ISUZU GIGA 18 Ton Combined Vacuum Sewer Jetting Truck

Dongfeng 4X2 6 Wheel 8 10 12cbm Sewage Suction Truck

Çin HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD Sertifikalar

Ben sohbet şimdi

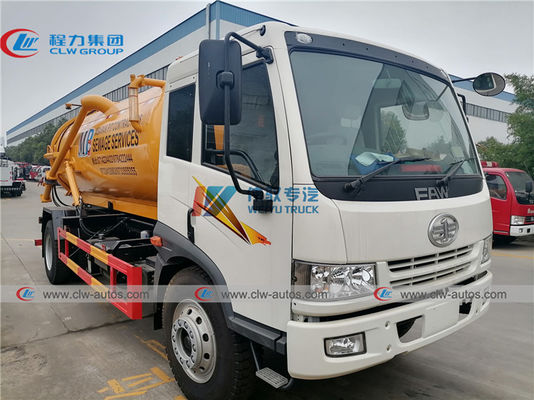

RHD FAW J5K 10000 Liters Septic Tanker Truck

Büyük resim : RHD FAW J5K 10000 Liters Septic Tanker Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5164WYXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	15520 usd/unit~38660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Ön ödeme alındıktan sonra 30 iş günü
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vakumlu Kanalizasyon Emme Kamyonu	Sürüş Modeli:	LHD, RHD Vakumlu Kanalizasyon Emme Kamyonu
MOTOR:	Dizel motorlu Vakum Kanalizasyon Emme Kamyonu	Malzeme:	Q235 karbon çeliği Vakumlu Kanalizasyon Emme Kamyonu
Tanker boyutu:	10cbm 12cbm 10m3 12m3 Vakumlu Kanalizasyon Emme Kamyonu	Yükleme kapasitesi:	10ton 12ton Vakumlu Kanalizasyon Emme Kamyonu
Tanker kalınlığı:	5mm veya 6mm Vakumlu Kanalizasyon Emme Kamyonu	Vakum pompası:	Çin pompası/BP/Jurop/Mono Kaiser Kanalizasyon Vakumlu Kanalizasyon Emme Kamyonu
Emiş Derinliği:	7 metre Vakumlu Kanalizasyon Emme Kamyonu	Emme mesafesi:	50~100 metre Vakumlu Kanalizasyon Emme Kamyonu
Orta:	kanalizasyon/çamur/septik emme Vakumlu Kanalizasyon Emme Kamyonu
Vurgulamak:	FAW J5K Septic Tanker Truck , RHD 10000 Liters Septic Tanker Truck , 10m3 Vacuum Sewage Suction Truck

RHD FAW J5K 10000Liters Septic Tanker Truck 10m3 Vacuum Sewage Suction Truck For Kenya Sewage Service

Description--Vacuum Sewage Suction Truck(also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Vacuum Sewage Suction Truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

--Vacuum Sewage Suction Truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Mobile FAW truck chassis;

Reference picture

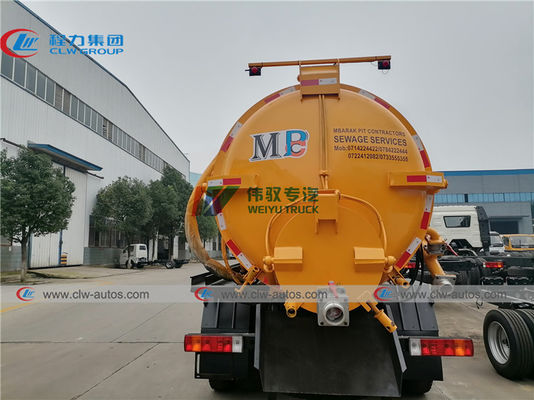

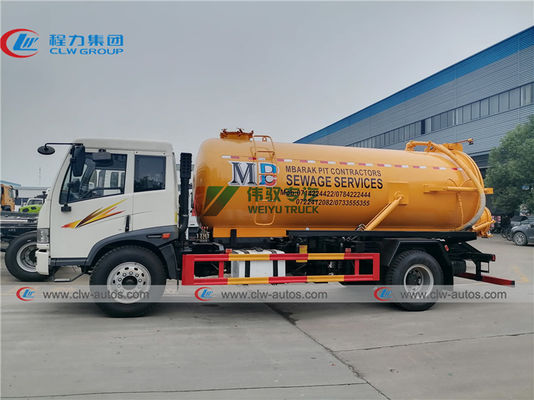

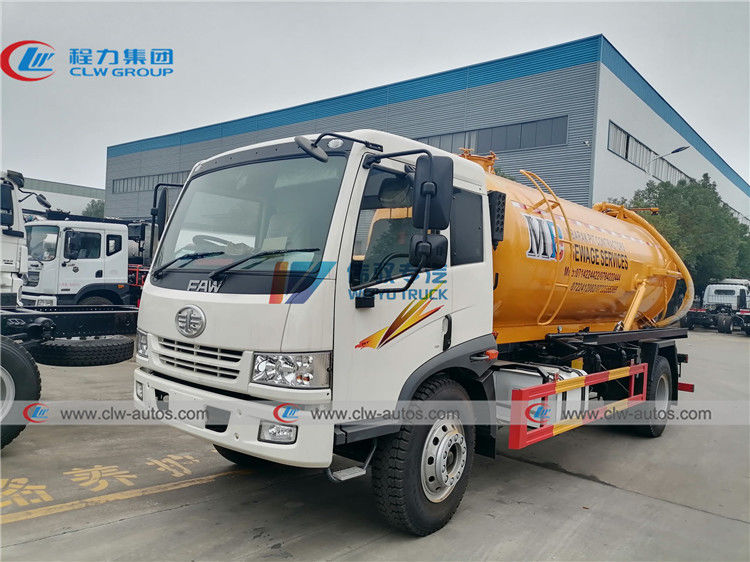

RHD FAW J5K 10000 Liters Septic Tanker Truck 0

RHD FAW J5K 10000 Liters Septic Tanker Truck 3

RHD FAW J5K 10000 Liters Septic Tanker Truck 4

Specification

Overall dimension			7860x2495x3250mm (25.78x8.18x10.66ft)
Total mass			16000kg
Chassis model			CA1163P7K2L2E
Payload weight			7500kg
Curb weight			8305kg
Cabin		Cabin size	Standard cabin (3 seats)
Cabin		Air conditioner	Optional
Engine		Tech	Dacai tech, CA6DE3-18E3
		Engine Type	6-cylinder in line, turbocharged and intercooled
		Fuel Type	Diesel
		Horsepower	136kw/185HP
		Engine Capacity	6618ml
		Emission Standard	Euro 3
		Max Torque	650N.m
		Max torque speed	1400r/min
Axles		Front Axles	6000kg
Axles		Driving Axles	10000kg
Tyre			9.00R20 Radial tires with one spare tire (standard)/
Tyre			9.00-20 Nylon tires with one spare tire (optional)
Max speed			85km/h
BODY SPECS	Transport goods		Liquid pollutants manure, density: 800kg/m3
	Body Dimensions(Length x Axis)		Round tank , 4800x1870mm(15.74x6.13ft)
	Capacity		10m3/12m3
	Material of tank		Q235A Carbon steel
	Wheel base		4500mm (14.76ft)
	Overhang(front/rear)		1375/1985mm(4.51/6.51ft)
	Approach/Departure Angle		19°/11°
	Protective equipment	Material	Q235A carbon steel
		Connection	Welded connection
		Cross-section dimension of the rear guard (W x H)	50x120mm(1.97x4.72inch)
		Rear protective height from the ground	510mm(20.08inch)
	Function	It is formed of PTO, transmission shaft, vacuum pump, tanker, hydraulic system and pipe system. The time of load fully tanker ≤5min, head ≥5m

Related product

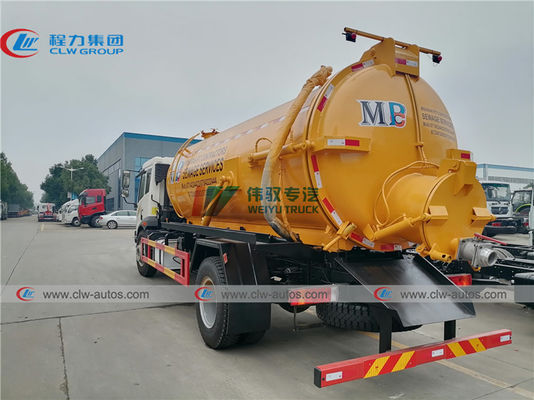

RHD FAW J5K 10000 Liters Septic Tanker Truck 5

RHD FAW J5K 10000 Liters Septic Tanker Truck 6

RHD FAW J5K 10000 Liters Septic Tanker Truck 7

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
