Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

Büyük resim : Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5040XLCQ

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	15520 usd/unit~35660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Ön ödeme alındıktan sonra 30 iş günü
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Kamyona Monte Kanalizasyon Elektrikli Süpürge	Sürüş Modeli:	LHD,RHD Kamyona Monte Kanalizasyon Süpürgesi
MOTOR:	Dizel motorlu Kamyona Monte Kanalizasyon Süpürgesi	Malzeme:	Q235 karbon çeliği Kamyona Monte Kanalizasyon Süpürgesi
Tanker boyutu:	6cbm 6m3 Kamyona Monte Kanalizasyon Süpürgesi	Yükleme kapasitesi:	6ton 5ton Kamyona Monte Kanalizasyon Süpürgesi
Tanker kalınlığı:	5mm veya 6mm Kamyona Monte Kanalizasyon Süpürgesi	Vakum pompası:	Çin pompası/BP/Jurop/Mono Kaiser Kamyona Monte Kanalizasyon Süpürgesi
Emiş Derinliği:	7 metre Kamyona Monte Kanalizasyon Süpürgesi	Emme mesafesi:	50~100 metre Kamyona Monte Kanalizasyon Süpürgesi
Orta:	kanalizasyon/çamur/septik Kamyona Monte Kanalizasyon Süpürgesi
Vurgulamak:	6CBM Sewer Vacuum Truck , ISUZU Sewer Vacuum Truck , lhd sewage suction tanker truck

ISUZU 6CBM 6000liters 1500 Gallons 5tons Sewer Tanker Truck Mounted Sewage Vacuum Cleaner

Description--ISUZU Truck Mounted Sewage Vacuum Cleaner (also called vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
ISUZU Truck Mounted Sewage Vacuum Cleaner is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

--Vacuum Sewage Suction Truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewage suction pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;--Mobile ISUZU 600P truck chassis;

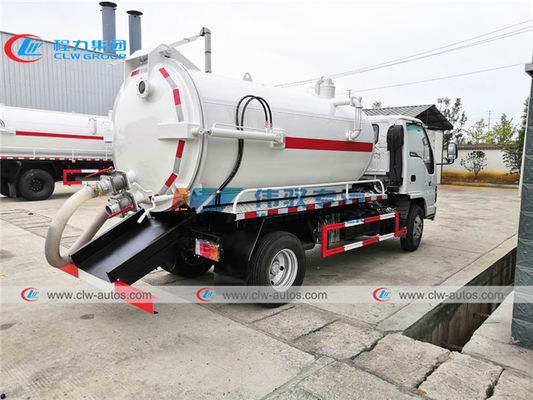

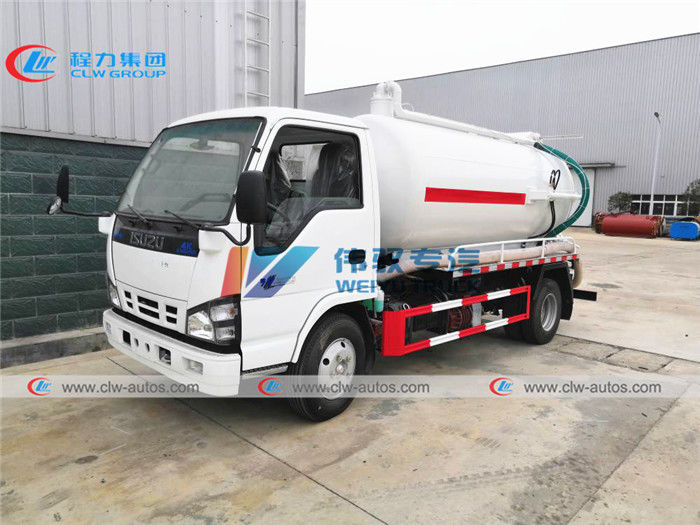

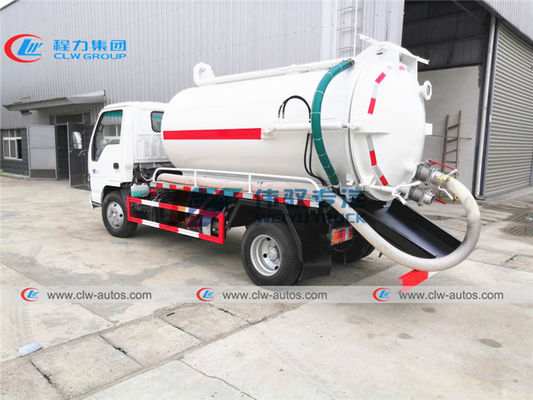

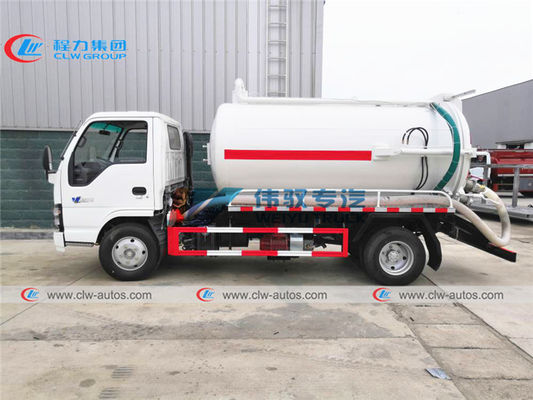

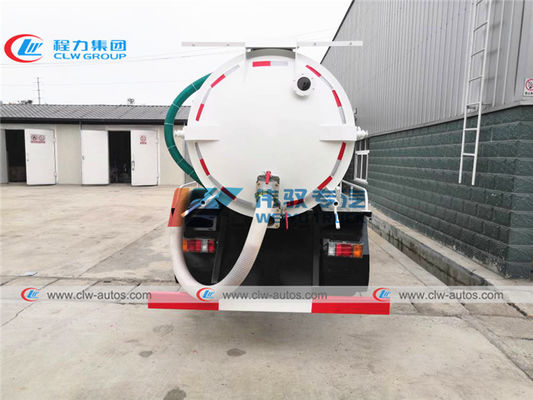

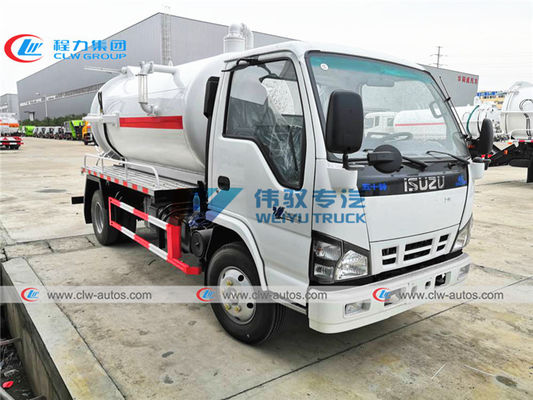

Reference picture

Left Hand Drive ISUZU 6CBM Sewer Vacuum Truck 0

Specification

Chassis parameters
Cabin	ISUZU 700P cabin/Left hand drive/4x2
	GVW(kg)		10000
	Wheelbase(mm)		3815 mm
	Dimensions(mm)		670023002700mm
	Front/Rear Axle loading(kg)		4000/7000 kg
	Wheel track (front/rear) (mm)		1680/1650 mm
	Front/Rear overhang(mm)		1110/1775 mm
	Approach/Departure angle(°)		21/15 °
	Max. driving speed(km/h)		105 km/h
	Clutch		Reinforced diaphragm clutch
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	7.00R16
Gear box	Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse
Engine	Brand		ISUZU engine
	Model		4KH1CN5HS
	Fuel type		Diesel
	Displacement(ml)		5193ml
	Power(kw)		96kw
	Horsepower(HP)		130 HP
	Max. Torque(N.m)		510
	Emission standard		Euro V
Sewage Suction Tanker
Sewage tank	Capacity(cbm/liters)		5CBM or 6CBM
	Tank material		Q235 carbon steel
	Thickness(mm)		5mm
	Working pressure		93% Vacuum and above
	Sewer Discharging outlet(mm)		100~150
	Tank is front tipping under function of oil cylinder
Sewage pump	Brand		China famous brand wate ring vacuum pump
	Model		SK-12
	Max. Suction Speed(m3/min)		12
	Working Speed(r/min)		970
	Max vacuum pressure		6700pa
	Power(KW)		18.5kw
Lamp	1-Revolving Warning Light on top(optional,not standard equipment) 2-Upper Arrow Warning light at truck rear(optional,not standard equipment) 6-Signal light at truck rear
Main parts	1. Suction hose 6meters 2. Water-gas separator； 3. Oil-gas separator 4. Four way valve; 5. Drain valve; 6. Sewer-observation valve(glass valve); 7. Anti overflow valve ; 8. Anti overflow warning device 9. Hydraulic control rear cover; 10. Tipping sewage tank body; 11. PTO; 12. Pressure Gauge; 13. Hand washing device.
Remarks	The color and painting is as request
