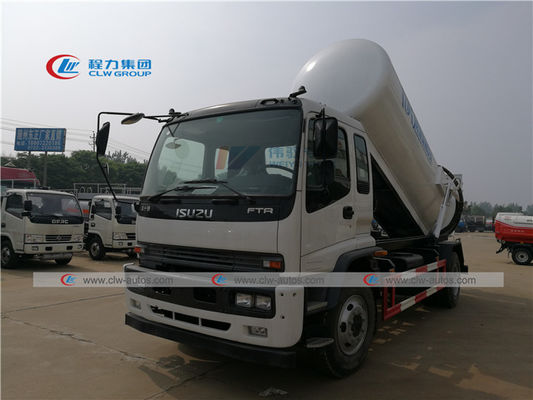

95km/h 10000 Liters ISUZU FTR Sewage Suction Truck

Büyük resim : 95km/h 10000 Liters ISUZU FTR Sewage Suction Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5078xe

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	Peşin ödeme alındıktan 30-35 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

marka:	Dongfeng,JAC,FOTON,HOWO,Shacman	Yakıt:	Dizel
Dingil açıklığı:	3300mm	Tank malzemesi:	Karbon çelik,
Kalınlık:	4 mm	Atık tankı boyutu:	6.000 litre, 6 metreküp, 6 m3
Deşarj:	Tank gövdesi hidrolik Kaldırma	Vakum pompası:	Çin ünlü markası/İtalya markası
Kanalizasyon emme borusu:	8 Metre	Emme süresi:	5 dakikadan az
Garanti:	Bir yıl	Renk:	Özelleştirilmiş logo
Teslimat süresi:	30 Gün
Vurgulamak:	ISUZU FTR Sewage Suction Truck , 10000 Liters Sewage Suction Truck , 10m3 sewer cleaning truck

10,000Liters ISUZU FTR Sewage Suction Truck Sewer Cleaning Tanker Truck

Product Description

1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Complete Vehicle Parameter
Vehicle	ISUZU vacuum sewage truck
Overall dimension (mm)	7850×2470×3200
Sewage tank (m3)	10
Gross vehicle weight (kg)	Appro×18000
Curb weight (kg)	Appro×8048
Payload (kg)	Appro×9757
Wheel base (mm)	4500
Max speed (km/h)	95
Chassis Parameter
Cabin	Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive
Drive form	4×2
Engine	Brand: ISUZU Model: 4HK1-TCG40, 190hp Type: diesel, turbocharged, 6 cylinder. Displacement: 5193ml Emission standard: Euro 4
Transmission	6 forward,1 reverse, manual operated
Tire model	10.00-20
No.of tires	6pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 10000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min.

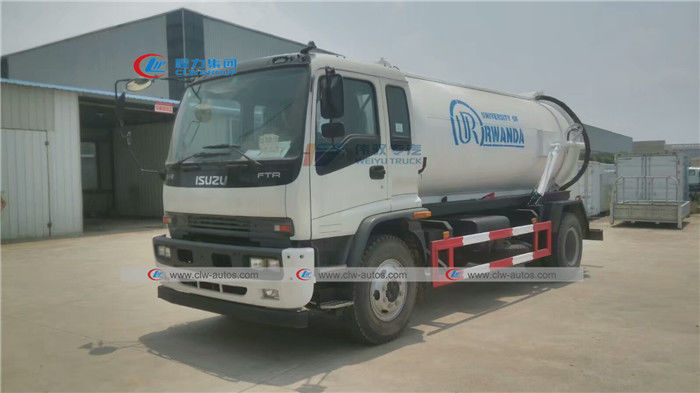

95km/h 10000 Liters ISUZU FTR Sewage Suction Truck 0

Sewage suction truck diagram

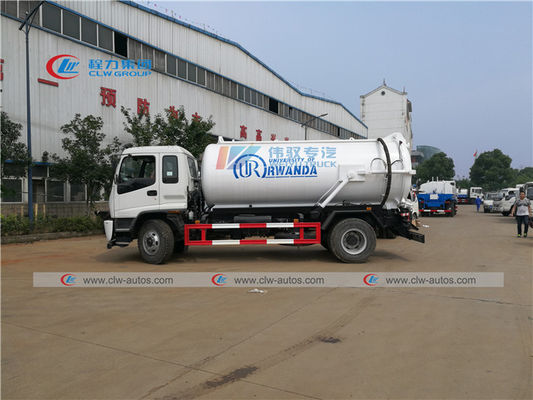

95km/h 10000 Liters ISUZU FTR Sewage Suction Truck 2

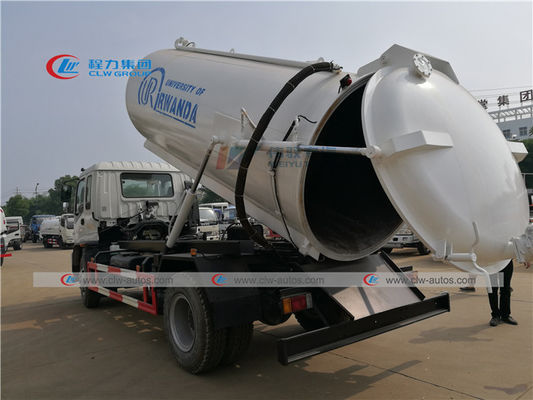

Discharge

Working Show

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Key words: Sewage suction truck, Sewer cleaning truck, Sewer Tanker Truck
