Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Jetting Truck With Italy Pump

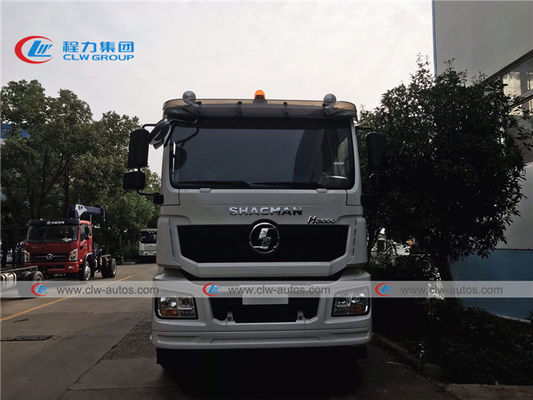

Büyük resim : Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Jetting Truck With Italy Pump

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5254SQXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	38520 usd/unit~89660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng, Shacman, Sinotruk Howo, CAMC, FAW, ISUZU	Sürüş Modeli:	LHD,RHD Kanalizasyon Temizleme kamyonu
MOTOR:	Dizel motorlu Kanalizasyon Temizleme kamyonu	Malzeme:	Q235 karbon çelik Kanalizasyon Temizleme kamyonu
Tanker boyutu:	16cbm 18cbm 20cbm 22cbm Kanalizasyon Temizleme kamyonu	Yükleme kapasitesi:	15ton 16ton 18ton 20ton Kanalizasyon Temizleme kamyonu
Tanker kalınlığı:	5mm veya 6mm Kanalizasyon Temizleme kamyonu	Vakum pompası:	Çin pompası, BP, Jurop, Moro Kaiser Kanalizasyon Temizleme kamyonu
Emiş Derinliği:	7 metre Kanalizasyon Temizleme kamyonu	Emme mesafesi:	50~100 Kanalizasyon Temizleme kamyonu
Orta:	kanalizasyon/çamur/septik emme Kanalizasyon Temizleme kamyonu
Vurgulamak:	Shacman H3000 Sewer Jetting Truck , 20m3 Sewer Jetting Truck , 22m3 Vacuum Suction Truck

Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Cleaning Tanker Truck with Italy Pump

Description--Sewer cleaning truck(also called high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewage to avoid secondary pollution.
Sewer cleaning truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

--Sewer jetter truck tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sewer jetter truck pump is optional for chinese brand single weilong pump,water ring suction pump,Italy brand BP,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;

---Quality chassis , perfect performance

---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

---Nice shape , rational structure

---Massive, durable ,perfect performance

---Prolonged service time

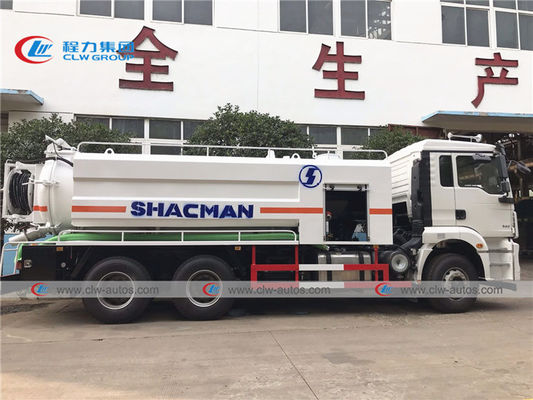

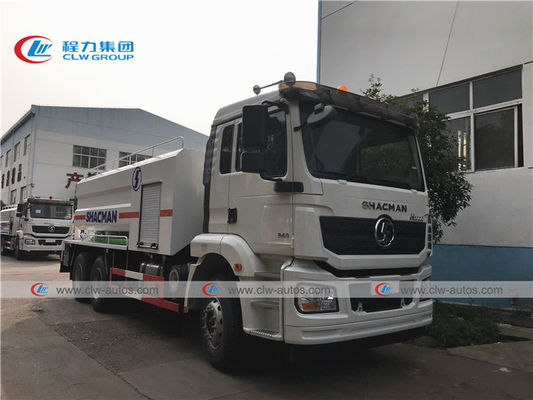

Reference picture

Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Jetting Truck With Italy Pump 0

Specification

Vehicle Description
Overall dimensions	920025503700mm
GVW	31000kg
Curb weight	13300kg
Chassis brand	Shacman
Traction type	8*4, left/right hand drive
Chassis Description
Chassis model	SX1315
Cab	Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver’s seat, air conditioning system, electric windows, central lock.
Wheelbase	1800+4575+1400mm
Tire specification	12.00R20
Tire quantity	12+1 units
Engine	Engine model	WP10.340E22
	Emission level	Euro 2 (EGR)
	Displacement/output	8800ml/250kw
	Horse power	340hp
Gear box	Model	10JSD180
	Number of gears	10 forward gears& 2 reverse
Brake system	Service brake	Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake	Engine exhaust brake
	Park brake	Potential springs pressing on middle and rear wheels
Axle	Front	MAN 7.5T
	Rear	MAN 13T-double reduction, ratio 4.769
Suspension	Leaf spring
Fuel tanker	Type	Aluminium fuel tanker
	Capacity	400L

Total volume	22,000L
Fecal tank	14,000L 4mm thickness tank With a man hole With a 360 degree rotation hose on top
Water tank	8000L 5mm thickness tank
High pressure pump	Made in china pump : pressure is 22Mpa , flow rated is 215L/min
Fecal pump	Water cycle :2BE204 Theoretical pumping speed of sewage: 20m3/min
Fecal hose (top)	The hose length is 5meters , the diameter is 108mm The hose can rotation 360 degree
Back reel	The reel length is 60meters The reel diameter is 19mm

Why do you choose us for vacuum sewer cleaning truck?

1.well experienced truck production company to offer high quality and competitive-price sewer cleaning tanker truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to supply you customized truck with effective cost;
3.Exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available

Related product

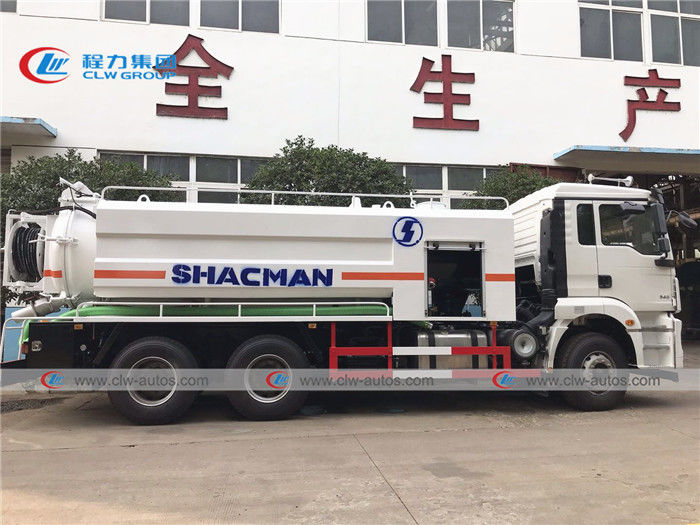

Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Jetting Truck With Italy Pump 4

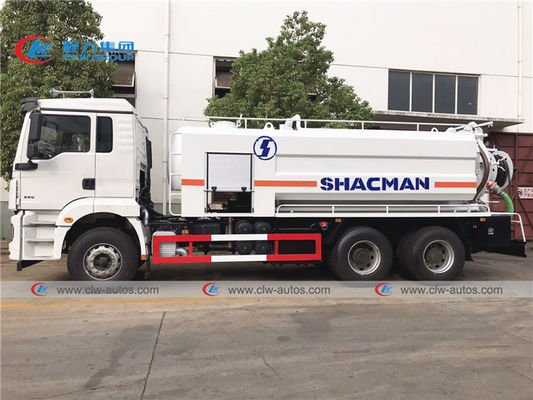

Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Jetting Truck With Italy Pump 5

Shacman H3000 6X4 20m3 22m3 Vacuum Sewer Jetting Truck With Italy Pump 6

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck
