ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump

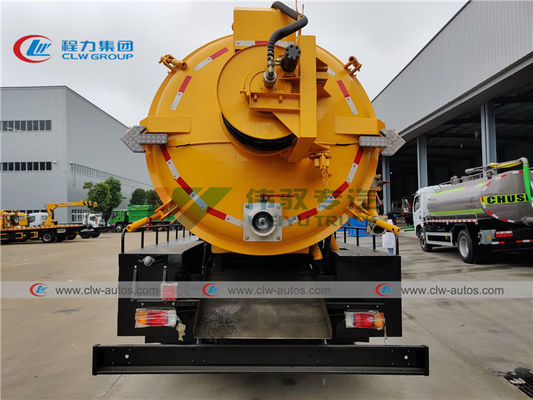

Büyük resim : ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5168WSLXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	12520 usd/unit~39660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödeme alındıktan sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng, Shacman, Sinotruk Howo, CAMC, FAW, ISUZU vakum jeti kamyonu	Sürüş Modeli:	LHD, RHD vakumlu jet kamyonu
MOTOR:	Dizel motorlu vakum jeti kamyonu	Malzeme:	Q235 karbon çelik vakum jeti kamyonu
Tanker boyutu:	12000Litre 12Ton 12m3 3000 galonvakum jeti kamyonu	Yükleme kapasitesi:	12 ton 12 ton 12 ton vakum jeti kamyonu
Tanker kalınlığı:	5mm veya 6mm vakum jeti kamyonu	Vakum pompası:	Çin pompası, BP, Jurop, Moro Kaiser vakum jeti kamyonu
Emiş Derinliği:	8 metre vakum jeti kamyonu	Emme mesafesi:	50~100 vakumlu jet kamyonu
Orta:	Kanalizasyon/çamur/septik emme vakum jeti kamyonu	Su deposu:	4 m3,4000 litre, 4 metreküp
Kanalizasyon tankı:	7m3,7000 litre,7 metreküp
Vurgulamak:	12T Sewer Jetter Truck , ISUZU FTR Sewer Jetter Truck , Jurop PN130D Pump Sewer Vacuum Truck

ISUZU FTR 12,000Liters 12Tons Vacuum Sewer Jetting Flushing Cleaning Truck With Jurop PN130D
Description--vacuum jetting truck(also called jetting and vacuum truck,sewer cleaning truck with jetting equipment,sewer flushing truck,sewer vacuum truck,septic truck,mud dredging and cleaning truck,sewer cleaning truck, high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, sewer,septic,sewage to avoid secondary pollution.

vacuum jetting truck with with two functions as follows,

High pressure sewage cleaning:

original for imported Italian HPP high-pressure pump, ESL122/130, pressure: 16MPA, flow: 130L/min;

equipped with high-pressure pipe 60 meters, 10 nozzles

Sewage suction part:

with sewage viewing window, self draining outlet, a 7-meter sewer suction pipe, vacuum sewage suction pump.

High suction efficiency, self-priming, self-draining and direct irrigation.

Pumping time for full tank: ≤5min, suction range: ≥8m.

long service life, fast working speed, simple operation and convenient transportation.

vacuum jetting truck is mainly used to clean urban sewers, pipelines, sediments, and dredging of dead-angle mud ditches. It can also be used to clean industrial drainage pipes and walls, etc. It can also be used for sprinkling, transporting water and washing roads, and can be used for fire fighting in emergency. .

---Quality ISUZU FTR chassis , perfect performance

---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

---Nice shape , rational structure

---Massive, durable ,perfect performance

---Prolonged service time

-- Customied truck painting with your company logo

Reference picture

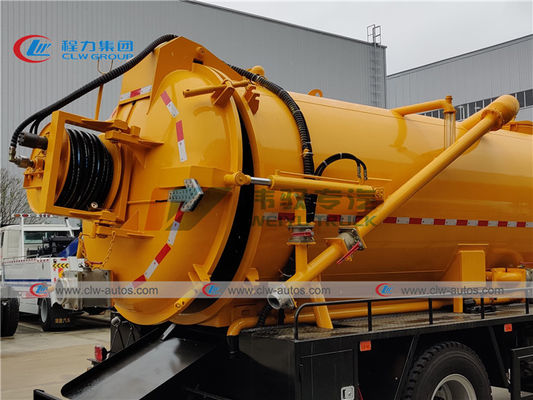

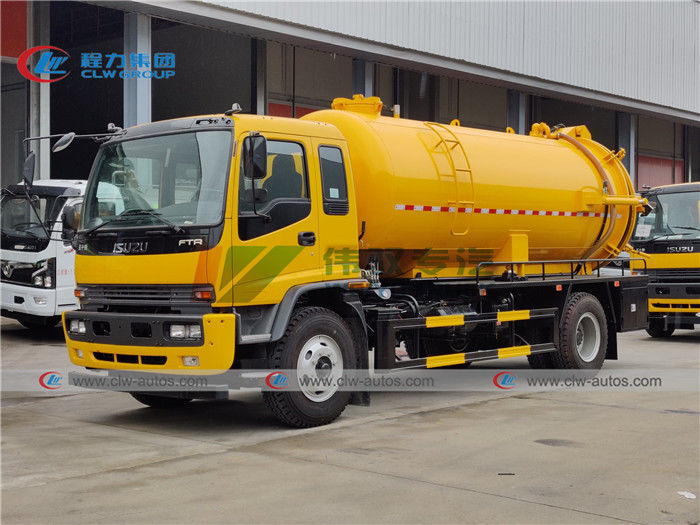

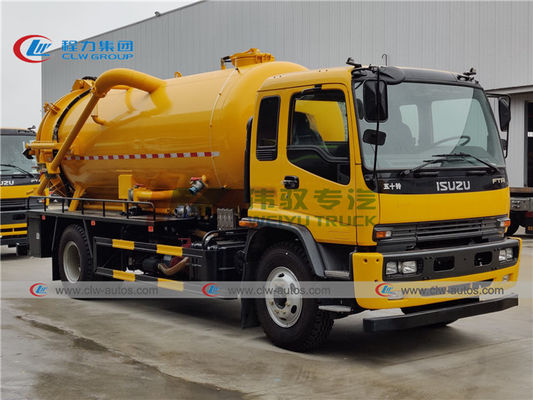

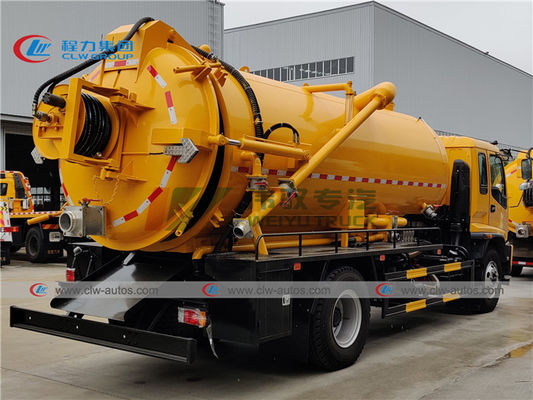

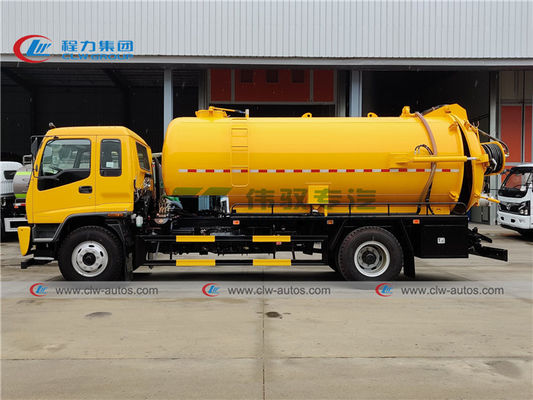

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 0

ISUZU FTR vacuum jetting truck with jurop pump PN130D

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 3

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 4

How do we produce ISUZU Vacuum sewer jetting truck?

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 5

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 6

Dongfeng 5000liters or 8000liters Vacuum sewer jetting truck

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 7

Howo 8000liters Sewer Dredging Truck for high pressure sewer cleaning service as follows,

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 8

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 9

Specification of ISUZU Vacuum Jetting Truck

The Parameters of ISUZU vacuum jetting truck
Overview
Name	Vacuum jetting truck
Dimension(LxWxH)	8990X2500X3380(mm)
Total Mass	16050Kg
Rated Payload	8000Kg
Kerb Weight	8050Kg
Passenger	3
Approach/Departure Angle	19/15
The Parameters of Chassis
Manufacture/Model	ISUZU, QINGLING/QL5160CCY9QFRJ
Driving Type	4*2 left hand drive
Wheel Base	4500 mm/4700mm
Gearbox	MLD Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1506/1466(mm)
Tyre	10.00R20
The Number of Tyre	6+1(spare tyre)
Front/ Rear Suspension	1032/1658(mm)
Leaf Spring Number	8/9+5, 6/8+4
The Paremeters of Engine
Manufacturer/Model	ISUZU/4HK1-TC50
Rated Power	205hp/139kw
Fuel Type	Diesel oil
Displacement/Capacity	5193mL
Emission Standard	Euro 5
Cylinder	510N.m
Velocity	2600rpm
The Parameters of Equipment
Tank Capacity	Water tank 4 m3 and sewage tank 7m3
Vacuum Pump Rotation Speed	800r/m-1400r/m
Max. Suction Lift	>6m
Vacuum	>500mmHg
Rotation Direction	Clockwise
Time for full sucktion	<5min
Common Accessories	Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pressure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc.

ISUZU FTR 12T Vacuum Sewer Jetter Truck With Jurop PN130D Pump 10

Why do you choose us for Vacuum jetting truck?

1.well experienced truck production company to offer high quality and competitive-price Sewer Dredging Truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
