Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive

Büyük resim : Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5257SQXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	22520 usd/unit~39660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödemelerin alınmasından sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng, Shacman, Sinotruk Howo Vakumlu Çamur Kamyonu	Sürüş Modeli:	LHD, RHD sağdan direksiyonlu Vakumlu Çamur kamyonu
MOTOR:	Dizel motorlu Vakumlu Çamur kamyonu	Malzeme:	Q235 karbon çeliği / paslanmaz çelik Vakumlu Çamur kamyonu
Tanker boyutu:	10000Litre 10m3 3000 galon 12m3 12000litre Foseptik Kamyon	Yükleme kapasitesi:	10 ton 12 ton 15 ton Vakumlu Çamur kamyonu
Tanker kalınlığı:	5mm veya 6mm Vakumlu Çamur kamyonu	Vakum pompası:	Çin pompası,BP,Jurop,Moro Kaiser Septik Kamyon
Emiş Derinliği:	6 metre Septik Kamyon	Emme mesafesi:	DN50 veya DN100 2" veya 4"Feptik Kamyon
Orta:	kanalizasyon/çamur/septik emme Septik Kamyon	Sürüş tipi:	4X4/6X6/Off road/6WD askeri Vakumlu Çamur kamyonu
Vurgulamak:	12000L Sewer Cleaning Truck , 10000L Sewer Cleaning Truck , 6X6 Sewer Vacuum Truck

Sinotruk Howo 6X6 Full Wheel Drive 10000 liters 12000L Vacuum Sludge Tanker Truck for UN

Description--Vacuum sludge truck(also called sludge truck,sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
Vacuum sludge truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of feces, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

- tanker material optional for carbon steel or stainless steel 304;--Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;--Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP 13500,Jurop,Keiser Moro imported brand;--Suction speed less than 10min and and discharge speed less than 8 min;--horizontal suction distance: within 80 meters;--Vertical suction depth:within 9 meters;

---Quality chassis , perfect performance

---Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

---Nice shape , rational structure

---Massive, durable ,perfect performance

---Prolonged service time

Reference picture

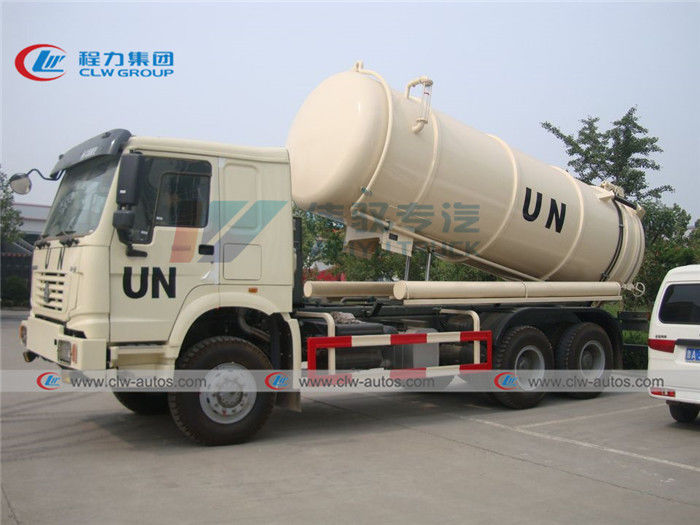

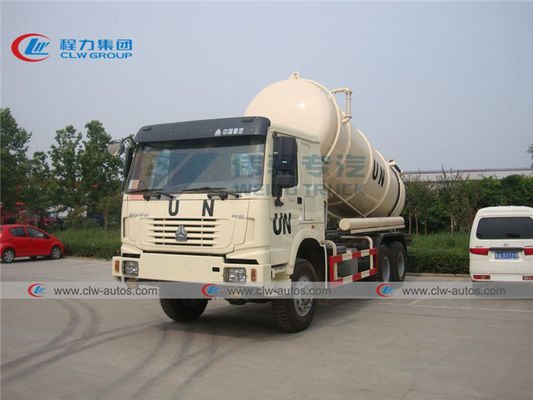

front view of howo 6X6 vacuum sludge truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 0

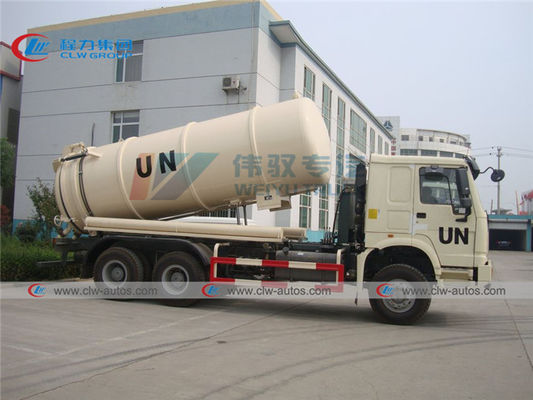

side view of howo 6X6 vacuum sewer truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 1

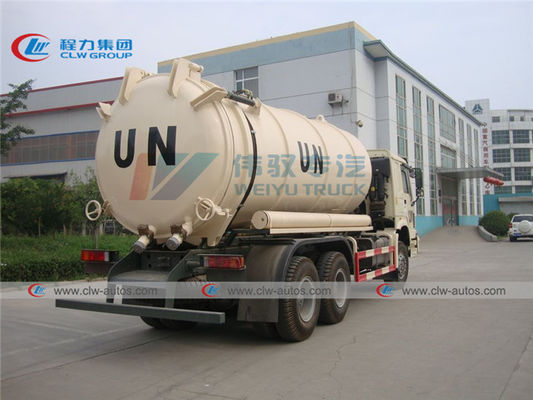

Howo 6X6 high pressure sewer jetting truck for Brunei

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 3

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 4

Italy BP/Battioni Pagani vacuum pump

Vacuum sludge tank is optional for another design with water tanker and high pressure flushing and washing device for high pressure septic cleaning service as follows,

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 6

Specification

Item No.	Parameters
Overall Dimension	8600x2500x3530 mm
Gross Vehicle Weight	25000 kg
Curb Weight	12500 kg
Loading Weight	12500 Kg
Wheel Base	3800+1400mm
Front/rear Tread	1430/2200 mm
Approach/Departure Angle	19/20 degree
Front Axle	HF7 Drum, 7 Tons
Rear Axle	ST16, 16 tons, Ratio 5.73
Engine	SINO Truck Diesel WD615.47, Watering Cooling, Four Stroke, 6 Sylinder in Line, Direct Injection
Engine horsepower	371 HP Euro II
Displacement	9.726 L(Diesel)
Full loading Fuel Consumption Rate	Maximum 193 g/kW.h
Max Driving Speed	80 km/h
Gear Box	HW19710 Transmission,10 Forward Gear & 2 Reverse Gear
Steering Gear	ZF8118, hydraulic steering with power assistance
Power Divider	#2000
Cabin	HW76 Standard Cabin, RHD, 1 Sleeper, Air Conditioner, 3 Passengers,
Fuel Tank	400 Liters
Tire	12.00R20 (10 pieces with one spare)
Tank Capacity	10m3/12m3/15m3
Tank Material	Material: Q235 high tension steel, 6mm Tank body and End Plate, With Hydraulic Controlled Rear Door and Middle lifting.
Vacuum Suction Pump	Italian Made Jurop Pump PN84D or Chinese yifeng water ring vacuum pump, 4" diameter Rubber tube in 6 meters long, Vertical Suction Range 6 meters under ground level, Full Tank Suction time about 9 minutes, Vacuum Pressure -0.092Mpa

Structure of a vacuum sludge truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 9

Why do you choose us for vacuum sludge truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewage sludge truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available

Related product

Right hand drive howo 290hp 10,000liters vacuum sludge truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 10

Right hand drive FAW J5 10,000liters vacuum sludge truck

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 11

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 12

Left hand drive dongfeng cabin 10,000liters vacuum sludge truck for Uzbekistan,Kazakhstan,Kyrgyzstan

Левосторонняя кабина dongfeng с вакуумным отсосом сточных вод емкостью 10 000 литров для Узбекистана, Казахстана и Кыргызстана

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 13

ISUZU FTR 10,000liters vacuum sludge truck to Phillippines

Sinotruk Howo 6X6 10000L 12000L Sewer Cleaning Truck With Full Wheel Drive 14

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
