Tipper Truck Shacman D'long F2000 6x4 290HP Heavy Duty Dump Truck Hot Sale
A dump truck, known also as a dumper truck or tipper truck, is used for transporting dumps and taking dumps, big ones(such as sand, gravel, or demolition waste) for construction as well as coal. A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. In the UK, Australia, South Africa and India the term applies to off-road construction plant only, and the road vehicle is known as a tipper lorry (UK, India), tip-truck, tip-trailer, tipper truck, or tipper (Australia, New Zealand, South Africa).
Product Description
1. Dump truck brand:SINOTRUK HOWO,CAMC,SHACMAN,JAC,NORTH-BENZ,ISUZU,FOTON...
2. Tipping Model:Front-tipping,middle tipping dump truck,HYVA or Chinese brand hydraulic oil cylinder brand
3. High tensile steel for dumper materia,4mm,6mm,8mm, 10mm oer as per client's request and purpose.
4. Used in construction site for transportation of mineral,stone,sand and so on.
Specification
| Condition |
New condition/Left hand drive/6x4 |
| Chassis |
Brand |
SHACMAN |
| Model |
F2000 |
| Curb weight(kg) |
12500 kg |
| Axle loading(Front/Rear)(kg) |
7500/18000 kg |
| Wheelbase(mm) |
3800+1350 mm |
| Dimensions(mm) |
8329*2500*3450 mm |
| Wheel track (front/rear) (mm) |
2035/1850 mm |
| Front/Rear overhang(mm) |
1525/1654 mm |
| Approach/Departure angle(°) |
28/30 |
| Max. driving speed(km/h) |
77 km/h |
| Clutch |
Reinforced diaphragm clutch |
| Fuel tank volume(L) |
300 L |
| Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
10pcs with one spare tire |
| Specifications |
11R22.5 |
| Transmission |
FAST 9JS135, 9 Forwards and 1 reverse |
| Cab |
It can accommodate three people, With Air conditioner. |
| Engine |
Fuel type |
Diesel |
| Displacement(ml) |
9726 ml |
| Power(kw) |
213kw |
| Horsepower(HP) |
290 HP |
| Cylinder number |
6 |
| Emission standard |
Euro 2 |
| Upper |
Size(mm) |
5600*2300*1500 mm |
| Max. Loading weight(kg) |
25 tons |
| Button Thickness(mm) |
8.0 mm |
| Side plate Thickness(mm) |
6.0 mm |
| Material |
Q235 Carbon steel |
| Tipping type |
Middle Tipping |
| Oil cylinder brand |
China local brand |
| Oil cylinder size(mm) |
220 mm |
| Remarks |
Color can be customized |

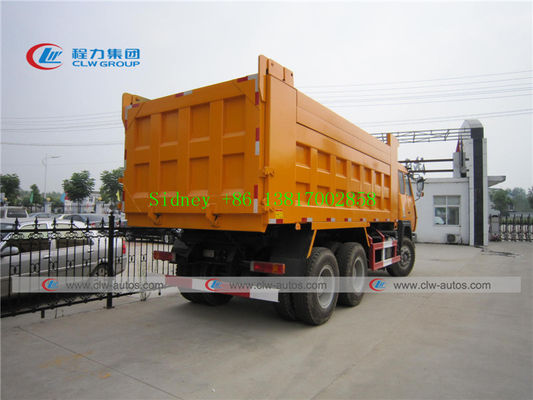

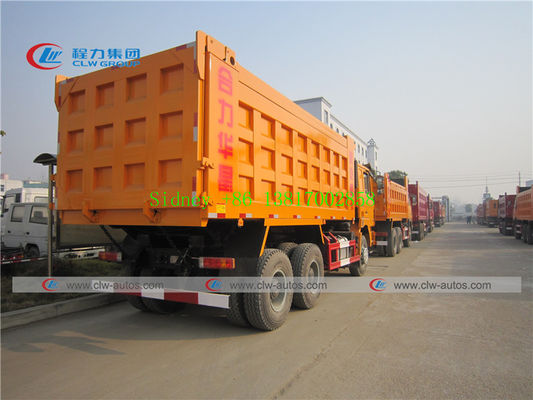

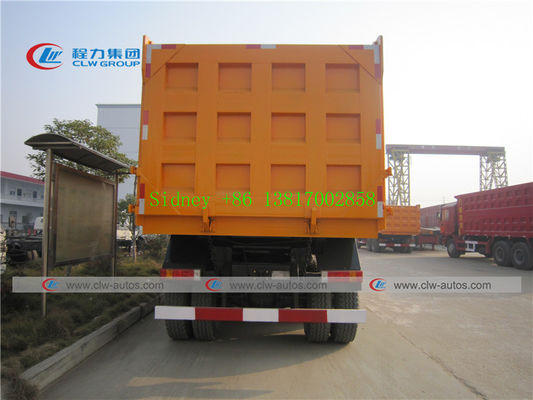

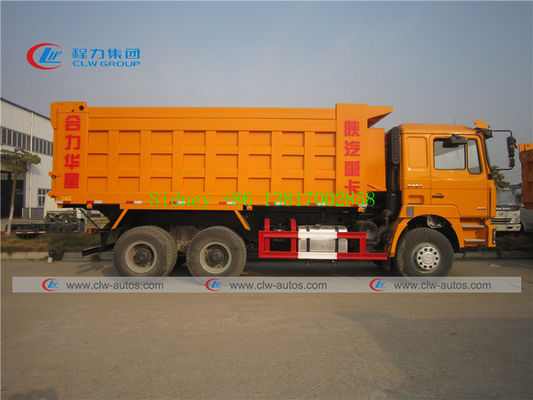

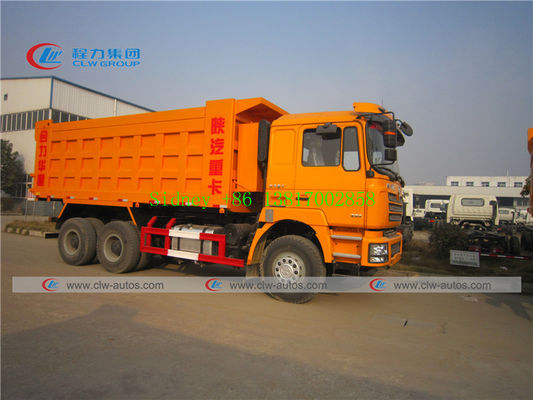

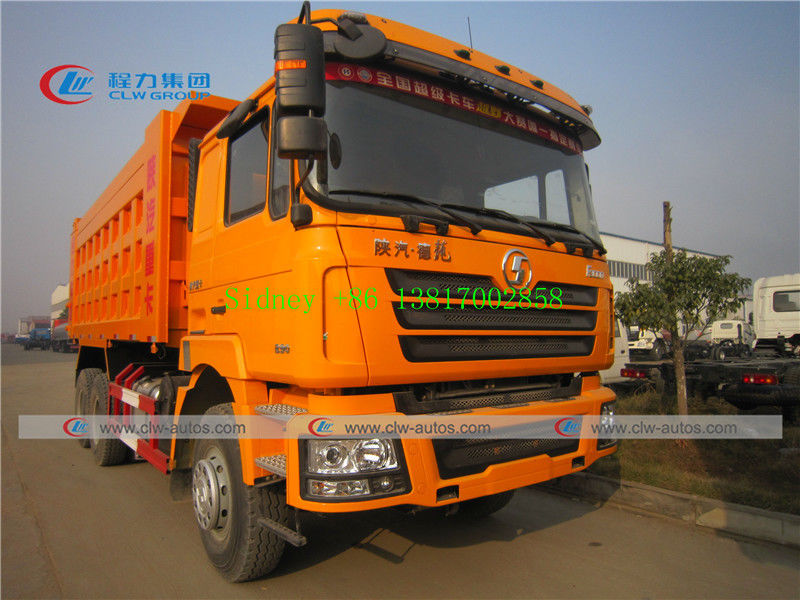

Products Show
Working Scenario
Factory overview
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs. Quick feedback to solve your questions.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
④Related Accessories and spare parts offered,no future worries. Regular customer after-sale visiting.
FAQ
Q1: What kinds of dump trucks I can order from your company?
A: There are various sizes and types of dump trucks,you can contact us and tell your request.We will recommend you suitable product.
Q2:: Have you supplied dump trucks to any overseas companies?
A: Yes,we offered dump trucks to many Africa and south-east Asian,south-American countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan city,Hubei Province.Wuhan is about two hours' plane and four hours' high speed train from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
