Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck

Büyük resim : Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW504SQXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	12520 usd/unit~25660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödemelerin alınmasından sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng, Shacman, Sinotruk Howo, CAMC, FAW, ISUZU vakum pompası kamyonu	Sürüş Modeli:	LHD, RHD vakum pompası kamyonu
MOTOR:	Dizel motorlu vakum pompası kamyonu	Malzeme:	Q235 karbon çelik vakum pompası kamyonu
Tanker boyutu:	10000Litre 10Ton 10m3 3000 galon vakum pompası kamyonu	Yükleme kapasitesi:	5 ton 6 ton 8 ton 10 ton vakum pompası kamyonu
Tanker kalınlığı:	5mm veya 6mm vakum pompası kamyonu	Vakum pompası:	Çin pompası, BP, Jurop, Moro Kaiser vakum pompası kamyonu
Emiş Derinliği:	8 metre vakum pompası kamyonu	Emme mesafesi:	DN50 veya DN100 2" veya 4"vakum pompası kamyonu
Orta:	Kanalizasyon/çamur/septik emme vakum pompası kamyonu
Vurgulamak:	ISUZU Sewage Pump Truck , 4000L Sewage Pump Truck , 98HP Vacuum Pump Truck

Euro V 4CBM 4000L 98HP ISUZU Vacuum Sewage Pump Truck
Description-- Vacuum pump truck(also called pumping service truck,vacuum septic tank,vacuum tanker truck,sewer cleaning truck, vacuum septic truck,septic cleaner truck,high pressure sewer cleaning truck,sewage suction truck,vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,vactor sewage truck,jet vac drain cleaning truck,septic jetter truck,sewage jetting truck) is one of the new sanitation type vehicle to collect,clean and transport sludge, septic,fecal,sewer,sewage to avoid secondary pollution.
ISUZU vacuum pump truck is with advantage of self-suction from discharge, fast working speed, large capacity, convenient transportation suitable for the collection and transport of water oil,waste water,fecals, mud, crude oil and other liquid materials.

Also with advantage of large suction force and long suction distance, especially suitable for the suction, delivery and discharge of silt in the sewer, especially for the suction of the sewer mud, stones, bricks and other large objects.

Feature

- tanker material optional for carbon steel or stainless steel 304;-- Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm;-- Sludge Tanker Truck's pump is optional for chinese brand Yifeng or weilong pump,water ring suction pump,Italy brand BP,Jurop,Moro Keiser imported brand;-- Suction speed less than 10min and and discharge speed less than 8 min;-- horizontal suction distance: within 80 meters;-- Vertical suction depth:within 9 meters;

--- Quality chassis , perfect performance

--- Quality engine , super powerful , reliable performance ,no overhaul within 100,000km.

--- Nice shape , rational structure

--- Massive, durable ,perfect performance

--- Prolonged service time

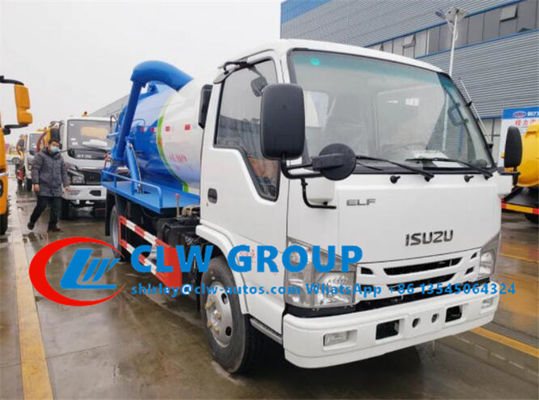

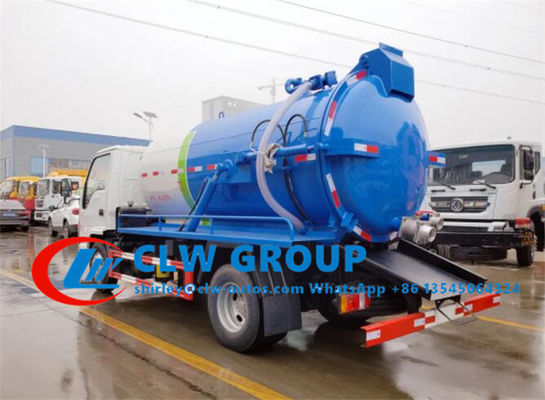

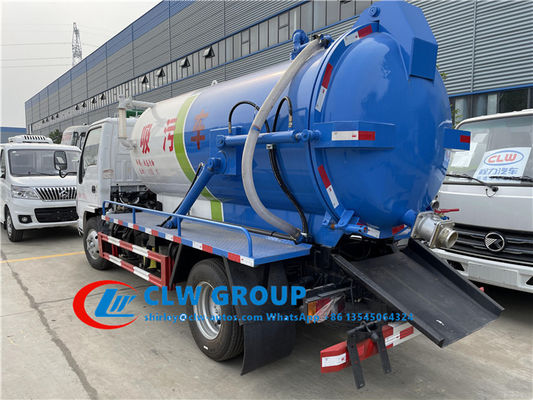

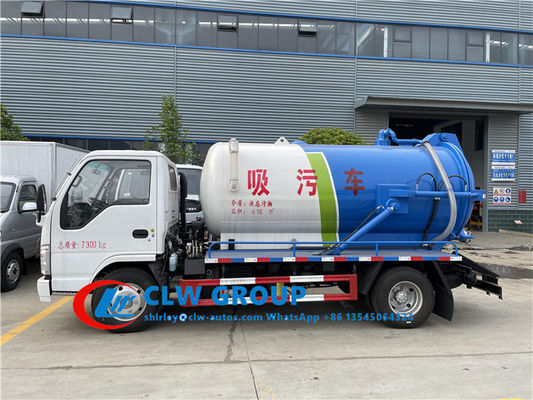

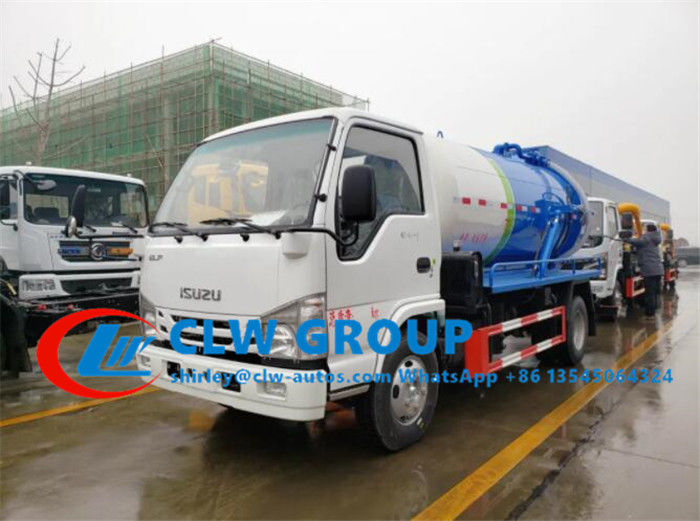

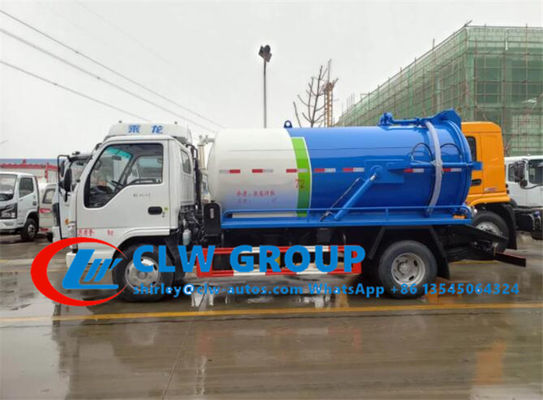

Reference picture of 4000L isuzu vacuum pump truck as follows

Wanna get a detailed video of above isuzu 4tons pumping service vacuum truck?Click here

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 2

ISUZU VACUUM PUMP truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 4

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 5

Specification

Chassis parameters
Cabin	ISUZU 100P cabin/Left hand drive/4x2
	Loading weight(kg)		3800kg
	Wheelbase(mm)		3360 mm
	Dimensions(mm)		590019002400mm
	Front/Rear Axle loading(kg)		2000/4000 kg
	Wheel track (front/rear) (mm)		1770/1586 mm
	Front/Rear overhang(mm)		1210/1490 mm
	Approach/Departure angle(°)		24/12 °
	Max. driving speed(km/h)		100 km/h
	Clutch		Reinforced diaphragm clutch
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	7.00R16
Gear box	Manual type,ISUZU MSB transmission/ 5 forward & 1 reverse
Engine	Brand		ISUZU engine
	Model		4KH1CN5LS
	Fuel type		Diesel
	Displacement(ml)		2999ml
	Power(kw)		72 kw
	Horsepower(HP)		98 HP
	Max. Torque(N.m)		220
	Emission standard		Euro V
Sewage Suction Tanker
1) Sewage tank and water tank material are carbon steel, tanker body thickness 5mm, tank head thickness 6mm. 2) Equipped with 10pcs different thrust cleaning nozzle, suitable for cleaning and dredging of different sewer. 3) Equipped with sludge window,self flow outlet and 1pc sludge suction tube length 6m~8m. 5) Vacuum water pump Model : SK-6 Type : water ring pump Vertical suction: 9m Flow : 1.5m3/min

Structure of a vacuum pump truck

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 7

Why do you choose us for ISUZU vacuum truck?

1. well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2. Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3. Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4. One Year Guarantee for trucks and spare parts at factory price whenever needed.

5. Timely shipment

6. Overseas training and after sales service is available

Related product

Right hand drive FAW J5 10,000liters septic cleaning truck for Kenya client

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 8

LHD howo 266hp 10,000L 10tons vacuum pump truck for south America client

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 9

Left hand drive dongfeng cabin 10,000liters septic cleaning truck for Uzbekistan,Kazakhstan,Kyrgyzstan

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 10

ISUZU FTR 10,000liters septic vacuum truck to Phillippines

Euro V Diesel Engine 4000L 98HP ISUZU Sewage Pump Truck 11

Key word:vacuum truck,vacuum tanker,sucker truck,sewer sucker,hydro-vac,vac-trucks,exhauster truck,sewer vacuum truck,septic suction truck,sewage vacuum truck,sewer cleaning truck,sewage tanker,cessipit emptier,gully emptier,drainage suction truck,vacuum truck,sewage truck,waste vacuum truck,drainage treatment truck,dongfeng sewage truck,ISUZU sewage truck,howo sewage truck
