Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
| Şasi markası: | Dongfeng, Foton, Sinotruk HOWO, Isuzu vb. | Sürücü modeli: | Sağdan Direksiyonlu ve Soldan Direksiyonlu |
|---|---|---|---|
| Dingil açıklığı: | 2456 mm | Motor gücü: | 68 HP |
| Su Deposu Kapasitesi: | 2 metreküp 2m3 2 metreküp 2000 litre 2t 3t | Dışkı Tankı Kapasitesi: | 2 metreküp 2m3 2 metreküp 2000 litre 2t 3t |
| Tank malzemesi: | 5mm karbon çeliği | Vakum pompası: | Ünlü Uluslararası Marka |
| Dışkı Emme Borusu: | 5m | Emme süresi: | 5 dakikadan fazla değil |
| Etkili emme aralığı: | 8m'den Az Değil | Logo ve Desen: | Müşterinin isteği olarak |
| Garanti: | 1 yıl | ||
| Vurgulamak: | 4x2 Fecal Suction Truck,Dongfeng Fecal Suction Truck,4x2 RHD Vacuum Sewage Suction Truck |
||
Description:
A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.
Product Specification
| The Parameters of 2M3 Dongfeng Mini Fecal Suction Truck | |
| Overview | |
| Name | Dongfeng Mini Fecal Suction Truck |
| Dimension(LxWxH) | 4201X1475X1870(mm) |
| Total Mass | 3865 Kg |
| Rated Payload | 3000 Kg |
| Kerb Weight | 865 Kg |
| Passenger | 2 |
| Approach/Departure Angle | 33/24 |
| The Parameters of Chassis | |
| Manufacture/Model | Dongfeng |
| Driving Type | 4*2 right hand drive |
| Wheel base | 2456 mm |
| Gearbox | Six speed lever with five speed forward and one reverse, manual |
| Front/Rear Track | 1260/1260(mm) |
| Tyre | 6.00-13 |
| The Number of Tyre | 4+1(spare tyre) |
| Front/Rear Suspension | 795/850(mm) |
| Leaf Spring Number | 3/5 |
| The Paremeters of Engine | |
| Manufacturer/Model | Laidong/4801QB |
| Rated Power | 68hp |
| Fuel Type | Diesel oil |
| Displacement/Capacity | 1809ml |
| Emission Standard | Euro 6 |
| Cylinder | Straight/4/intercooling |
| Max. torque | 170N.m |
| Velocity | 3200rpm |
| The Parameters of Equipment | |
| Tank Capacity | 2-3 M3 / 2000-3000Liters |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
| Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Length of Pipe | 5m |
| Time for full sucktion | <5min |
| Basic Equipment | Vacuum pump, ball valve, 5 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc. |
| Optional Equipment | Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc. |

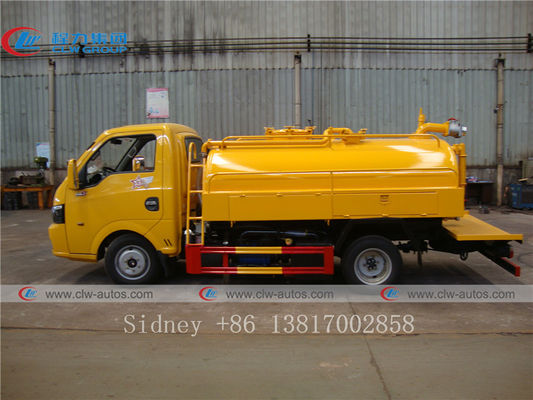

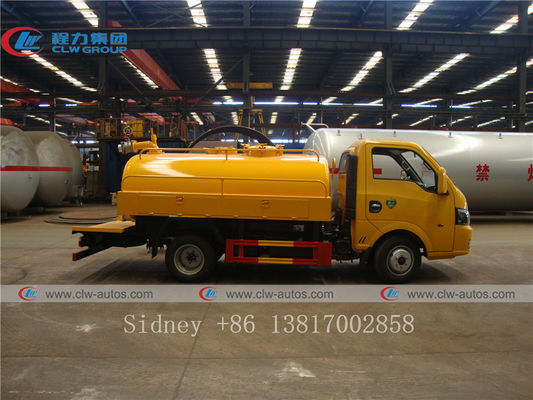

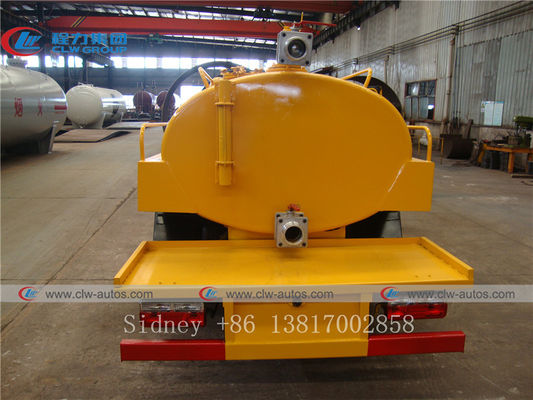

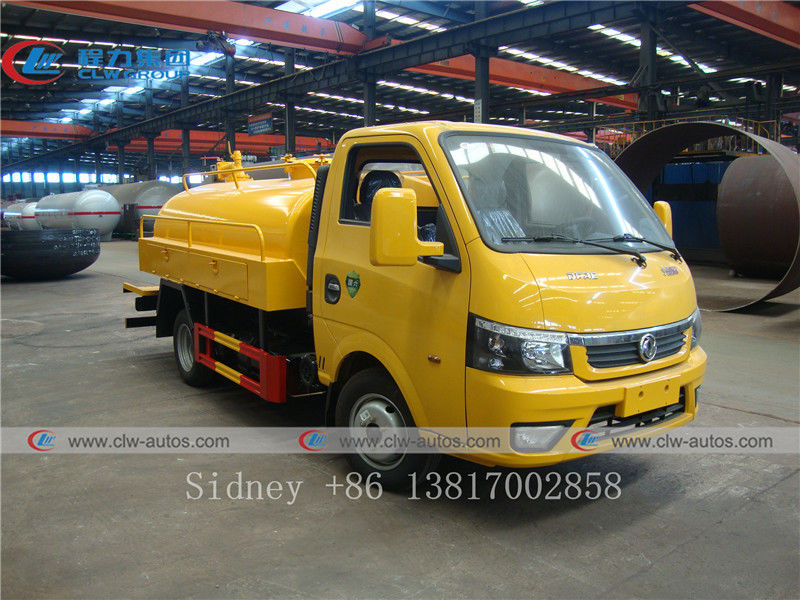

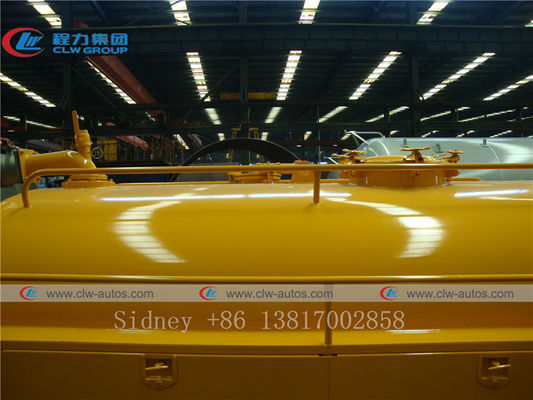

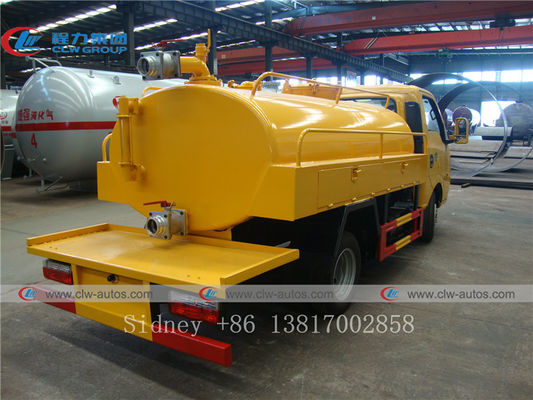

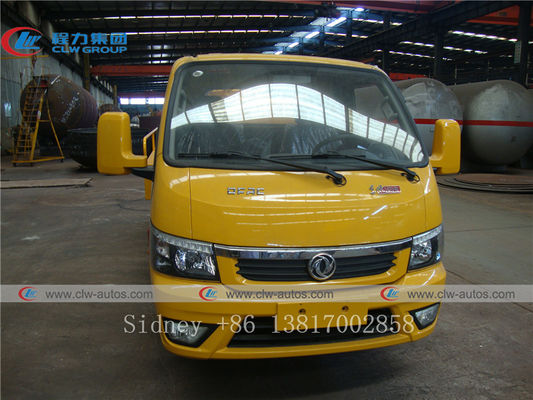

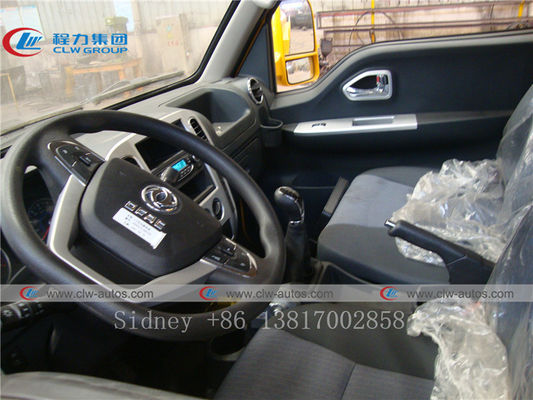

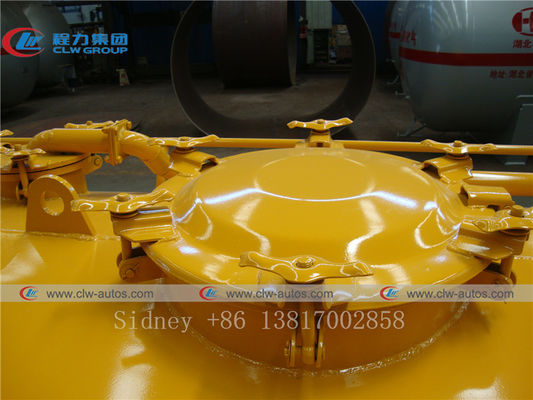

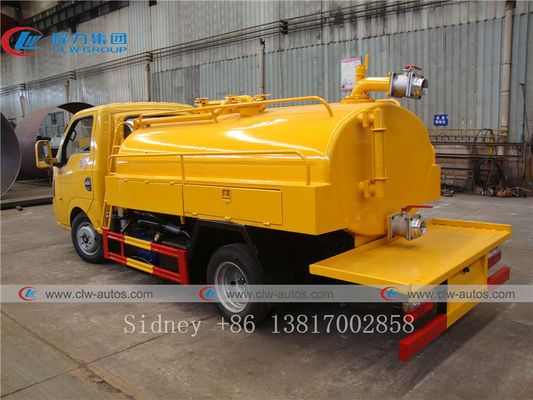

Reference Photos![]()
![]()
![]()
![]()
Main Structure![]()
Working Scene![]()
Delivery and Shipment![]()
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Fecal Suction tank we can get from your company?
A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
