Sinotruk HOWO 6*4 15cbm16cbm18cbm20cbm Sewage Vacuum Suction Truck
Product Description
1. Chassis:
1) Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2) Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
2. Tanker body:From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Product Specification
| Technical Parameters |
| Overview |
| Name |
Sewage Suction Truck |
| Dimension(LxWxH) |
9950X2490X3350(mm) |
| Total Mass |
29005 Kg |
| Rated Payload |
20000 Kg |
| Kerb Weight |
9005 Kg |
| Passenger |
3 |
| Approach/Departure Angle |
32/14 |
| The Parameters of Chassis |
| Manufacture |
Howo |
| Driving Type |
6*4 left/right hand drive |
| Wheel Base |
4300+1350 mm |
| Gearbox |
Seven/Eight speed lever with six/seven speed forward and one reverse, manual |
| Front/Rear Track |
1940/1860/1860(mm) |
| Tyre |
10.00-20 |
| The Number of Tyre |
10+1(spare tyre) |
| Front/Rear Suspension |
1245/3055,1245/3005(mm) |
| Leaf Spring Number |
8/13,8/12 |
| The Paremeters of Engine |
| Rated Power |
210hp/155kw |
| Fuel Type |
Diesel oil |
| Displacement/Capacity |
5900ml |
| Emission Standard |
Euro3 |
| Cylinder |
Straight/6/intercooling |
| Max. torque |
700N.m |
| Velocity |
2500rpm |

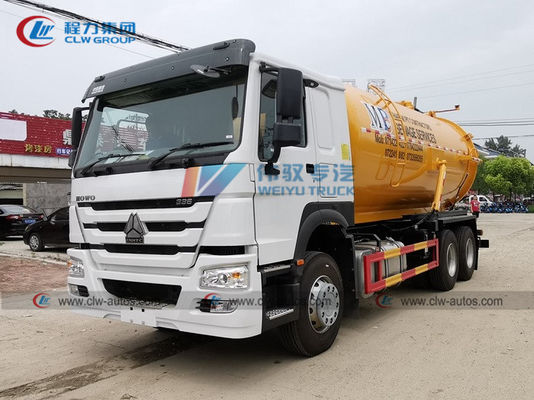

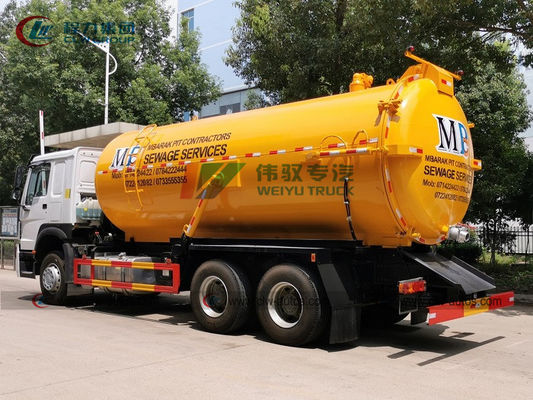

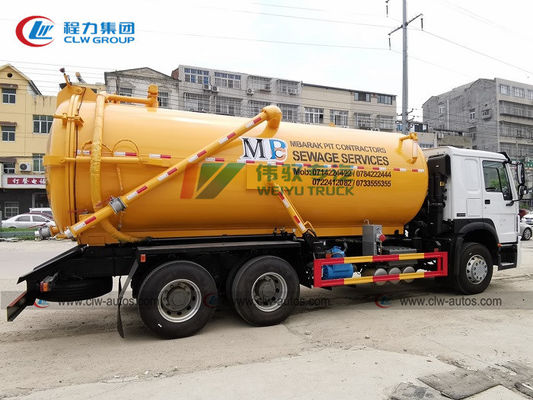

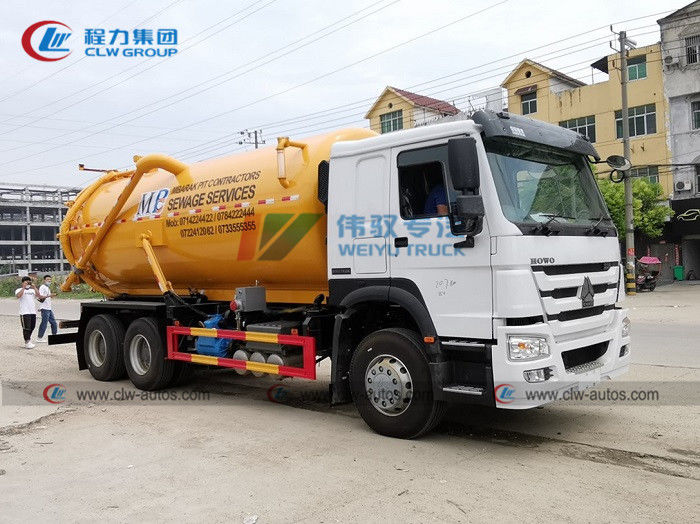

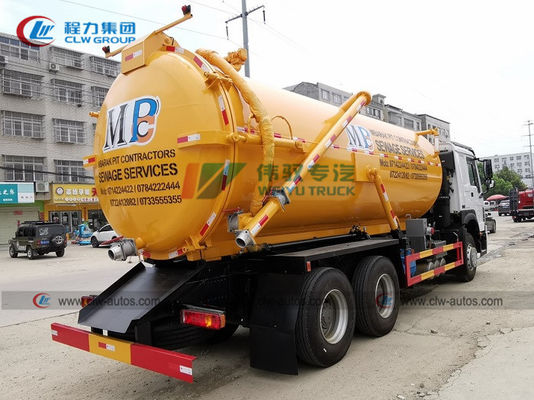

Reference Photos
We provide package solution and customized drawding for every sewage vacuum suction truck
Working Scene
After-sales Service
1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.
FAQ
Q1: What size sewage suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.
Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
