5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck

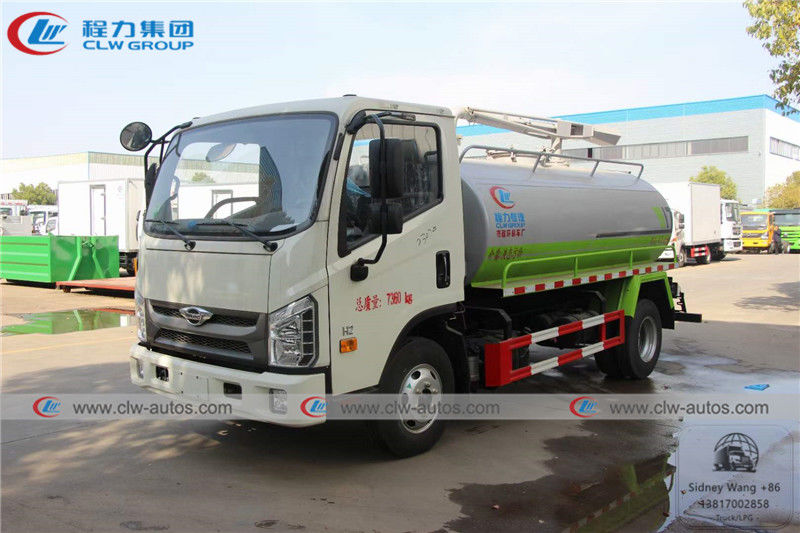

Büyük resim : 5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5680

Ödeme & teslimat koşulları:

Min sipariş miktarı:	Birim
Fiyat:	negotiable
Ambalaj bilgileri:	Toplu gemi, ro-ro, konteyner
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Foton, Sinotruk HOWO, Isuzu vb.	Sürücü modeli:	Sağdan Direksiyonlu ve Soldan Direksiyonlu
Dingil açıklığı:	3300mm	Motor gücü:	115hp
Su Deposu Kapasitesi:	5 metreküp 5m3 5 metreküp 5000 litre 5t	Dışkı Tankı Kapasitesi:	5 metreküp 5m3 5 metreküp 5000 litre 5t
Tank malzemesi:	5mm karbon çeliği	Vakum pompası:	Ünlü Uluslararası Marka
Dışkı Emme Borusu:	8m	Emme süresi:	5 dakikadan fazla değil
Etkili emme aralığı:	8m'den Az Değil	Logo ve Desen:	Müşterinin isteği olarak
Garanti:	1 yıl
Vurgulamak:	LHD Fecal Suction Truck , Foton Forland Fecal Suction Truck , 5000 Liters Vacuum Suction Truck

5000Liters 5cbm 5tons Foton Forland 4x2 Small Fecal Suction Truck Sewage Vacuum Suction Truck Septic Tank Truck

Description:

A Fecal Suction Truck is a tank truck with a heavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of fecal suction trucks with capacities ranging from 3cbm to 18cbm.

Specifications:

The Parameters of 5M3 Forland small Fecal Suction Truck
Overview
Name	Foton Forland small Fecal Suction Truck
Dimension(LxWxH)	5995X2075X2470(mm)
Total Mass	7865 Kg
Rated Payload	5000 Kg
Kerb Weight	3865 Kg
Passenger	2
Approach/Departure Angle	33/24
The Parameters of Chassis
Manufacture/Model	Forland
Driving Type	4*2 left hand drive
Wheel base	3300 mm
Gearbox	Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1260/1260(mm)
Tyre	7.00R16
The Number of Tyre	6+1(spare tyre)
Front/Rear Suspension	1295/1450(mm)
Leaf Spring Number	7/7
The Paremeters of Engine
Manufacturer/Model	Quanchai
Rated Power	115hp
Fuel Type	Diesel oil
Displacement/Capacity	3809ml
Emission Standard	Euro 6
Cylinder	Straight/4/intercooling
Max. torque	240N.m
Velocity	3200rpm
The Parameters of Equipment
Tank Capacity	5M3 / 5000Liters
Vacuum Pump Rotation Speed	800r/m-1400r/m
Max. Suction Lift	>7m
Vacuum	>500mmHg
Rotation Direction	Clockwise
Length of Pipe	8m
Time for full suction	<5min
Basic Equipment	Vacuum pump, ball valve, 8 meter pipe, pressure meter, window for showing liquid level, cleaning system, hoist base, water and oil separator, anti-leaking valve, etc.
Optional Equipment	Sprinkler, alarm for full suction, double pump, crane, scissor lift, etc.

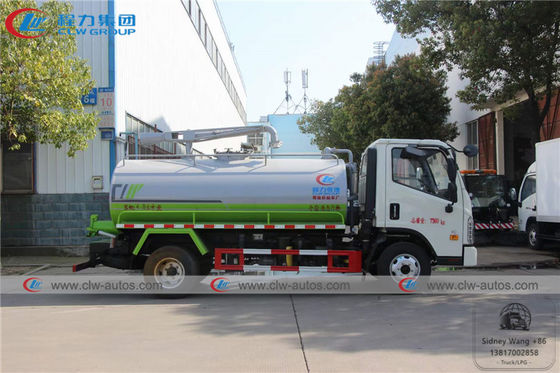

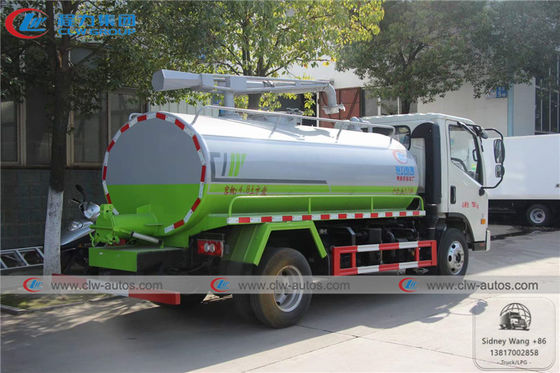

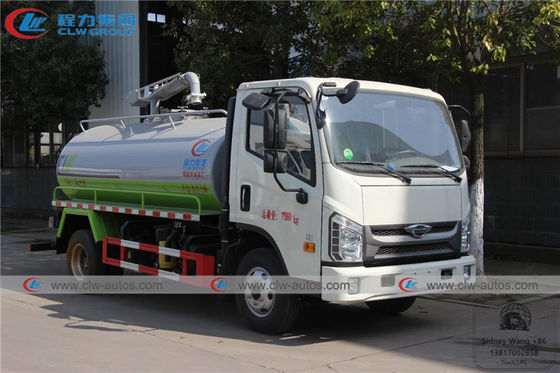

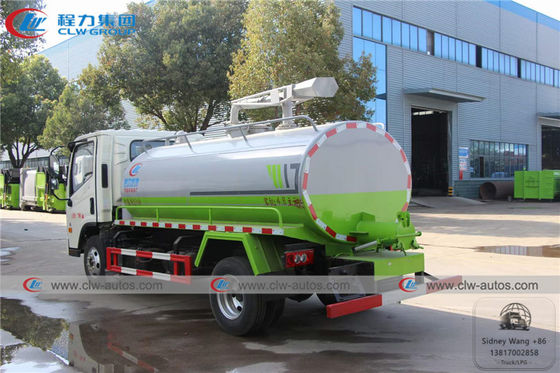

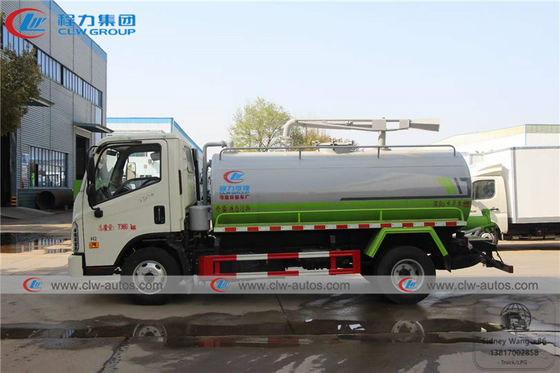

Reference Photos
5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck 0

Main Structure

Working Scene

Factory overview

5000 Liters Foton Forland 4x2 LHD Vacuum Fecal Suction Truck 6
Delivery and Shipment

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

FAQ

Q1: What size Fecal Suction tank we can get from your company?

A: we can supply 2CBM to 18CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
