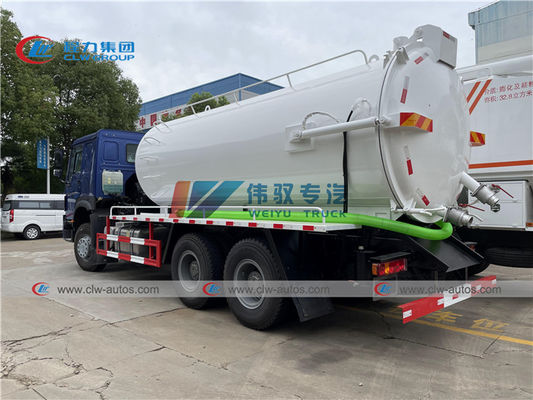

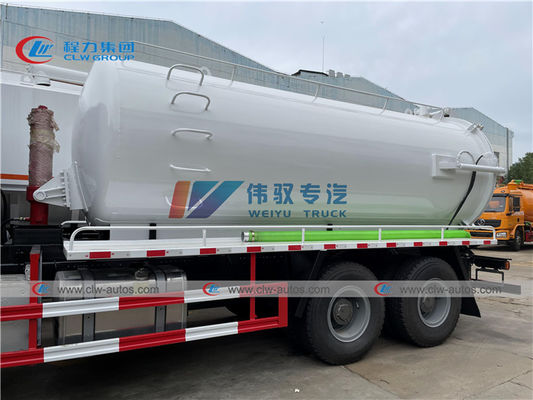

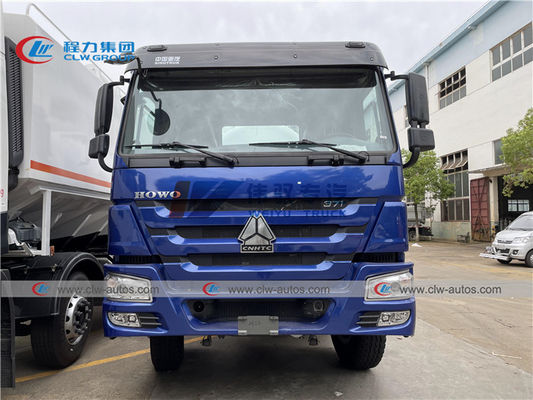

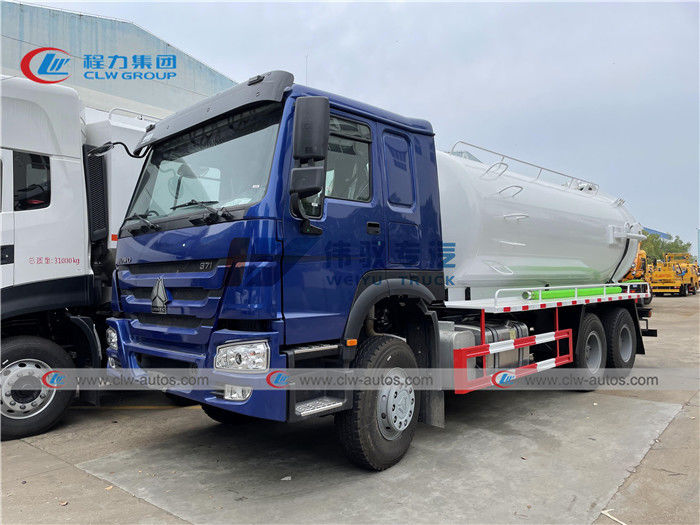

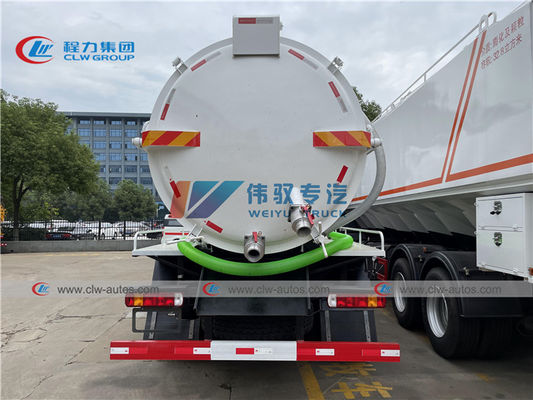

SINOTRUK HOWO 16cbm Sewage Suction Truck With Italy BP Vaccum Pump

Büyük resim : SINOTRUK HOWO 16cbm Sewage Suction Truck With Italy BP Vaccum Pump

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5078xe

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	Peşin ödeme alındıktan 30-35 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

marka:	HOWO,Dongfeng,JAC,FOTON,Shacman,FAW	Yakıt:	Dizel
Dingil açıklığı:	4350+1300mm	Tank malzemesi:	Karbon Çeliği Q235A
Kalınlık:	Yan ve uç plaka için 4 mm	Atık tankı boyutu:	16.000 litre, 16 metreküp, 16 m3
Vakum pompası:	Çin ünlü markası/İtalya BP markası	Deşarj:	Tank gövdesi hidrolik Kaldırma
Kanalizasyon emme borusu:	8 Metre	Emme süresi:	5 dakikadan az
Garanti:	büyük parçalar için bir yıl	Renk:	Özelleştirilmiş logo
Tablo:	Üç Katmanlı boyama	Üretim süresi:	40 gün
operasyon videosu:	Evet	Kullanım Kılavuzu:	Evet
Vurgulamak:	16cbm Sewage Suction Truck , SINOTRUK HOWO Sewage Suction Truck , 16cbm Sewer Cleaning Truck

SINOTRUK HOWO 16cbm Sewage Suction Truck with Italy BP Vaccum pump Sewer Cleaning Truck

Product Description

1. Chassis: HOWO,Dongfeng,Foton,JAC,JMC,FAW all for choice
2. Tanker Volume :From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
4. Vacuum pump: Chinese brand or Italy brand(BP, Jurop brand for choice)

Complete Vehicle Parameter
Vehicle	HOWO vacuum sewage truck
Overall dimension (mm)	9590×2500×3800
Sewage tank (m3)	16
Gross vehicle weight (kg)	Appro×25000
Curb weight (kg)	Appro×13000
Payload (kg)	Appro×12000
Wheel base (mm)	4350+1300
Max speed (km/h)	90
Chassis Parameter
Cabin	Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive
Drive form	6×4
Engine	Brand: sinotruk Model: wd615-47, 371hp Type: diesel, turbocharged, 6 cylinder. Displacement: 9726ml Emission standard: Euro 3
Transmission	10 forward,2 reverse, manual operated
Tire model	12.00R20
No.of tires	10 pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 16000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump(Italy BP pump) 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min.

Sewage suction truck diagram

SINOTRUK HOWO 16cbm Sewage Suction Truck With Italy BP Vaccum Pump 0

Discharge

Working Show

Sales Service

① 20 years engineer team do design and drawing, Economic Price with high quality
② Video and photos during whole production process, three layers paiting for long run, Customized logo
③ After-sales Service: one year warranty for majoy pars, factory price for spare parts whenever needed, live video guidance for first user.
Operation manual step by step.

Key words: Sewage suction truck, Sewer cleaning truck, Sewer vacuum Truck, sewage vacuum truck
