ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

Büyük resim : ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5064

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	Peşin ödeme alındıktan sonra 30-35 gün
Ödeme koşulları:	L/C, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

Kamyon şasisi:	ISUZU,Dongfeng,Foton,Shacman,JAC,JMC,FAW,HOWO	Tank malzemesi:	Karbon Çeliği Q235A
Su deposu:	2CBM/2000 litre	Toz Tankı:	3CBM/3000 litre
Vakum pompası:	Seçim için Çin veya İtalya markası	Dingil açıklığı:	3360 mm
Renk:	Özelleştirilmiş logo	Garanti:	büyük parçalar için bir yıl
operasyon videosu:	Evet	Kullanım Kılavuzu:	Evet
Vurgulamak:	5cbm Sewage Vacuum Truck , ISUZU Sewage Vacuum Truck , ISUZU 4x2 Sewer Cleaning Truck

UZU 5cbm Sewage Vacuum Truck 5tons Sewer Cleaning Truck

Product Description

1. Purpose: It used for city and factory sewer cleaning, it's one of our sanitation truck series. Our mission is assist urban sanitation project and make world cleaning!

2. Main parts: Water pump and High pressure water cleaning nozzles tc.

3. Features: It can adopts high pressure water for flushing sewer.

4.5000 liters sewage vacuum suction truck with 2000 liters high pressure water tank(1000 liters by eash side)

Vehicle Description
Overall dimensions	599522503250 mm
Curb Weight	5400kg
Chassis brand	ISUZU
Traction type	4*2

Tanker Description
Tanker	Capacity	5000L
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Double vacuum pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
	Manufacture	Hangzhou WEILONG Pump Co., Ltd.
Pipe		Suction and discharge pipe
Special function		Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45
Standard configuration		Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration		Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank

Chassis Description
Chassis model	ISUZU
Cab	Sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
Traction type	LHD or RHD
Drive type	4*2
Wheelbase	3360mm
Tire specification	8.25-16
Tire quantity	6+1 units
Engine	Emission level	Euro 1/2/3/4
	Displacement/output	2771ml
	Horse power	95hp
Gear box	Model	China famous brand
	Number of gears	5 forward gears& 1 reverse, synchronized
Brake system	Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
Axle	Front	2.5T
	Rear	4T

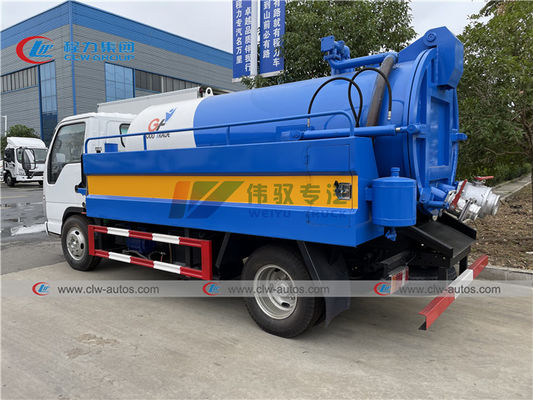

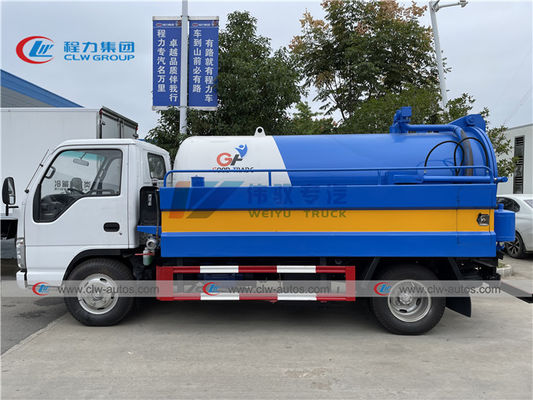

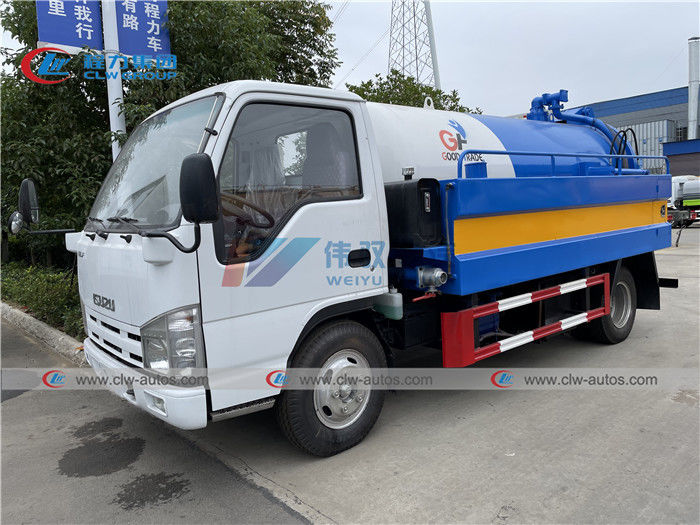

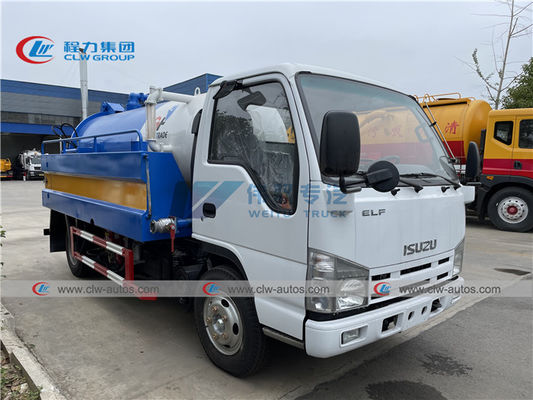

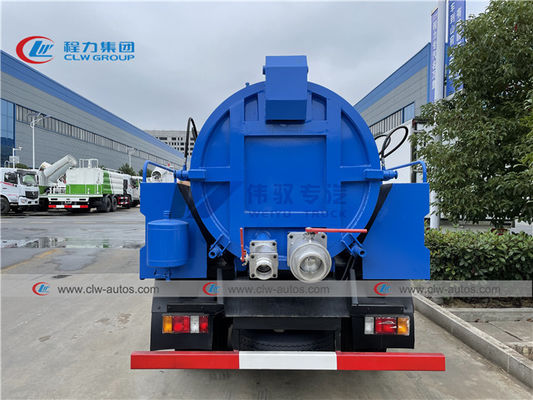

Truck details:

Accessories

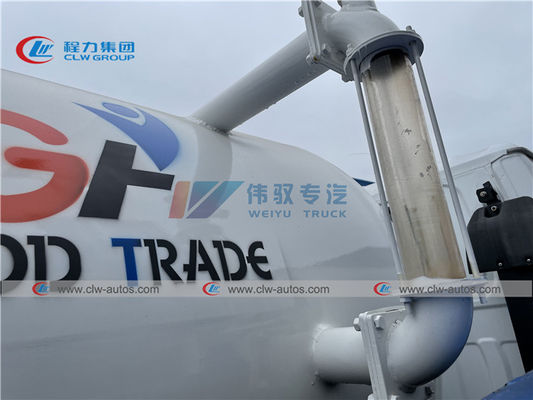

ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank 4

Working Process

ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank 5

ISUZU 4x2 5cbm Sewage Vacuum Truck With Q235A Tank 6

Sales Service

1. Professional engineer team with more than 20 years experience, technical support whenever needed.

2. Our team will take operation videos to show you how to use the truck step by step, it will be very easy for first learners.

3. Live video guidance about usage and maintenance.

4. Life long service whenever needed

FAQ

Q1: What size Sewage Suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?

A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.

Q3: Can we adopts International brand sewage pump for sewage suction truck?

A: Sure, we already cooperated with Italy Jourp and a Germany brand.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
