2Ton 3MT Small Vacuum Sewage Suction Truck for City Sewer Waste Transport
Product Description
2000Liter Sewage Suction Truck
Ø Tank volume2500Liter
Ø 5mm thick Q235 carbon steel plate,
Ø 3T Vacuum sewage oil pump,
Ø 6meters Sewage Hose in DN100.
Ø 4”Aluminum Ball Valve
Ø Hydraulic Open Rear Door
Ø Middle Tipping System

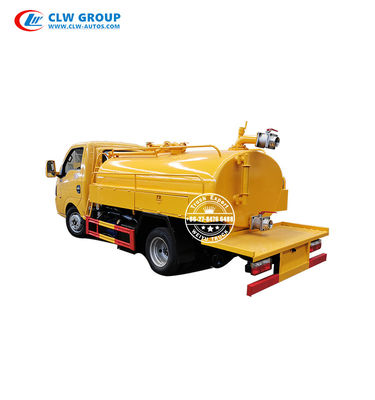

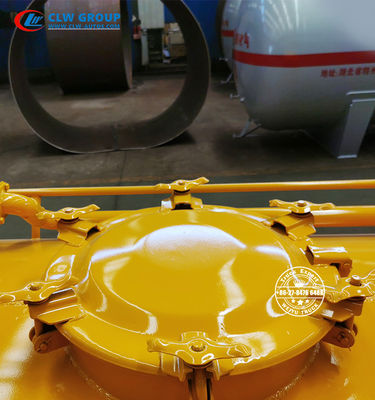

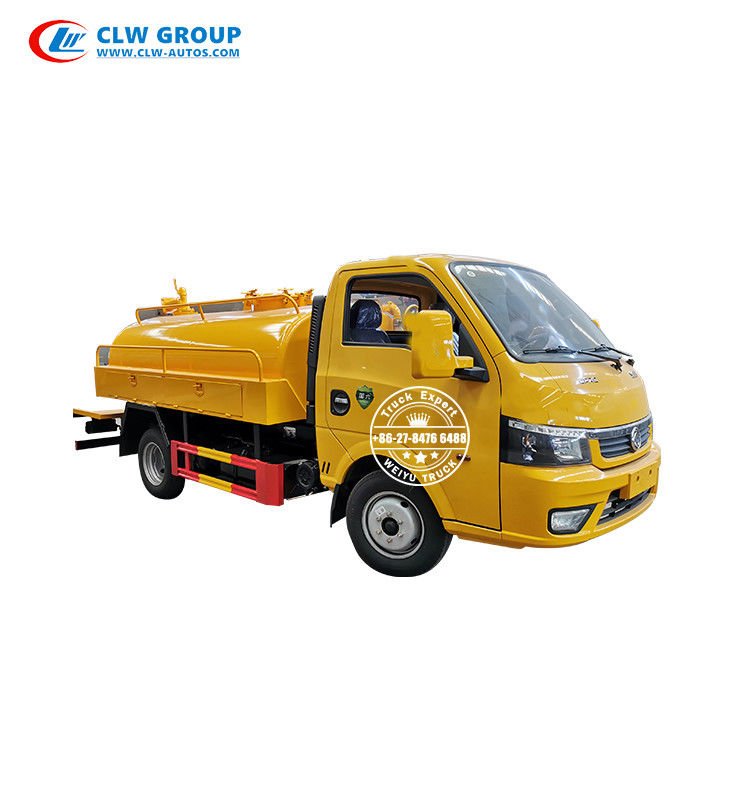

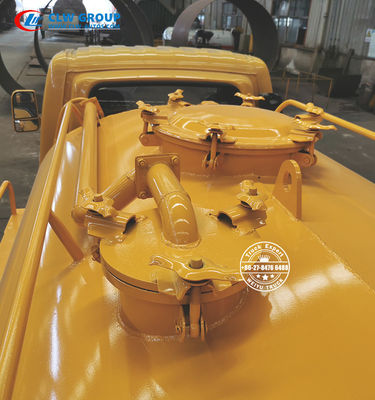

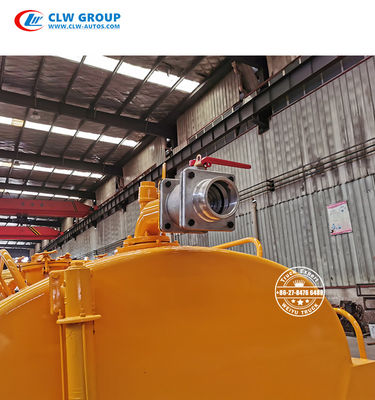

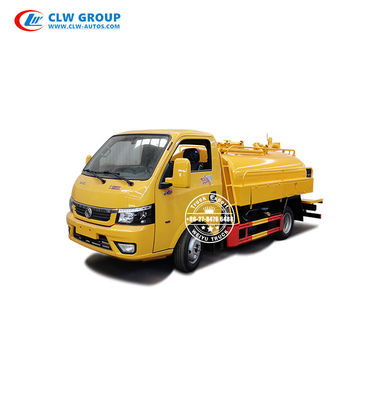

Product Photos:
Specification:
| Condition |
New condition/Left hand drive/4x2 |
| Chassis |
Brand |
Dongfeng |
| Curb weight(kg) |
3500 kg |
| Wheelbase(mm) |
2800 mm |
| Dimensions(mm) |
4200*2300*2800 mm |
| Front/Rear Axle loading(kg) |
2300/25000 kg |
| Wheel track (front/rear) (mm) |
1960/1855 mm |
| Front/Rear overhang(mm) |
1335/1880 mm |
| Approach/Departure angle(°) |
16/20 |
| Max. driving speed(km/h) |
85 km/h |
| Battery |
12V*2 115Ah*2 |
| Clutch |
Reinforced diaphragm clutch |
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust valve brake |
| Steering Gear |
Power steering, hydraulic steering with power assistance |
| Tire |
Quantity |
6 pcs with one spare tire |
| Specifications |
185R15 |
| Transmission |
Manual type, 5 Forwards and 1 reverse |
| Cab |
It can accommodate three people. With Air Conditioner |
Engine |
Brand |
Quan chai |
| Model |
CY4102 |
| Fuel type |
Diesel |
| Displacement(ml) |
3250 ml |
| Power(kw) |
0 kw |
| Horsepower(HP) |
95 HP |
| Cylinder number |
4 |
| Emission standard |
Euro 2 |
| Sewage Suction & Cleaning System |
| Sewage tank |
Capacity(cbm/liters) |
2.0 cbm/2,000 liters |
| Tank material |
Q235 carbon steel |
| Thickness(mm) |
4.0 mm |
| Vacuum pump |
Absolute working pressure(Pa) |
400 Pa(99.6%vacuum degree) |
| Academic suction speed(L/s) |
45 L/s |
| Rotation speed(rpm) |
500 rpm |
| Inlet and Outlet pipe |
Diameter(mm) |
108 mm |
| Length(m) |
5.0 m |
| Quantity(pcs) |
1 pc |
| Main parts |
1. Water-gas separator
2. Oil-gas separator
3. Four way valve
4. Safety valve
5. Anti overflow valve
6. Anti overflow warning device
7. Hydraulic control rear cover
8. Tipping sewage tank body |
| |
|
Sales Service
① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What kinds of Sewer cleaning truck I can order from your company?
A: We can supply normal sewege suction truck and high pressure sewer flushing and sewage suction truck, the difference between those two kinds of sewer cleaning truck are water tank and high pressure water pump. Basically speaking, we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Sewer cleaning truck is produced as per China GB local standard; We can export super structure to those market, we ever exported 50 units sewage suction truck's super structure and 20 units sewage suction sewage trailer to Australia market in the past two years.
Q3: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
