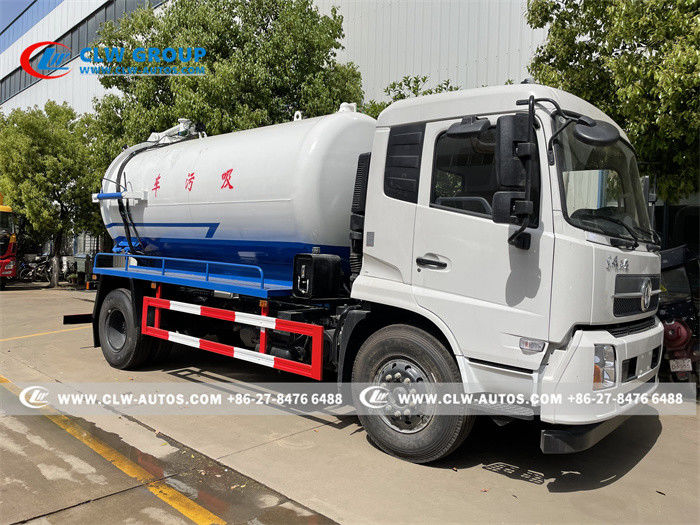

Dongfeng Tianjin Kinrun 4x2 12000liters 12tons vacuum sewage suction tanker truck septic tank truck for sanitation services
Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Product Specification
| Items |
Descriptions |
Specifications and Types |
| General |
Truck Name |
Sewage suction truck |
| Drive Type |
4*2 |
| Curb Weight (kg) |
8805 |
| Loading Weight (kg) |
12000 |
| Overall Dimensions L*W*H(mm) |
7970×2490×3380 |
| |
Engine Brand |
Cummins B210 33 |
| Fuel Type |
Diesel |
| Power |
155kw/210 HP |
| Emission Standard |
Euro 2/ 3/ 4/ 5 |
| Displacement(ml) |
5900 |
| Engine Type |
6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
| Chassis |
Chassis Brand |
Dongfeng Kinrun |
| Front/Rear Axle Load(KG) |
5000/9000 |
| Tire No. |
6+1 spare |
| Tire Specification |
10.00R20 |
| Wheelbase (mm) |
4700 |
| Axle No. |
2 |
| Gear Box |
6 speed forward with 1 reverse, manual |
| Steering Wheel |
Left / Right hand drive with power-assisted |
| Brake |
Oil brake |
| Radiator |
Suitable for tropical climate |
| Sucking System |
Sewage tank Volume(L) |
12,000 |
| Tank shape |
Round |
| Tank Material |
6mm thick carbon steel |
| Pump |
Vacuum |
| Pump Introduction |
Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment |
| Suction Depth(m) |
More than 6 meter |
| Tank Tipping angle(°) |
More than 45 |
| Rear door |
Open and closed by hydraulic cylinders |
| Other |
Electric system |
24V |
| Equipment |
A tool box |

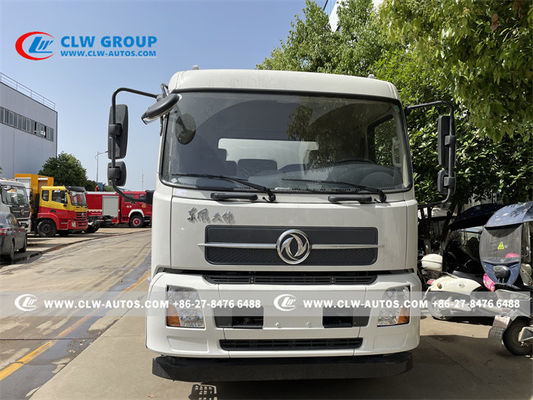

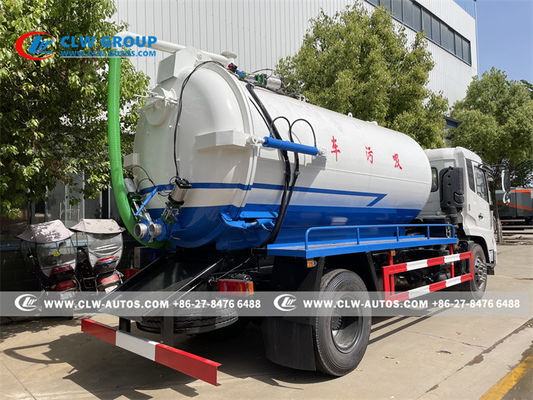

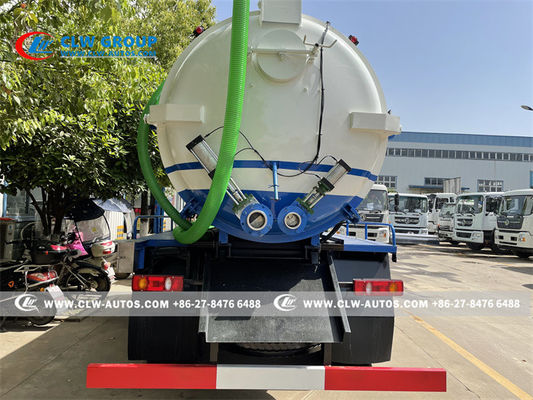

Reference Photos

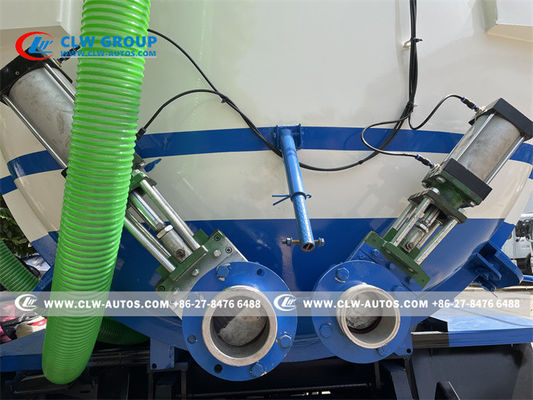

Main Structure
Working Scene
Sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: What size Sewage Suction tank we can get from your company?
A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.
Q2: Can we adopts International brand sewage pump for sewage suction truck?
A: Sure, we already cooperated with Italy Jourp and a Germany brand.
Q3: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.
Q4: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. From Shanghai to WUhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
