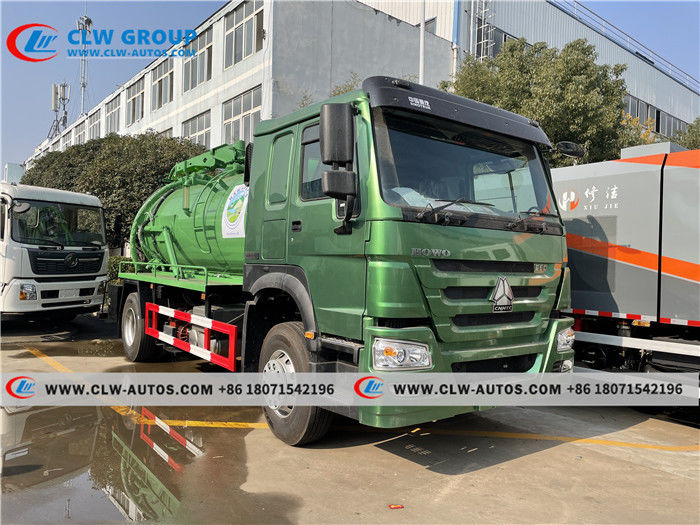

HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya

Büyük resim : HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW50758uv

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	Peşin ödeme alındıktan 30-35 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

marka:	HOWO,Dongfeng,JAC,FOTON,Shacman,FAW	Yakıt:	Dizel Motor
Dingil açıklığı:	4500mm	Tank malzemesi:	Karbon Çeliği Q235A
Kalınlık:	Yan ve uç plaka için 4 mm	Atık tankı boyutu:	12.000 litre, 12 metreküp, 12 m3
Vakum pompası:	Çin ünlü markası/İtalya BP markası	Deşarj:	Tank gövdesi hidrolik Kaldırma
Kanalizasyon emme borusu:	8 Metre	Emme süresi:	5 dakikadan az
Garanti:	büyük parçalar için bir yıl	Renk:	Özelleştirilmiş logo
Tablo:	Üç Katmanlı boyama	Üretim süresi:	40 gün
operasyon videosu:	Evet	Kullanım Kılavuzu:	Evet
Teknik rehberlik:	Evet
Vurgulamak:	12 000Liter Septic tank truck , HOWO Septic tank truck , Sanitation Service Septic tank truck

HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya

Product Description

1. Chassis: HOWO,Shacman,Faw,Dongfeng,Foton,JAC,JMC all for choice
2. Tanker capacity :From 2m3 to 25 m3 capacity.
3. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
4. Vacuum pump: Chinese brand or Italy brand(BP, Jurop brand for choice)

5. Septic tank truck is a sanitation vehicle, that collects and transfers sludge, septic and sewage with liquid substances such as feces, mud, crude oil, especially the sewage slurry, silt, stones, brick, blocks and other bulk objects, to avoids secondary pollution. It's functioning self-suction and discharge, faster working speed and larger vacuum, that widely used in sewer, cesspit and gully.

Complete Vehicle Parameter
Vehicle	HOWO Septic tank truck
Overall dimension (mm)	8500×2500×3200
Sewage tank (m3)	12
Gross vehicle weight (kg)	Appro×18000
Curb weight (kg)	Appro×9000
Payload (kg)	Appro×10000
Wheel base (mm)	4700
Max speed (km/h)	90
Chassis Parameter
Cabin	Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive
Drive form	4×2
Engine	Brand: sinotruk Model: wd615-87, 290hp Type: diesel, turbocharged, 6 cylinder. Displacement: 9726ml Emission standard: Euro 3
Transmission	10 forward,2 reverse, manual operated
Tire model	12.00R20
No.of tires	6 pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 12000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump(Italy BP pump) 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min.

Truck Details

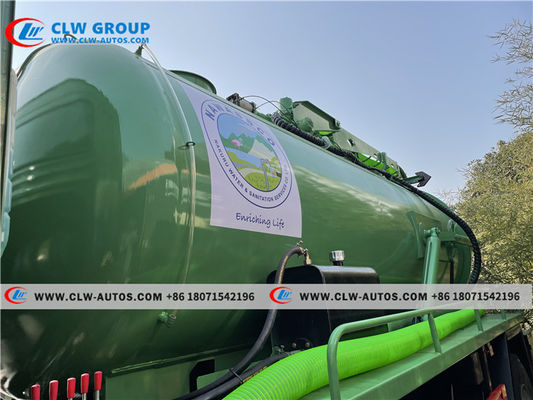

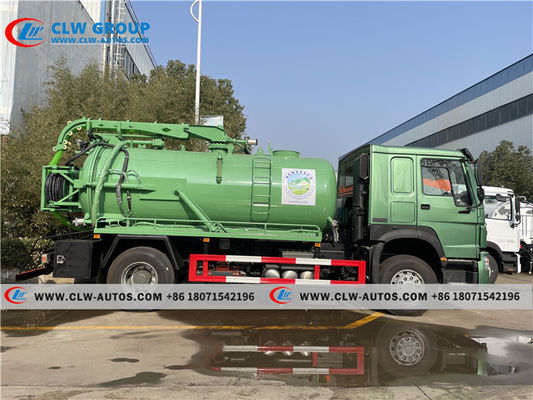

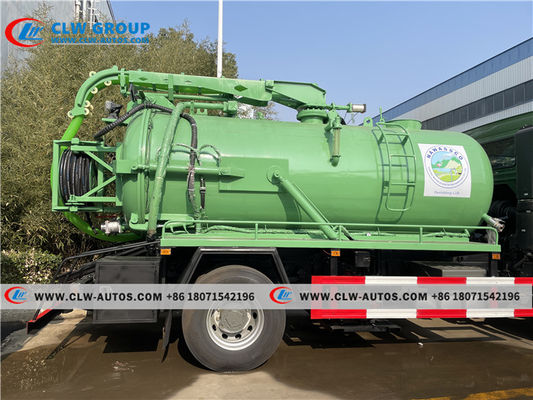

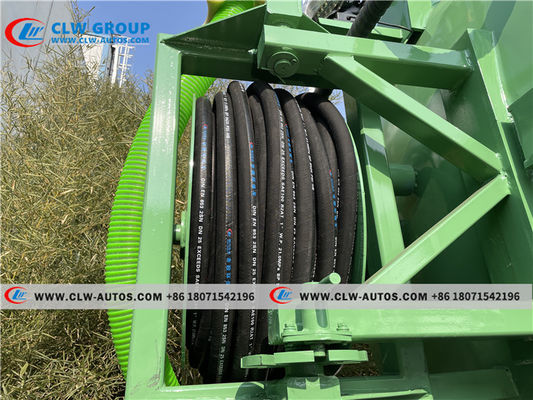

HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya 0

Sewage suction truck diagram

HOWO 12,000Liter Septic tank truck Sanitation Service Truck for Kenya 2

Discharge

Sales Service

① 20 years engineer team do design and drawing, Economic Price with high quality
② Video and photos during whole production process, three layers paiting for long run, Customized logo
③ After-sales Service: one year warranty for majoy pars, factory price for spare parts whenever needed, live video guidance for first user.
Operation manual step by step.

Key words: Sewage suction truck, Sewer cleaning truck, Sewer vacuum Truck, sewage vacuum truck
