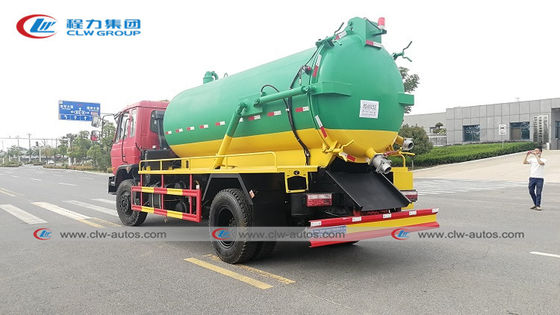

Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters

Büyük resim : Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5278DHE

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	Peşin ödeme alındıktan sonra 30-35 gün
Ödeme koşulları:	L/C, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

Kamyon şasisi:	ISUZU,Dongfeng,Foton,Shacman,JAC,JMC,FAW,HOWO	Tank malzemesi:	Karbon Çeliği Q235A
Tank hacmi:	10CBM/10000Litre	Vakum pompası:	İsteğe bağlı
Dingil açıklığı:	3950 mm	Renk ve LOGO:	Özelleştirilmiş
Garanti:	Büyük parçalar için bir yıl	operasyon videosu:	Evet
Kullanım Kılavuzu:	Evet
Vurgulamak:	Carbon Steel Vacuum Sewage Suction Truck , Q235 Carbon Steel Sewage Suction Truck , 10000liters Vacuum Suction Truck

Q235 Carbon Steel 10cbm/10000liters Vacuum Sewage Suction truck

Product Description

The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
Tank material: high-quality carbon steel plate, 6mm thick,
Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
Optional vacuum pump

Vehicle Description
Overall dimensions	697524622690 mm
Curb Weight	4470kg
Chassis brand	DONGFENG
Traction type	4*2

Tanker Description
Tanker	Capacity	10000L
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Double vacuum pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
	Manufacture	Hangzhou WEILONG Pump Co., Ltd.
Pipe		Suction and discharge pipe
Special function		Suction time ≤ 5mins, effective suction range ≥ 8, Max vacuum degree ≤ 15 Kpa, dump angle ≥ 45
Standard configuration		Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration		Tanker material: stainless steel. Vacuum pump : Italy or Spain vacuum pumps. Anti-rust coating inside tank

Chassis Description
Chassis model	DONGFENG
Cab	Single row cab, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, Optional air conditioning system, electric windows, central lock.
Traction type	LHD or RHD
Drive type	4*2
Wheelbase	3950mm
Tire specification	9.00-20 Nylon tire
Tire quantity	6+1 units
Engine	Emission level	Euro 2
	Displacement/output	5880ml
	Horse power	160hp
Gear box	Model	China famous brand
	Number of gears	5 forward gears& 1 reverse, synchronized
Brake system	Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles, exhaust brake
Suspension	Front	1205
	Rear	1820

Accessories

Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters 0

Our factory

Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters 1

Q235 Carbon Steel Vacuum Sewage Suction Truck 10cbm 10000liters 2

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
