Carbon Steel Combined Jet Vacuum Truck Sewer Cleaning 140HP 5000Liters 5cbm Gallons

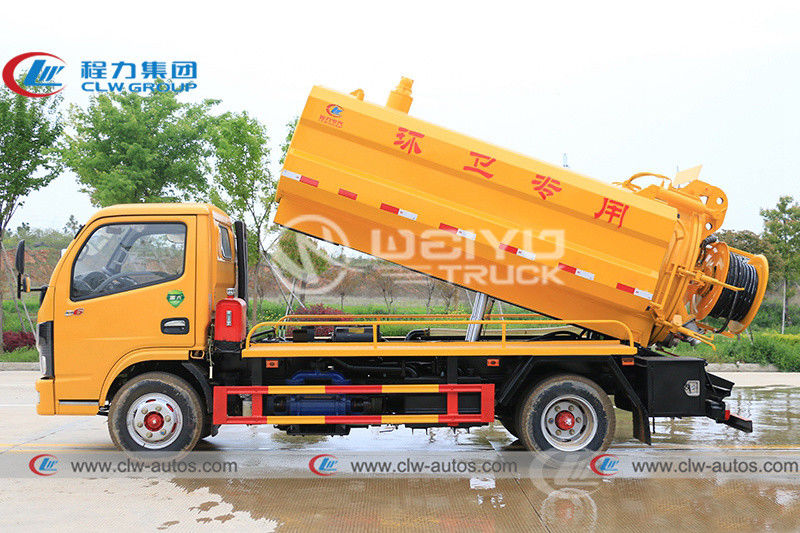

Büyük resim : Carbon Steel Combined Jet Vacuum Truck Sewer Cleaning 140HP 5000Liters 5cbm Gallons

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW552HD

Ödeme & teslimat koşulları:

Min sipariş miktarı:	Birim
Fiyat:	negotiable
Ambalaj bilgileri:	Toplu gemi, ro-ro, konteyner
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Foton, Sinotruk HOWO, Isuzu vb.	Sürücü modeli:	İsteğe bağlı
Dingil açıklığı:	3380mm	Motor gücü:	140hp
Su Deposu Kapasitesi:	2 metreküp 2m3 2 metreküp 2000 litre 2ton	Kanalizasyon Tankı Kapasitesi:	3 metreküp 3m3 3 metreküp 3000 litre 3ton
Tank malzemesi:	6mm karbon çeliği	Vakum pompası:	İsteğe bağlı
Dışkı Emme Borusu:	7m	Emme süresi:	5 dakikadan fazla değil
Etkili emme aralığı:	7m'den Az Değil	Logo ve Desen:	Özelleştirilmiş
Garanti:	1 yıl
Vurgulamak:	Carbon Steel Combined Jet Vacuum Truck , 140HP Jet Vacuum Truck

Carbon Steel Material 140HP 5000 Liters/5cbm Gallons Combined Jet Vacuum Truck Sewer Cleaning Truck

Product description

The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
Tank material: high-quality carbon steel plate, 6mm thick,
Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe

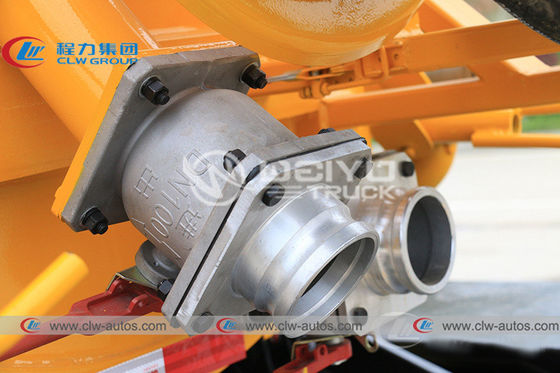

The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
Optional vacuum pump

Specification

Vehicle Main Dimensions	Cab type	Single row cab
	Overall dimension(LWH)(mm)	6550×2370×2530
	Wheelbase (mm)	3380
	Axle number	2
	Drive type	4*2
	Steering type	LHD/RHD
	Max. Drive Speed (km/h)	90
	Curb weight (kg)	3000
Chassis parameter	Chassis brand	DONGFENG
	Transmission	Manual, 6forward and 1 reverse
	Brakes	air brake
	Tire	8.25-16 Nylon tire
Engine parameter	Engine Brand
	Fuel type	Diesel
	Horse Power(hp)	108hp
	Emission Standard	Euro3
Superstructure Parameter and main performance	Sewage tank volume	3000liters/3cbm
	Sewage tank material	6 mm good quality carbon steel
	Vacuum Pump	Imported Italy high quality vacuum pump or chinese vacuum pump SK-12
	Water tank volume	2000liters/2cbm
	High pressure pump	Flow meter: 215L/min
	Standard configuration	60m long high pressure pipe, inspect window, one gravity mouth, 8m long suction pipe, etc
	Main performance	Suction time ≤ 5min Effective suction range ≥ 9m
	Main function	Cleaning city sewer, pipeline dredge, suction sewage,etc
	Optional	watering

Main Structure

Factory overview

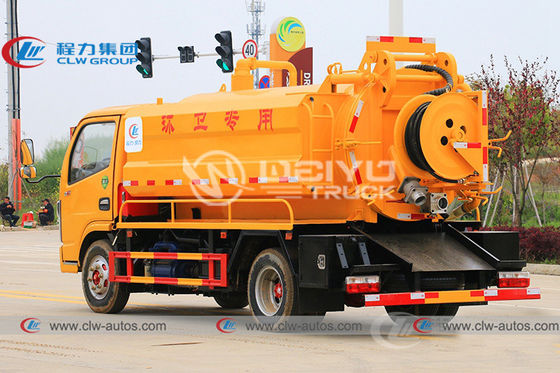

Carbon Steel Combined Jet Vacuum Truck Sewer Cleaning 140HP 5000Liters 5cbm Gallons 1

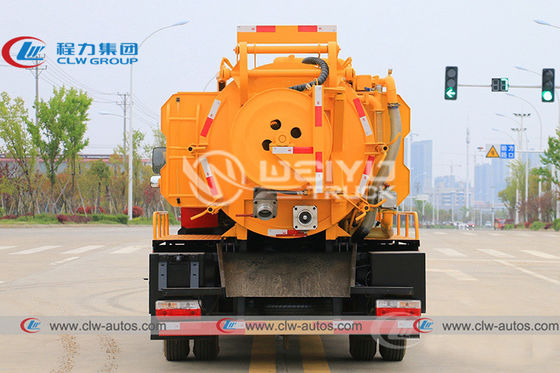

Carbon Steel Combined Jet Vacuum Truck Sewer Cleaning 140HP 5000Liters 5cbm Gallons 2

Sales Service

① Pre-sales Service: Communicate with customers, analyze their needs.
② Sales Service: Provide professional technical solutions, recommend the right models accordingly.
③ After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

Warranty

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
