Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2

Büyük resim : Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW55DOVI

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	30-35 gün
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	500 Birim/Ay

İletişim

Detaylı ürün tanımı

Şasi markası:	Dongfeng, Foton, Sinotruk HOWO, Isuzu vb.	Sürücü modeli:	Sol El Sürücüsü
Yakıt tipi:	Dizel Motor	Motor gücü:	185 beygir
Vites kutusu:	8İleri ve 2 Geri, manuel tip	Tank malzemesi:	5mm karbon çeliği
Tank boyutu:	11 metreküp/11 m3	Vakum pompası:	Çin Markası, İtalya Markası veya Diğer Popüler Marka
Kanalizasyon emme borusu:	5mm ~ 8mm	Emme süresi:	<5dk
Etkili emme aralığı:	>8m	Logo ve Desen:	Müşterinin isteği olarak
Teslim süresi:	30-35 iş günü	Garanti:	1 yıl
Vurgulamak:	Sewer Jetting Truck 11cbm , Plunger Pump Vacuum Sewer Jetting Truck

4X2 Dongfeng 11cbm Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck

Product Descriptions:

1. It is equipped with strong vacuum pump for faster sewage suction speed.

2. It is equipped with high pressure water jetting that can help clearing obstacles .

3. The truck's self-dumping tank is openable rear door in order to discharge sewage efficiently.

4. Ultra-long suction pipe is available to further extend working area.

5. The truck using famous Italian Jurop &BP, American moro vacuum Pump.

6. It install remote control system.

Main specifications:

1. YUNEI diesel engine 185hp

2. Imported Italy vacuum pump or Chinese famous vacuum pump

3. Suction time is less than 5 minutes.

4. Carbon steel

5. 4cbm water tank and 7cbm sewage tank

Product Specification

Technical Parameters
Overview
Name	Sewage Jetting Truck
Dimension(LxWxH)	710022502900(mm)
Cab type	single row
Kerb Weight	7500 Kg
Passenger	2
The Parameters of Chassis
Manufacture	Dongfeng
Driving Type	4*2 left hand drive
Wheel Base	3800 mm
Gearbox	Manual, 8 forward and 2 reverse
Breaks	air break
Tyre	8.25R20
The Number of Tyre	6+1(6pics with one spare tyre)
Engine	YUNNEI 185hp Euro3
Leaf Spring Number	8/13,8/12
Superstructure Parameter and main performance
Cleaning Tank volume	4cbm
Cleaning Tank material	good quality carbon steel; round shape
Sewage tank volume	7cbm
Sewage tank material	good quality carbon steel
Pump	Imported Italy high quality vacuum pump or chinese vacuum pump
Standard configuration	60m long high pressure pipe, 10 high pressure sprayers,inspect window, one gravity mouth, cleaning apparatus,8m long suction pipe, etc
Main performance	Suction time ≤ 5min effective suction range ≥ 9m

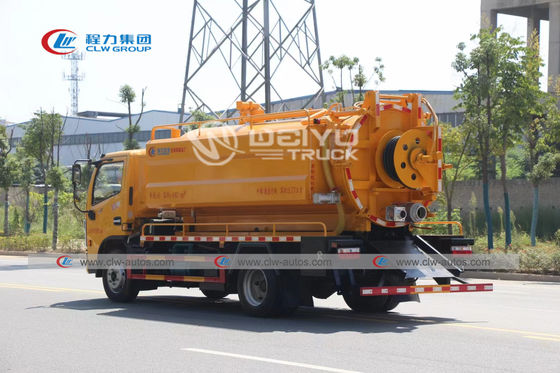

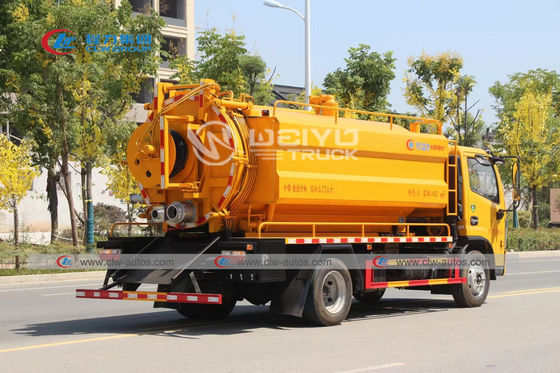

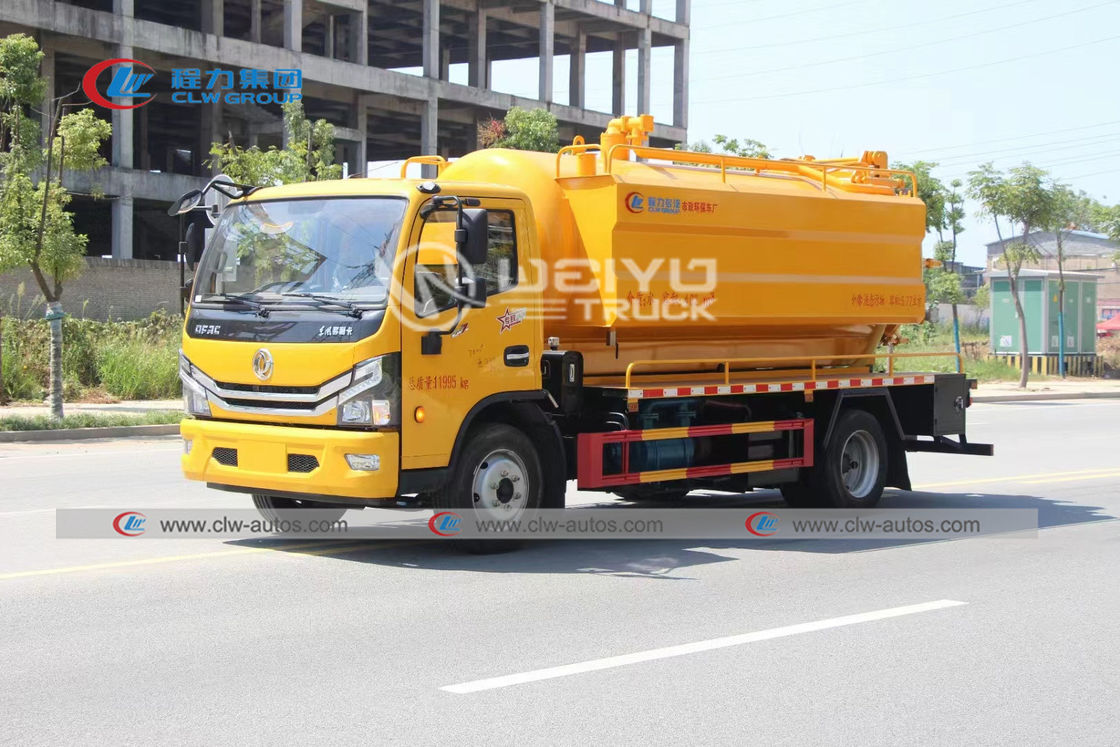

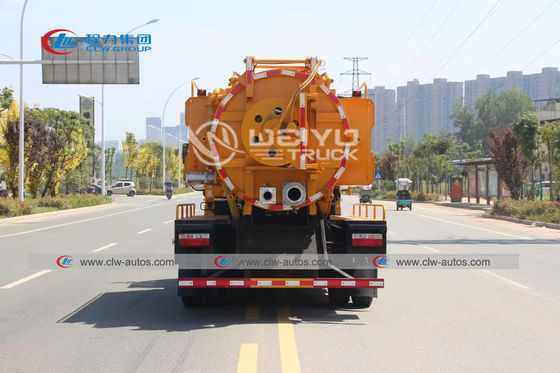

Reference Photos
Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2 0

Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2 1

Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2 2

Working Scene
Dongfeng Italy High Pressure Plunger Pump Vacuum Sewer Jetting Truck 11cbm 4X2 3

After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Flora For More Details: +86 13971508969.

FAQ

Q1: What size sewage suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.

Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.

Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
