Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks

Büyük resim : Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5209IRD

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödemelerin alınmasından sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Vakumlu Kanalizasyon Emme Kamyonu	Sürüş Modeli:	LHD Vakumlu Kanalizasyon Emme Kamyonu
MOTOR:	Dizel Motor	Malzeme:	Q235 karbon çeliği
Tanker boyutu:	18000Litre 18Ton 18T 18m3	Yükleme kapasitesi:	18 ton 18 ton
Tanker kalınlığı:	5mm Dışkı Emme Kamyonu	Vakum pompası:	Çin pompası, BP, Jurop, Moro Kaiser
Emiş Derinliği:	8 Metre	Emme mesafesi:	DN50 veya DN100 2" veya 4"
Tip:	kanalizasyon/çamur/septik emme Vakumlu Kanalizasyon Emme Kamyonu	Logo ve Renk:	Özelleştirilmiş
Vurgulamak:	Shacman Automatic Vacuum Tanker Truck , 18cbm Vacuum Tanker Truck

Shacman 18cbm 18000liter 18m3 Automatic Instant Swer Truck Vacuum Tanker Truck For Septic Tanks

Application range:
1. Cleaning and dredging sediments in sewers and various pipes in municipal, chemical, mechanical, metallurgical, electric power and other departments.
2. Carrying out sludge removal, shipping and dumping work in sewers, and also with functions like water transportation, drainage and emergency fire protection.

Main structures:
Rear door cylinder; ball valve-sewage drain; rear door lock device; ball valve-water drain; vacuum pump;
oil air separator; water air separator; vacuum pump; control handle; tank body; anti-overflow valve;
glass window; sewage line; tipping cylinder

Product descriptions:

The sewage tank is made of high-quality steel plate of WISCO, with a wall thickness of 5.
The middle of the tank is installed wave-proof board.
The vacuum tube is equipped with stainless steel filter.
It install DN100 shock-resistant pressure gauge in the position of the sewage suction four-way valve.
The tank body is equipped with lifting and self-unloading hydraulic system.
The rear door install locking device
There are platforms on both sides of the tank, which is convenient for placing tools and suction pipes.

Product descriptions:

Complete Vehicle Parameter
Vehicle	Shacman sewer vacuum truck
Overall dimension (mm)	1055025503750
Sewage tank (m3)	18 septic tanker truck
Gross vehicle weight (kg)	Appro*30000
Curb weight (kg)	Appro*14000
Payload (kg)	Appro*16000
Wheel base (mm)	4350+1300
Max speed (km/h)	90
Chassis Parameter
Cabin	Flat top cabin,a sleeper,power steering, air conditioner, 3 passengers,left hand drive,with Air Conditioner
Drive form	6X4
Engine	Brand: cummins
	385HP
	Type: diesel, turbocharged, 6 cylinder.
	Displacement: 10.8L
	Emission standard: Euro 4/5
Transmission	12 forward,2 reverse, manual operated
Tire model	12R22.5
No.of tires	10 pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 18000 liter/18 cbm Sewer suction truck
	2. Sewage tank material is carbon steel,thickness 5mm.
	3. Sewage suction pipe 1pcs, length 7m.
	4. Hydraulic lifting sewage tank,rear cover can open.
	5. Equipped with PTO.
	6. Equipped with vacuum pump.
	7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m.
	(2) Pumping speed : 45L/s.
	(3) Intake and exhaust diameter: 50mm.
	(4) Full tank pumping time ≤ 5min.
	(5) Sewage tank emptying time ≤ 4min.

Detailed photos

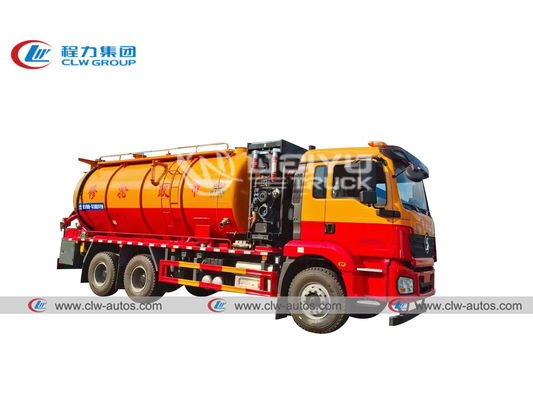

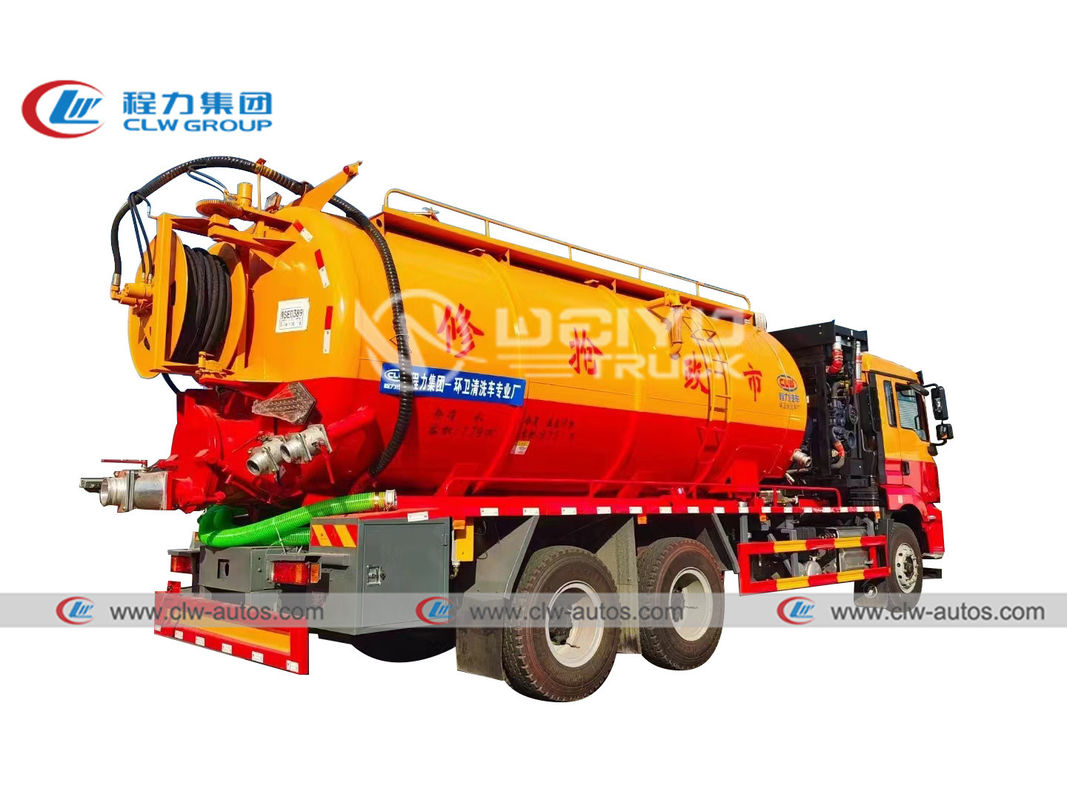

Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks 0

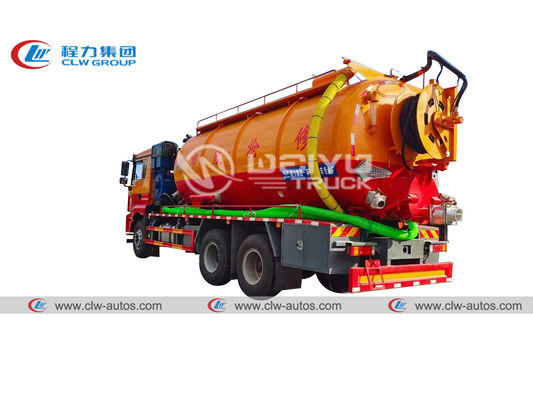

Shacman Automatic Instant Swer Vacuum Tanker Truck 18cbm 18000liter For Septic Tanks 1

Parts diagrams

Why choose us:

Certificate: ASM, ISO, BV, SGS, CCC etc.
More than 30 independents workshops for different types of trucks
1000 sets of equipment, 25 assemble lines.
300 senior engineers and technicians and about 8000 staffs
800kinds of trucks and semi-trailers with various functions
20 years wholesale experience
Turnover 250 million and Export 20million annually
More than 100,000 trucks and semi-trailers annually.
Truck Sold to 90 countries
Long term cooperation with China leading chassis supplier DONGFENG,SINOTRUCK, FOTON,FAW,BEIBEN,ETC
We can handle production of bulk order water trucks of tender and government purchase in required time
