10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck

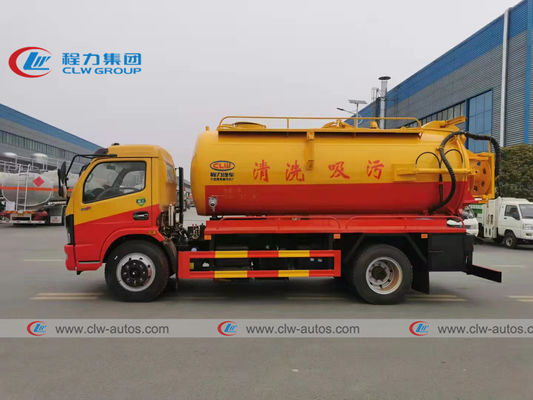

Büyük resim : 10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	ISO, CCC
Model numarası:	CLW5167SQXWC

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	12520 usd/unit~22660 usd/unit
Ambalaj bilgileri:	Toplu gemiyle gönderilen çıplak paket
Teslim süresi:	Peşin ödemelerin alınmasından sonraki 30 gün içinde
Ödeme koşulları:	L/C, T/T, D/P, T/T, Western Union, MoneyGram, D/A
Yetenek temini:	300 adet/ay

İletişim

Detaylı ürün tanımı

Kamyon markası:	Dongfeng,Shacman,Sinotruk Howo,CAMC,FAW,ISUZU Kanalizasyon Jeti	Sürüş Modeli:	LHD, RHD Kanalizasyon Jeti
MOTOR:	Dizel motorlu Kanalizasyon Jeti	Malzeme:	Q235 karbon çelik Kanalizasyon Jeti Kamyonu
Tanker boyutu:	10000Litre 10Ton 10m3 3000 galon Kanalizasyon Jeti	Yükleme kapasitesi:	5ton 6ton 8ton 10ton Kanalizasyon Jeti
Tanker kalınlığı:	5mm veya 6mm Kanalizasyon Jeti	Vakum pompası:	Çin pompası, BP, Jurop, Moro Kaiser Kanalizasyon Jeti
Emiş Derinliği:	8 metre Kanalizasyon Jeti	Emme mesafesi:	DN50 veya DN100 2" veya 4" Kanalizasyon Jeti
Orta:	kanalizasyon/çamur/septik emme Kanalizasyon Jeti Kamyonu
Vurgulamak:	10000 Cbm Sewer Cleaning Truck , Dongfeng Sewer Cleaning Truck , 170HP Vacuum High Pressure Suction Truck

Factory price Dongfeng 190hp Vacuum high pressure Sewage Suction Truck

10,000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck

Description

1.Truck Chassis Advantage:

-Chassis Series-FOTON,DONGFENG,JAC,JMC,Shacman,etc
-Yuchai or Cummins Engine in 170HP ~220HP;
-FAST Gearbox Suppling large powe Output in Big Speed Ratio;

2. Sewage System Advantage:

-Large volume sewage tank 7000L with High Pressure Design;
-3000L Wate with Side Installed Design Low Gravity Center;
-Famous Italian Jurop &BP, American Moro Vacuum Pump in 2400L/Min;
-High Pressure Chinese Brand Water Pump 300L/min, 18Bar Pressure;
-Hydraulic Arm for easier sewage hose handling;
-Remote control system.

3. Tanker material:

-Optional for carbon steel or stainless steel 304;-Tanker thickness 6~8mm,endplate thickness 8mm and baffle 5mm

Vacuum Sewage Suction truck is optional for another design with water tanker and high pressure flushing and washing device for high pressure sewer cleaning service as follows,

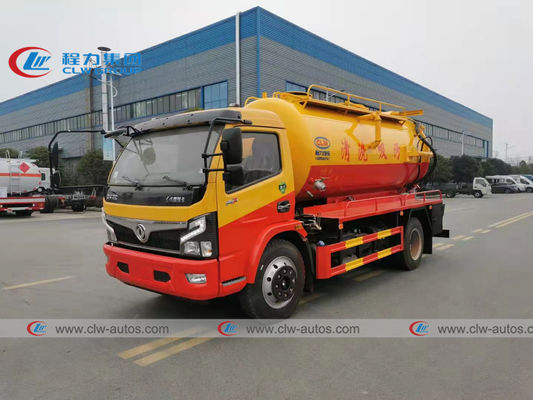

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 0

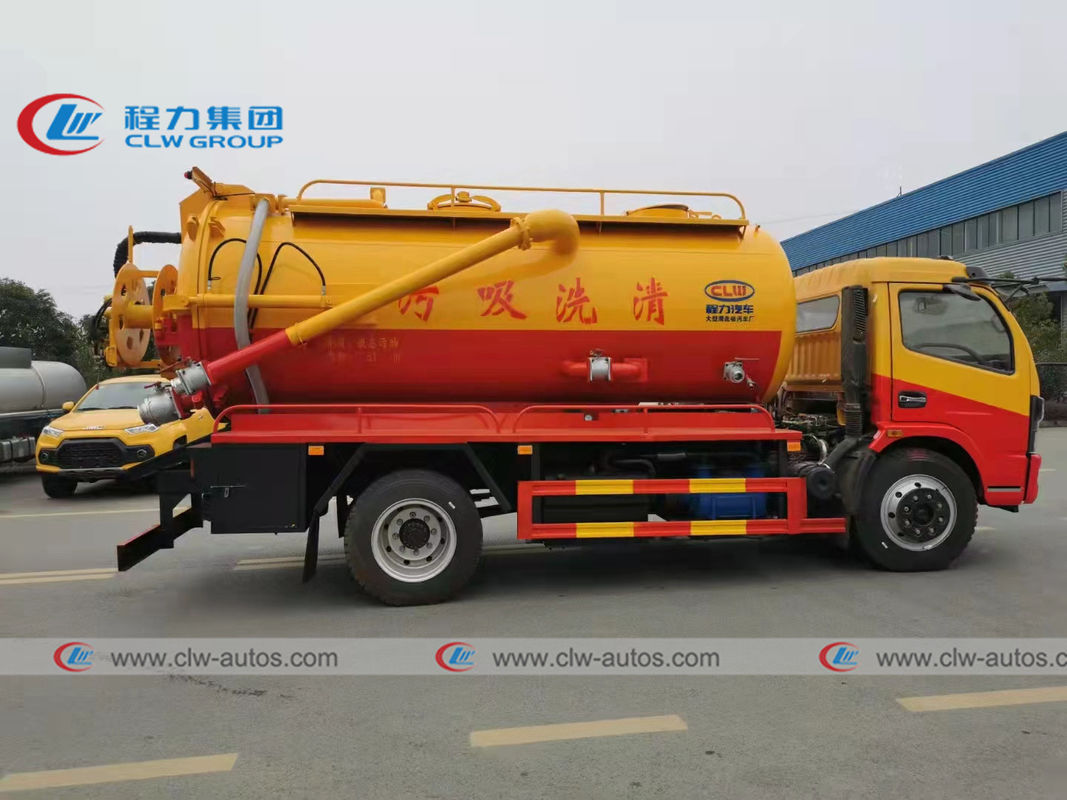

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 1

Specification

cabin	Driving type 4x2,left hand drive
	Dongfeng old type flat cab for 2~3 persons
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		6725X2100X2280
	Wheel base (mm)		3800
	Wheel track (front/rear) (mm)		1900/1860
	Approach/Departure angle(°)		21/19
Weight in KGS	Tare Weight		7495
	payload		5400
	Front axles loading capacity		3600
	Rear axles loading capacity		8000
Max. driving speed(km/h)			90
Engine		Brand	Cummins
		Model	B170 33
		Horse Power(HP)	170
		Emission standard	Euro III
Gearbox		6 forwards & 1 reverse
Tire		9.0020 tires with one spare
Sewage Tank		Tank volume: 10cbm
		Tank material:carbon steel Q235, thickness 6mm
Vacuum Pump		Chinese Yifeng vacuum pump XD-420; Max pressure -0.09Mpa; Suction Rate 116L/S; Speed 950 r/min;
Other device		Four-way valve; Overflow valve; Strainer device; Liquid level indication； Pressure gauge DN100 Sewage Inlet and DN100 Sewage Outlet; 8 meters Sewage Suction Pipe;

Structure of a dongfeng vacuum sewage suction truck

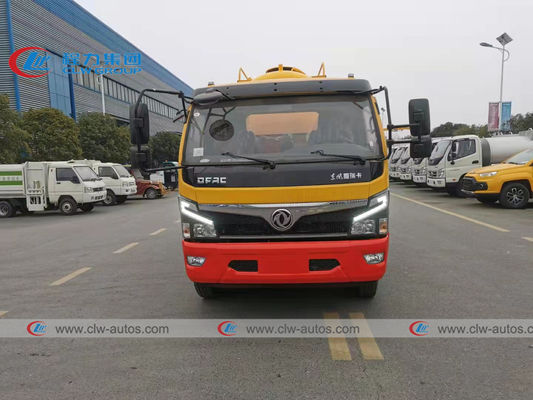

10000 Cbm Sewer Cleaning Truck Dongfeng 170HP Vacuum High Pressure Suction Truck 3

Why do you choose us for vacuum sewage suction truck?

1.well experienced truck production company to offer high quality and competitive-price vacuum sewage suction truck to our worldwide customers.
2.Professional team with international trading experience and strong technical capability to recommend you truck with effective cost;
3.Truck exported to more than 80 countries, such as African market ( Sudan, Angola, Zimbabwe, Liberia, Djibouti, Congo, Kenya, Ghana ect.), Middle East, South Asia and South-America market etc..
4.One Year Guarantee for trucks and spare parts at factory price whenever needed.

5.Timely shipment

6. Overseas training and after sales service is available
