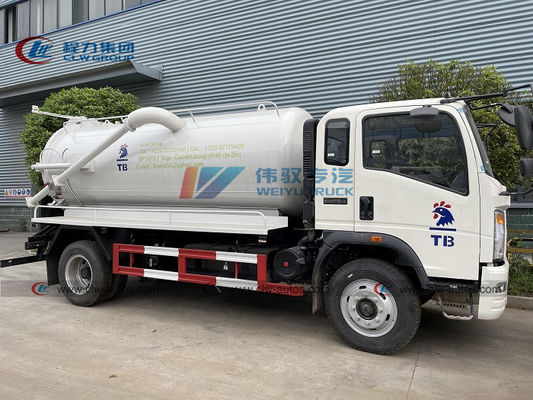

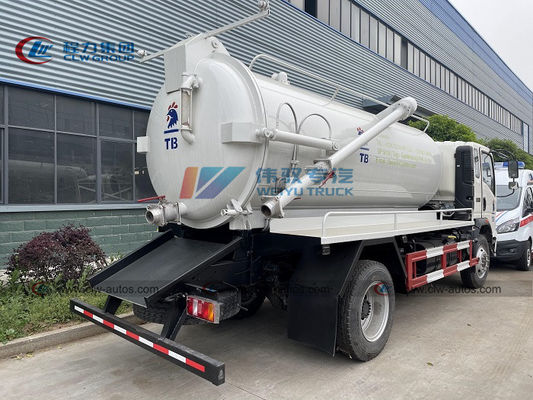

HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck

Büyük resim : HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck

Ürün ayrıntıları:

Menşe yeri:	Suizhou, Çin
Marka adı:	CLW
Sertifika:	CCC,ISO,BV,SGS
Model numarası:	CLW5529YTS

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 Adet
Fiyat:	negotiable
Ambalaj bilgileri:	Çıplak paketleme, Ro-ro, Toplu Gemi
Teslim süresi:	Peşin ödeme alındıktan 30-35 gün sonra
Ödeme koşulları:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Yetenek temini:	Ayda 300 adet

İletişim

Detaylı ürün tanımı

marka:	HOWO,ISUZU,Dongfeng,FOTON,Shacman,FAW,JAC,JMC.	Yakıt:	Dizel
Dingil açıklığı:	3800mm	Tank malzemesi:	Karbon çelik,
Kalınlık:	4 mm	Vakum tankı boyutu:	8.000 litre, 8 metreküp, 8 m3
Deşarj:	Tank gövdesi hidrolik Kaldırma	Vakum pompası:	İsteğe bağlı
Kanalizasyon emme borusu:	8 Metre	Emme süresi:	5 dakikadan az
Garanti:	Bir yıl	Renk ve LOGO:	Özelleştirilmiş
Teslimat süresi:	30 Gün
Vurgulamak:	4x2 Vacuum Sewage Suction Truck , HOWO 8cbm Sewage Suction Truck

HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck

Product Description

The rear door can be opened hydraulically, with the tank lifting function, it is more convenient to dump
Tank material: high-quality carbon steel plate, 8mm thick,
Truck accessories: vacuum oil pump, water and oil separator, anti-overflow valve, multi-way reversing valve, vacuum pressure gauge, sight window or sight pipe
The rear of the tank is 100 ball valve, the sewage suction pipe is 8 meters.
Optional vacuum pump

Complete Vehicle Parameter
Vehicle	HOWO
Overall dimension (mm)	6810×2180×2350
Sewage tank (m3)	8
Gross vehicle weight (kg)	Appro×9890
Curb weight (kg)	Approx2950
Payload (kg)	Appro×6940
Wheel base (mm)	3800
Max speed (km/h)	95
Chassis Parameter
Cabin	Half row cabin, air conditioner, 3 passengers,left hand drive
Drive form	4×2
Engine	Brand: YUNEI 115hp Type: diesel, turbocharged,4 cylinder. Displacement: 3760ml Emission standard: Euro 4
Transmission	6 forward,1 reverse, manual operated
Tire model	8.25R20 12PR
No.of tires	6pcs, with 1pc spare tire
Superstructure Parameter
Characteristic	1. Sewage tank volume 8,000 liter. 2. Sewage tank material is carbon steel,thickness 6mm. 3. Sewage suction pipe 1pcs, length 7m. 4. Hydraulic lifting sewage tank,rear cover can open. 5. Equipped with PTO. 6. Equipped with vacuum pump. 7. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device.
Performance	(1) Vertical suction ≥ 7m. (2) Pumping speed : 45L/s. (3) Intake and exhaust diameter: 50mm. (4) Full tank pumping time ≤ 5min. (5) Sewage tank emptying time ≤ 4min.

Sewage suction truck diagram

HOWO 8cbm 4*2 Vacuum Sewage Suction Truck Vacuum Jetting Truck 0
